DigitaLinx DL-SP | HDMI Surge Protector
Description
Description

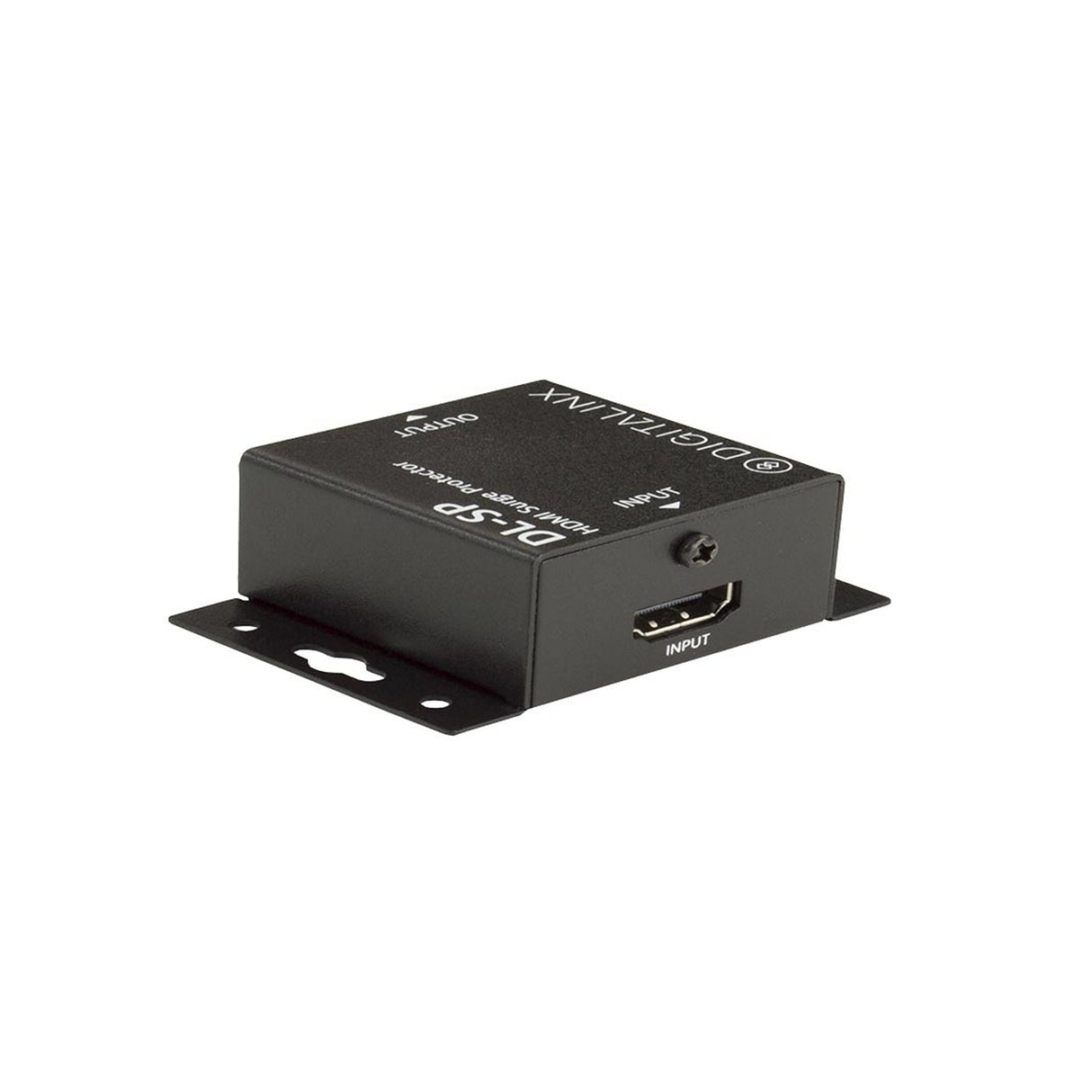

DigitaLinx DL-SP HDMI Surge Protector
The DigitaLinx DL-SP is an HDMI Surge Protector. The DL-SP is an ideal solution designed to protect HDMI devices against electro-static discharge, surges & spikes from mains, or lightning strikes that cause electrical transients up to 15000 Volts (air) and 8000 Volts (contact).
The DL-SP offers 3D, HEC and ARC passthrough from compatible source to sink devices. The DL-SP is active on all HDMI TMDS channels offering lossless signal transmission while performing as the best line of defense against ESD and lightning surge. DL-SP provides hassle-free install with integrated mounting brackets and passive design without requiring a power supply.
Key Features
- Inline surge protector for HDMI cable runs
- Protects the input and output from ESD and lightning surges
- HDMI 1.4 and HDCP compliant
- Meets IEC 61000-4-2, 61000-4-4, and 61000-4-5 surge protection requirements
Technical Specifications
Input Connections
Video Input: One (1) HDMI
Input Connector: 19-pin Type A female HDMI
HDMI Standard: HDMI 1.4 with 3D and HDCP compliant
Input Video Signal: 0.5~1.2 V p-p
Output Connections
Outputs: One (1) HDMI
Output Connector: 19-pin Type A female HDMI
Video Performance
Video Resolution:
VESA: 640x480, 800x600, 1024x768, 1280x1024, 1600x1200, 1920x1080, 1920x1200
HDTV: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
Transmission Distance: 15m/ 49ft max
Supported HDMI Features: HDMI Ethernet Channel (HEC), Audio Return Channel (ARC) passthrough
Chassis and Environmental
Enclosure Dimensions (W x H x D): 65 mm x 46 mm x 25 mm ( 2.6 in x 1.8 in x 1.0 in)
Shipping Weight: (80g) 0.17lbs
Operating Temperature: 0°C to + 45°C (+32° to + 113° F)
Operating Humidity: 10% to 90%, Non-condensing
Storage Temperature: -20°C to + 70°C (-4° to + 140° F)
Storage Humidity: 10% to 90%, Non-condensing
Power and Regulatory
IEC Specifications: IEC 61000-1-2/ 4-2 (ESD) ±15kV (15000 Volts) (Air), ±8kV (8000 Volts) (Contact)
Maximum Spike Protection: ±8kV (8000 Volts)
ESD Protection: ±15 kV (Air-gap discharge), ±8 kV (Contact discharge)
