DigitaLinx  |  SKU: DGTLX-EXTDER-DLUSB2C

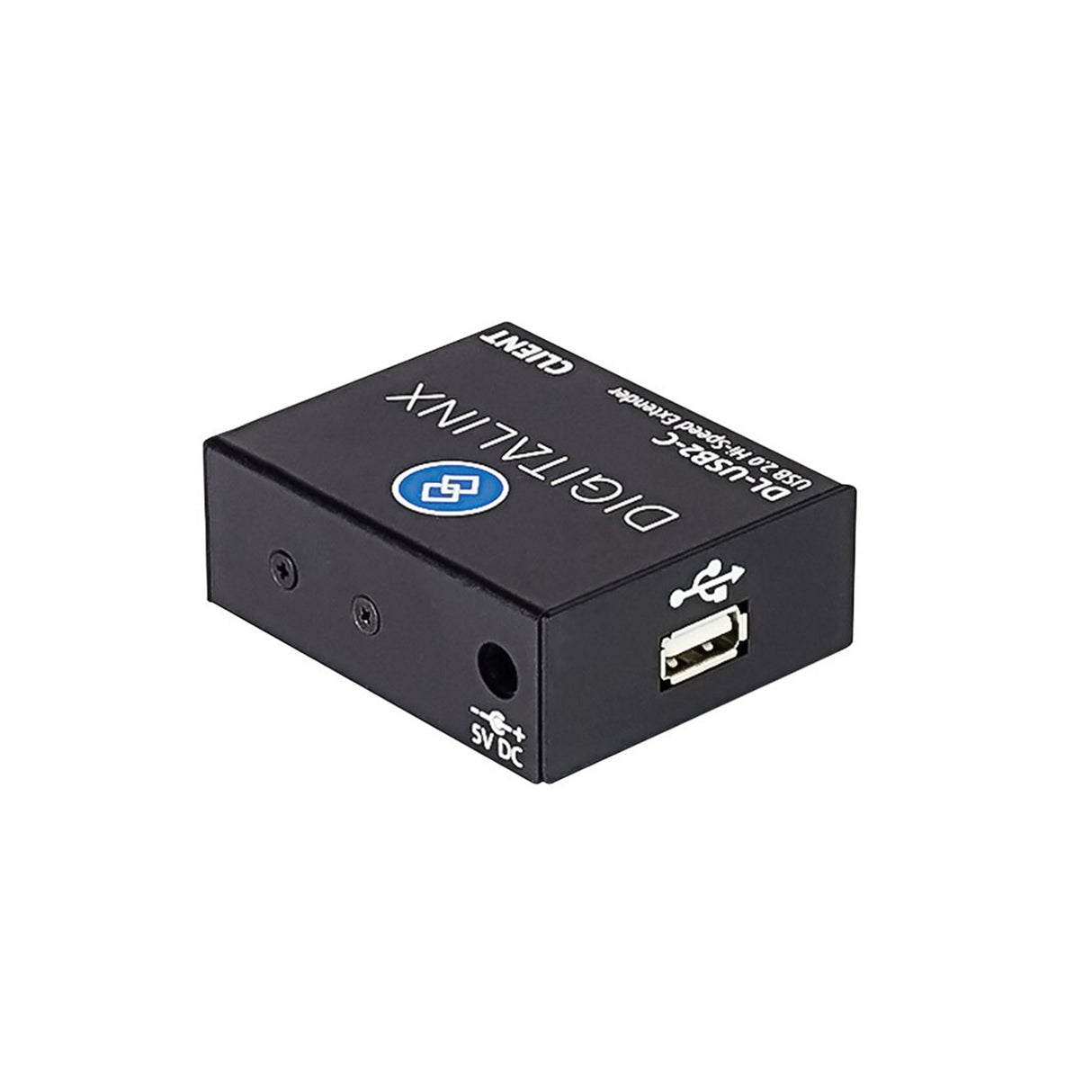

DigitaLinx DL-USB2-C | USB 2.0 Hi Speed Twisted Pair Extender Client

$11394

Condition: New

DigitaLinx DL-USB2-C USB 2.0 Hi Speed Twisted Pair Extender Client

The Digitalinx DL-USB2 products will extend a Hi-Speed USB 2.0 signal (480 Mbps) up to 100 meters (328 feet). The modular extenders may be powered on either end for low power devices such as keyboards or mice. For remote devices which require more power, the client side extender will require to be powered.
Initial offerings in the product line include a modular USB host transmitter (DL-USB2-H), a modular USB client receiver (DL-USB2-C), a wall plate USB host transmitter (DL-USB2-WP-H), and a wall plate USB receiver (DL-USB2-WP-C). All combinations of host and client are compatible with each other.

Key Features

  • Extends USB Hi-Speed (480 Mbps) up to 100 m (330 ft)
  • Powered from client side extender
  • Uses any Cat5e/6/6A twisted pair cabling
  • Supplies 500mA to USB devices
  • Can also be used to extend USB 1.1 signals
  • Extending high-bandwidth USB devices, such as HD webcams
  • Plenum routing of USB signals

Technical Specifications

I/O Connections

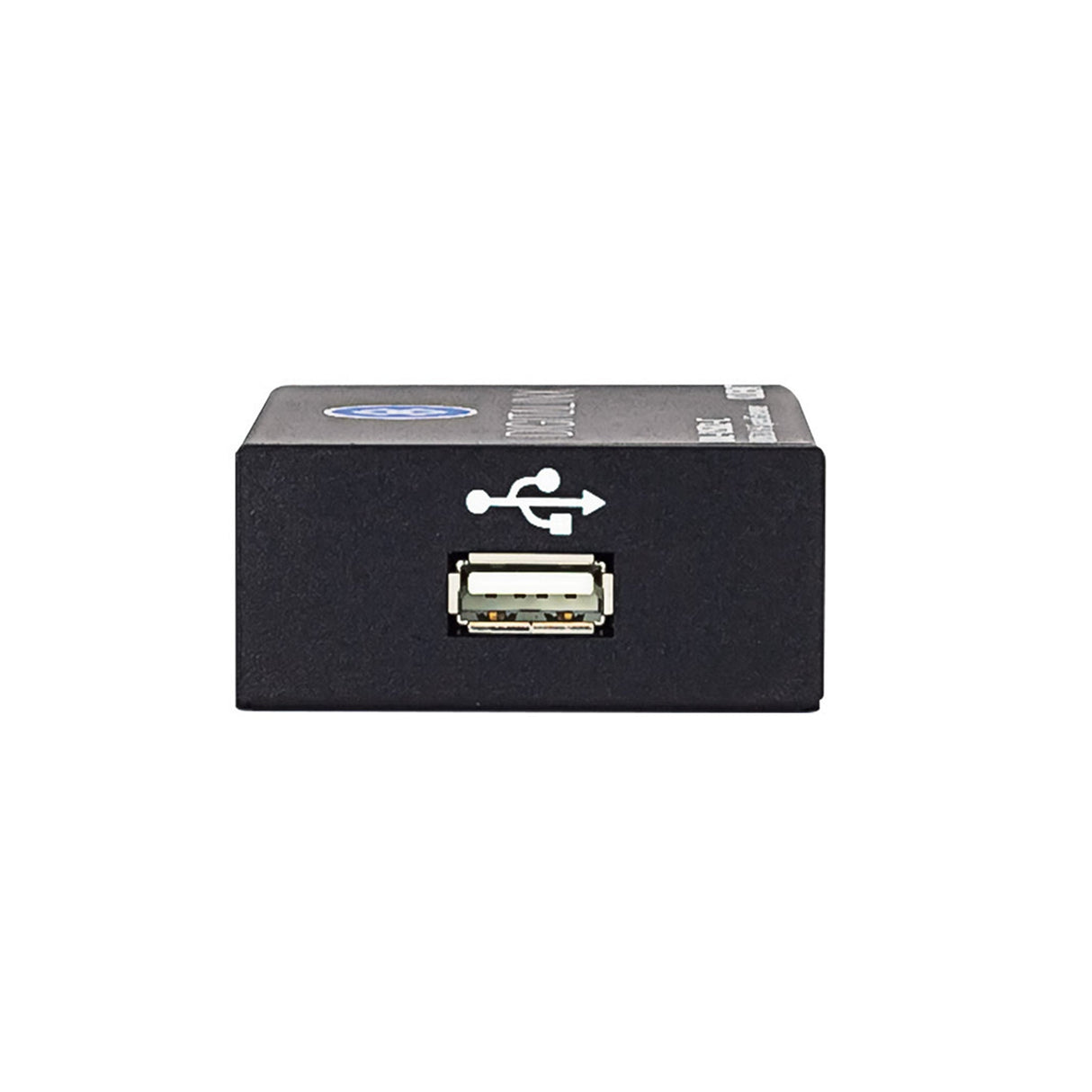

USB : One (1) USB Type A

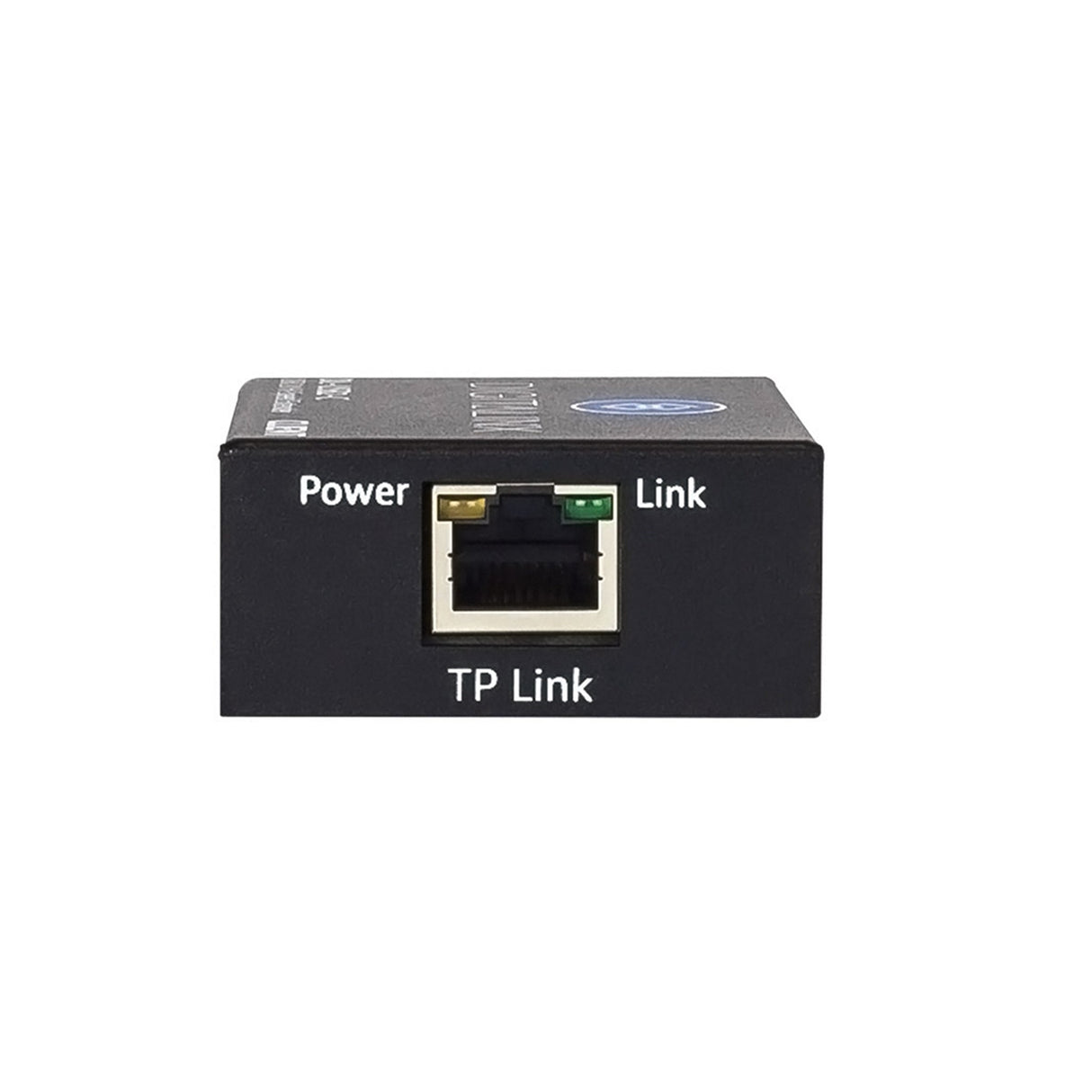

Twisted Pair : One (1) 8P8C port (Shielded RJ45)
5V DC Power : One (1) Barrel (5.5 mm OD; 2.1 mm ID)
Supported Signals
USB 2.0 : Low Speed (1.5 Mbps), Full Speed (12 Mbps), and Hi-Speed (480 Mbps)
USB 1.1 : Low Speed (1.5 Mbps) and Full Speed (12 Mbps)
Extender Characteristics
Maximum Distance : 100 m (328 ft)
Cable Requirements : Category 5e, 6, or 6A with TIA/EIA-568B crimp pattern
Chassis and Environmental
Enclosure : Painted Aluminum
Dimensions : 52 mm x 64 mm x 24 mm (2.05 in x 2.52 in x 0.94 in)
Shipping Weight : 0.3 kg (0.66 lbs)
Operating Temperature : 0° to +40° C (+32° to +104° F)
Operating Humidity : 20% to 90%, Non-condensing
Storage Temperature : -10° to +60° C (+14° to +140° F)
Storage Humidity : 20% to 90%, Non-condensing
Power, ESD, and Regulatory
Power to USB Devices : 500mA
Maximum Power Consumption : 4.3 watts
Power Supply Input : 100V-240VAC / 50-60 Hz
Power Supply Output : 5VDC / 2A
ESD Protection : ±8kV (air-gap discharge), ±4KV (contact discharge)
Extender Regulatory : FCC, CE, RoHS
Power Supply Regulatory : UL, CUL, CE, PSE, GS, RoHS
