DigitaLinx DL-VHD VGA with Audio to HDMI Converter
The DigitaLinx DL-VHD is a VGA to HDMI converter that converts computer video and stereo audio to HDMI. The DL-VHD VGA input supports resolution up to 1920x1200@60Hz along with HDMI output support of HDMI 1.4. The DL-VHD features fixed EDID mode and superior ESD protection. The DL-VHD is a Plug and Play device which allows for a hassle free install.
Key Features
- Stand alone box
- Converts VGA and stereo audio signal to HDMI output
- VGA resolution up to 1920x1200@60Hz
- Support fixed EDID mode
- Support stereo audio input
- Superior ESD protection
Technical Specifications

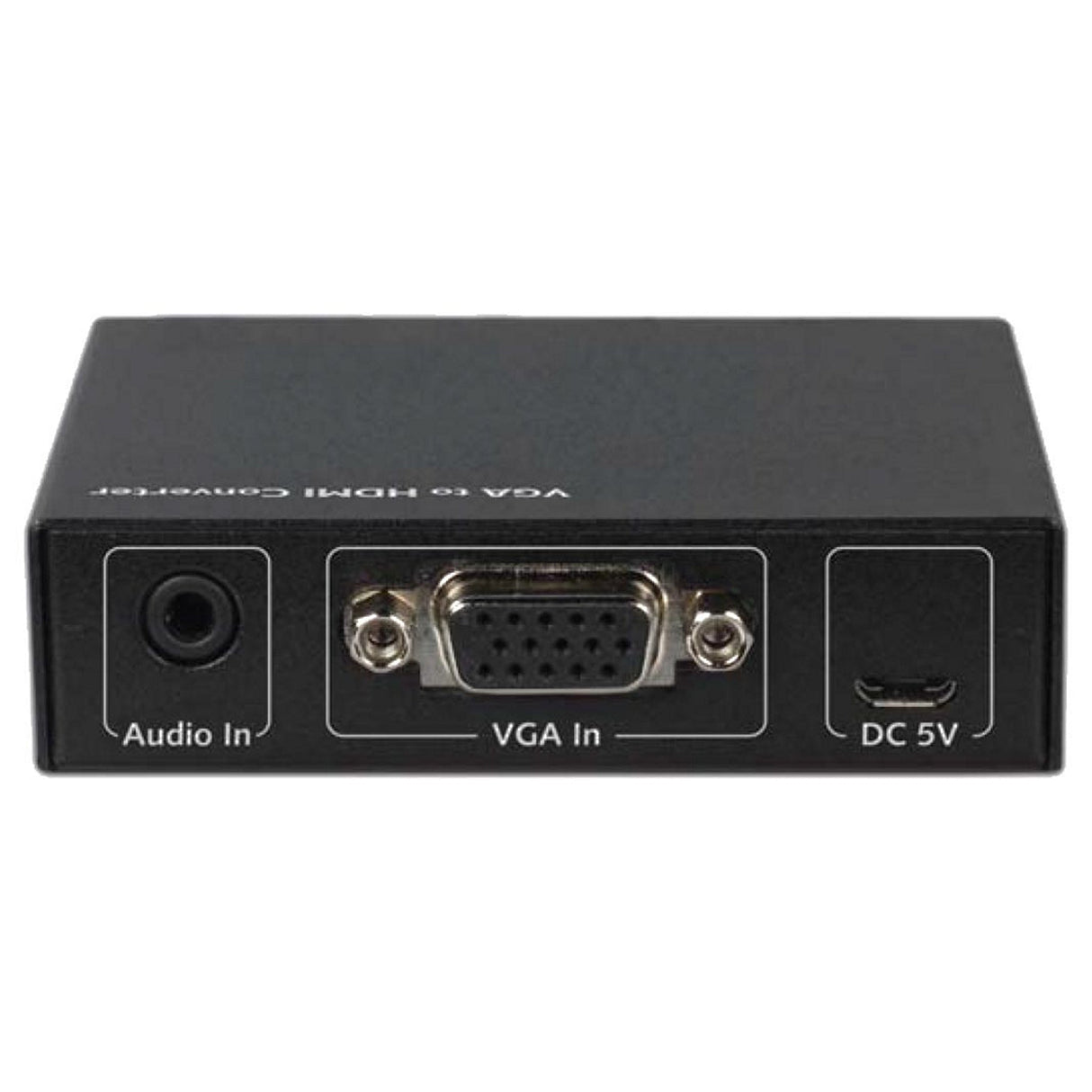

Input Connections
Video Input: One (1) VGA
Audio Input: One (1) Stereo Audio (3.5 mm)
Power Input: One (1) Micro USB Power Supply

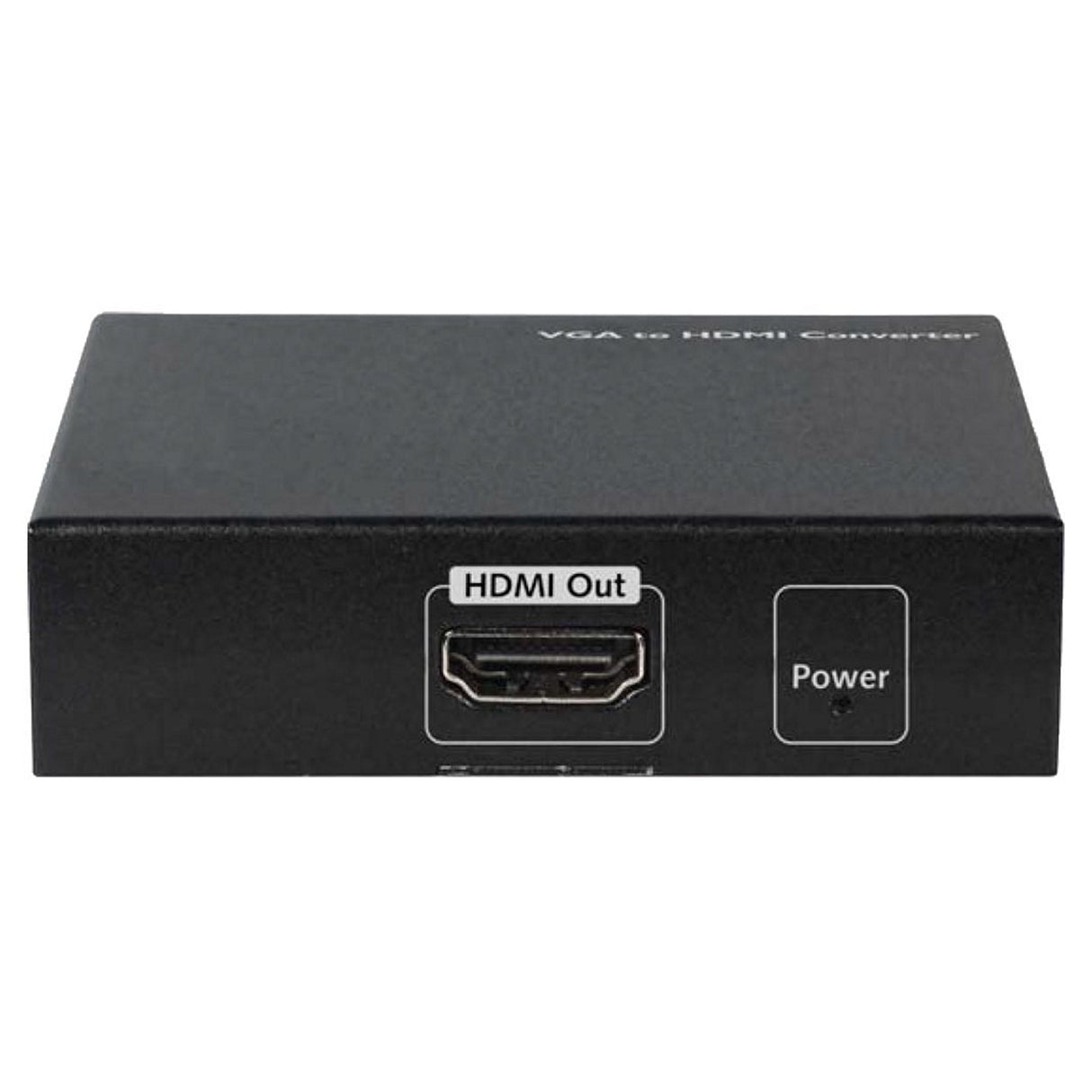

Output Connections
Outputs: One (1) HDMI
Output Connector: 19-pin Type A female HDMI
HDMI Standard: HDMI 1.4
Video Performance
VGA Input Resolution:
1920 x 1200@60Hz 1680 x 1050@60Hz, 1920 x 1080@60Hz, 1440 x 900@60Hz, 1600 x 1200@60Hz, 1366 x 768@60Hz, 1400 x 1050@60Hz, 1280 x 1024@60Hz, 1360 x 768@60Hz, 1280 x 768@60Hz,1280 x 800@60Hz, 1024 x 768@60Hz, 1280 x 720@60Hz, 640 x 480@60Hz, 800 x 600@60Hz,
Chassis and Environmental
Enclosure Dimensions (W x H x D): 19mm x 77mm x 64mm (0.74” x 3.03” x 2.51”)
Weight: 0.28lb (0.13kg)
Operating Temperature: 0°C to + 50°C (+32° to + 122° F)
Storage Humidity: 10% to 90%, Non-condensing
Power and Regulatory
Power Supply Output: 5VDC / 0.5A
Power Consumption: 1.5 watts
