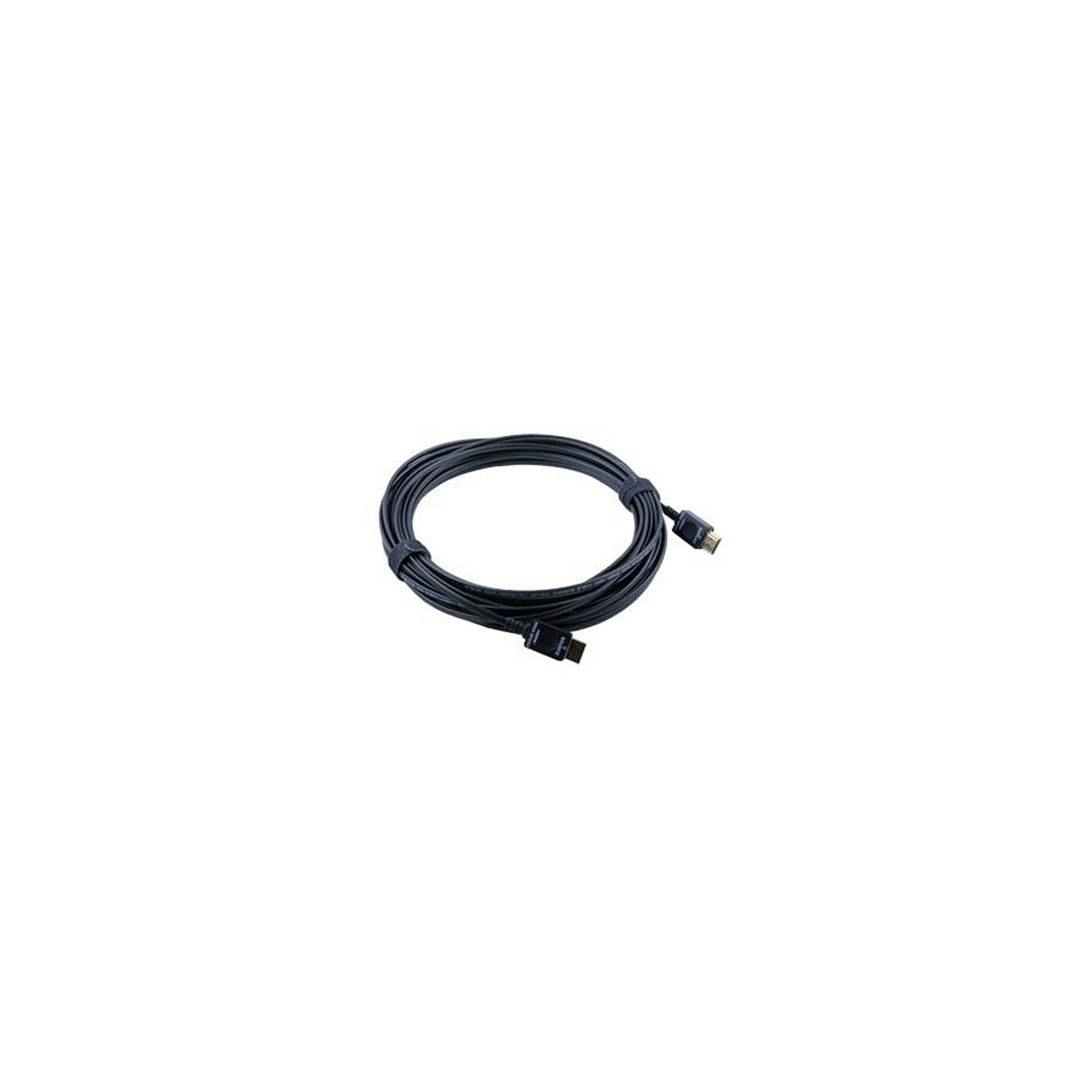

DigitaLinx PF-HDM-M-030M | 100 Foot Liberty Hybrid High Speed HDMI AOC

DigitaLinx PF-HDM-M-030M 100 Foot Liberty Hybrid High Speed HDMI AOC

The PF-HDM-M-**M extends HDCP compliant HDMI signals via an extremely flexible, plenum rated, polymer optical hybrid cable assembly. Utilizing active circuitry in the permanent HDMI connectors, HDMI signals with video resolutions up to 4K@30Hz (10.2Gbps) can be transmitted on fixed length cables ranging from 10 meters up to 30 meters. The HDMI to optical conversion circuits only draw 0.07 watts of power, which is provided by pin 18 of the HDMI ports on the connected devices.
Since this is a hybrid fiber optic cable, the PF-HDM-M is immune to electromagnetic (EM) and radio frequency (RF) interference, which could degrade signal performance, and the signals on the cable will not interfere with other sensitive electronic equipment. The fiber optic cable diameter does not increase with cable length which is not the case with traditional copper HDMI cable solutions. The copper components allow the Hot Plug Detect feature to be used in conjunction with auto functioning switches.
This cable does require power from the HDMI receptacle. If plugged into passive junctions like a pass through HDMI wall plate or panel connector, the associated patch cable on the opposite side must be 2 meters or less in length and of sufficient AWG size. Liberty recommends at least 28 AWG for wall to plate patching. The patching cable must not be active; it must be a passive cable. Longer lengths may cause insufficient power to be available to the PF-HDM-M HDMI connectors.

Key Features

• HDMI "A" male to male connectivity
• Polymer Optical Fiber (POF) for better flexibility
• Ultra-Small diameter cable with reduced sized HDMI heads
• Draws power from pin 18 of the source/display HDMI port
• HDMI High Speed 10.2Gbps 4K@30Hz 3D all Audio formats
• Supports 4K@60Hz with 4:2:0 Chroma Sampling
• Does not support Ethernet or Audio Return
• Lengths: 30 meters
• NEC/CEC rated CMP-OF Plenum, RoHS-2 Compliant

Technical Specifications

I/O Connections
HDMI: Male HDMI Type A connector
Supported Audio and Video
Maximum Video Compatibility: 4K@30Hz 4:4:4 Chroma or 4L@60Hz 4:2:0 Chroma
Video Compliance: HDMI, HDCP, and CEC (Consumer Electronics Control)
Embedded Audio: Up to PCM 8 channel, Dolby Digital TrueHD, and DTS-HD Master Audio
Input DDC Signal: 5.0 volts p-p (TTL)
Input Video Signal: 0.5 to 1.0 volts p-p
Maximum Bandwidth: 10.2 Gbps
Cable Construction
HDMI Hood Material: Molded ABS
HDMI Hood Dimensions: 9.50 mm x 18.7 mm x 26.8 mm (0.373 in. x 0.734 in. x 1.06 in.)
Fiber Jacket Material: Plenum Rated PVC
Cable Construction: Hybrid POF (Plastic Optical Fiber) and Copper
Overall Cable Diameter: 5 mm
Minimum Bend Radius: 5 mm
Maximum Tensile Load: 20 kg (44 lbs.)
Environmental Requirements
Operating Temperature: 0° to +50° C (+32° to +122° F)
Operating Humidity: 20% to 85%, Non-condensing
Storage Temperature: -30° to +50° C (-22° to +122° F)
Storage Humidity: 20% to 85%, Non-condensing
Power and Regulatory
Power Supply: Via HDMI pin 18
Power Consumption: 0.07 watts
Regulatory: NEC rated CMP-OF, CEC rated CMP, RoHS Compliant
