DigitaLinx TDPB-2V1AD-A | Square Dual Table Box
DigitaLinx TDPB-2V1AD-A Square Dual Table Box

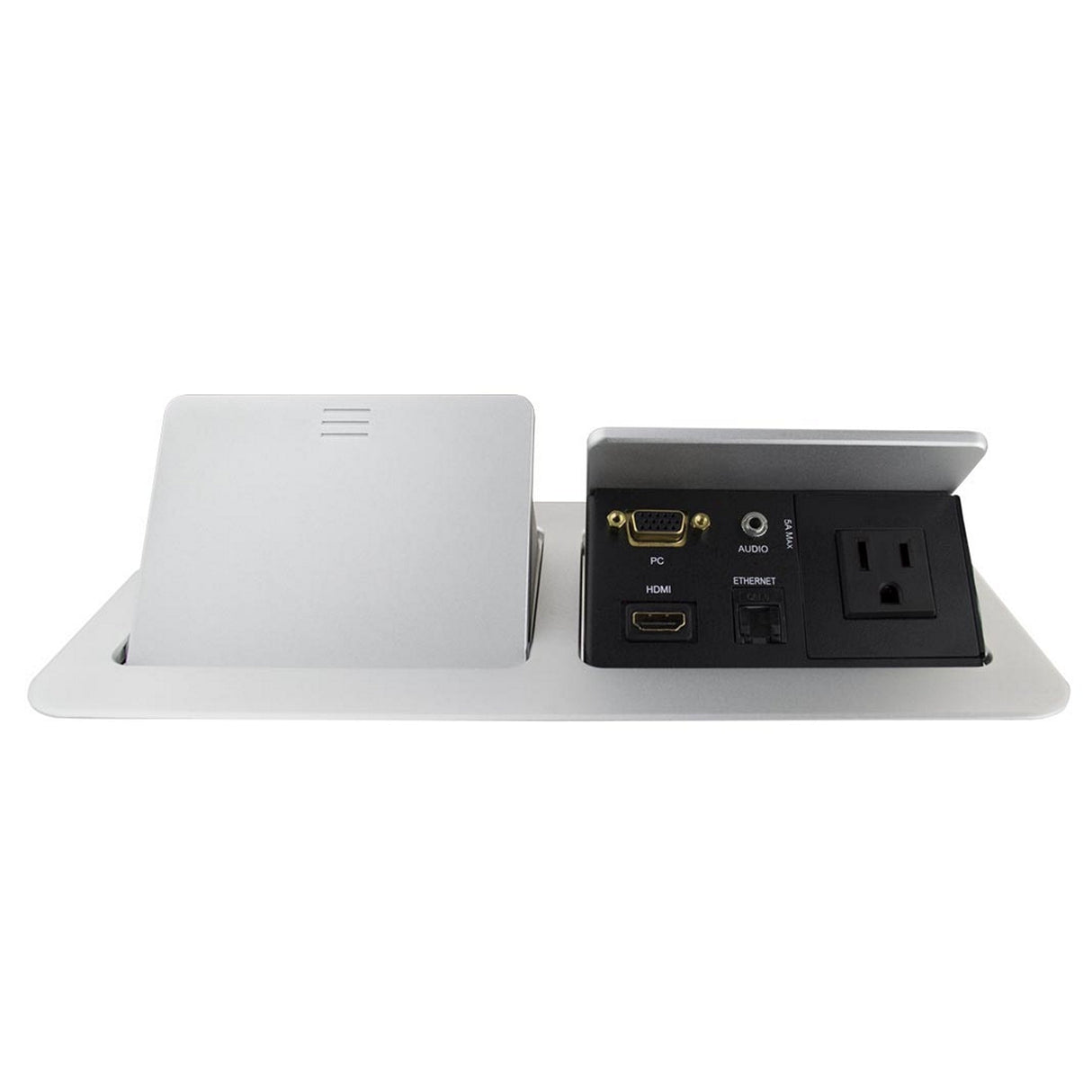

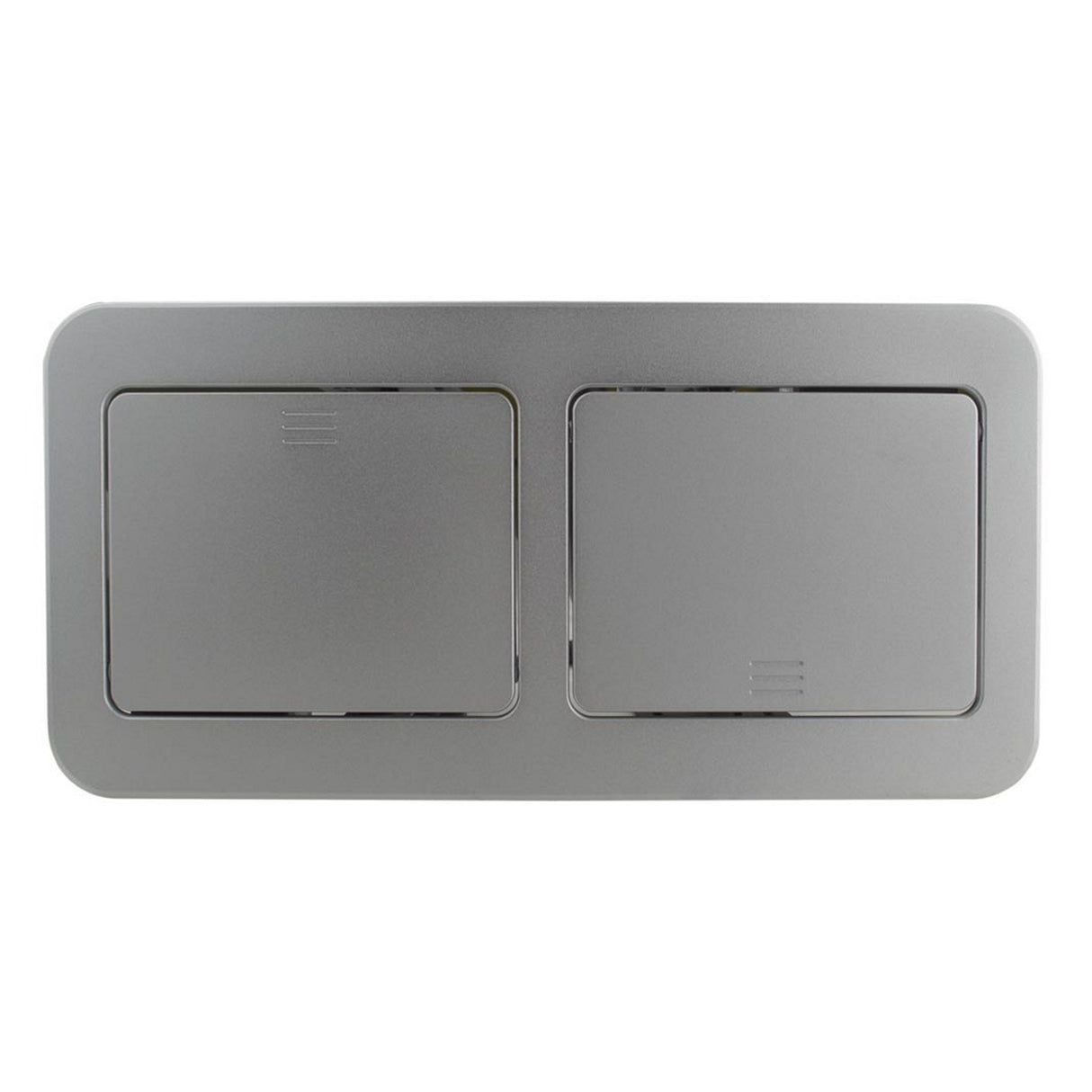

Square Dual Table Box with HDMI, VGA, Audio, LAN and Power
Key Features
- Efficient and Elegant in-Table installation
- Dual format, 2 of everything in 2 openings
- HDMI, VGA, Audio, LAN, and Power in a single entrance
- Easy to install
- Pneumatic Pop-up Lid Feature
- Available in Black or Aluminum
Technical Specifications
PORTS:
2 HDMI connector, 2 Ethernet RJ-45 connector,
2 15-pin HD connector, 2 3.5mm mini jack
POWER SOURCE (AC power limits):
100-125V AC, 50/60Hz, 5A
Maximum 5A per power outlet
FUSE RATING: T 6.3A 250V
OPERATING TEMPERATURE: 0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE: -40° to +70°C (-40° to 158°F)
HUMIDITY: 10% to 90%, RHL non-condensing
DIMENSIONS:
Including the outer rim: 28.5cm x 14.0cm x 16.5cm (11.2" x 5.5" x 6.5") W, D, H
Without the outer rim: 26.5cm x 12.0cm x 16.0 cm (10.4" x 4.7" x 6.3") W, D, H
WEIGHT:
1.64kg (3.6lbs) approx.
1.88kg (4.1lbs) approx. with mounting clamps
2.26kg (5lbs) approx. packed product
ACCESSORIES: Cut out metal template
