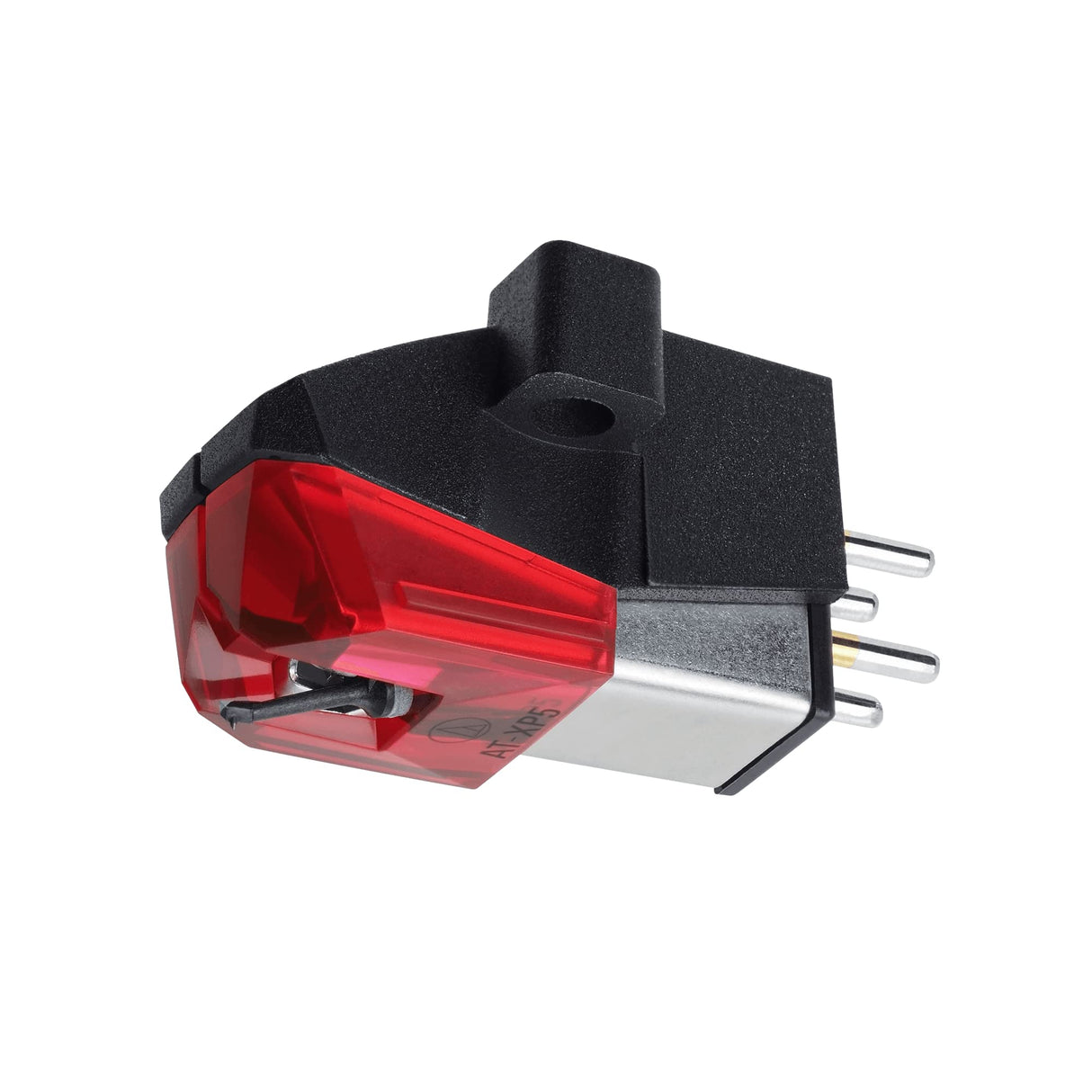

Audio-Technica AT-XP5 DJ Cartridge

Audio-Technica AT-XP5 DJ Cartridge

The Audio-Technica AT-XP5 DJ Cartridge is specifically tailored for the exigent needs of DJs, offering exceptional performance and reliability. This cartridge features a highly-rigid polyphenylene sulfide (PPS) infused with glass fiber, ensuring durability and stability under varied conditions. Ideal for both professional and aspiring DJs, the AT-XP5 provides a robust output level of 5.5 mV and a tracking force range of 2 to 4 grams. The cartridge's 0.3 x 0.7 mil elliptical bonded stylus precisely tracks the record grooves, delivering unparalleled audio clarity and fidelity. Moreover, its design optimizes the visibility of the stylus tip, making it easier for DJs to line up their cue points accurately.

Engineered for superior audio reproduction, the AT-XP5 boasts a carbon fiber-reinforced ABS cantilever and nylon wire suspension, ensuring exact tracking and minimal distortion. The exceptional channel separation and tracking capabilities contribute to the cartridge's high-fidelity sound output, offering an immersive listening experience. With its reliable build and exceptional performance characteristics, the Audio-Technica AT-XP5 DJ Cartridge is the perfect choice for DJs seeking enhanced control and audio quality.

Key Features

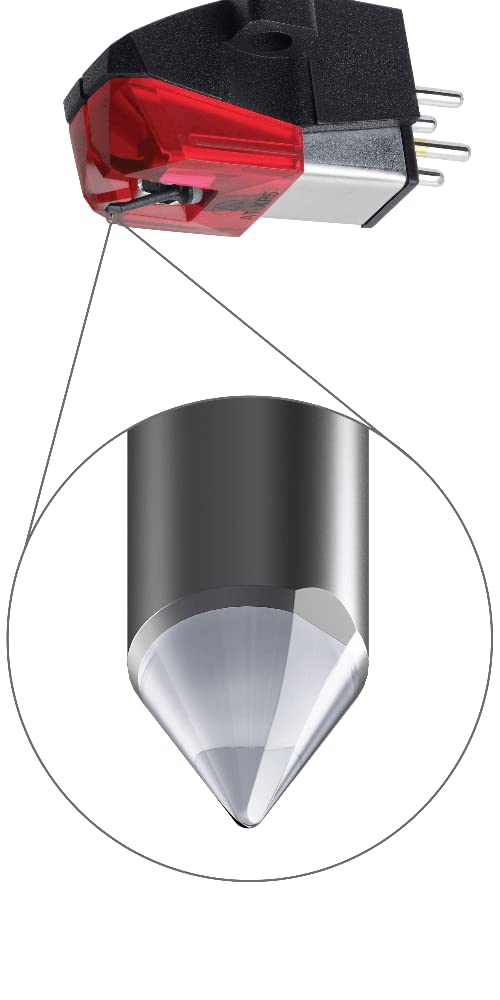

• 0.3 x 0.7 mil elliptical bonded stylus tip
• Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
• 5.5 mV high-level output
• Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
• Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
• Design offers maximum visibility of the stylus tip
• Great tracking and channel separation for high-fidelity sound

Specifications

• Frequency Response: 20-18,000 Hz
• Channel Separation: 20 dB at 1 kHz
• Vertical Tracking Angle: 20°
• Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)
• Stylus Construction: Bonded round shank
• Recommended Load Impedance: 47,000 ohms
• Coil Impedance: 6.7 k ohms (1 kHz)
• DC Resistance: 990 ohms
• Coil Inductance: 1.0 H (1 kHz)
• Recommended load capacitance: 100 to 200 pF
• Output: 5.5 mV (1 kHz, 5 cm/sec.)
• Channel Balance: 2.0 dB (1 kHz)
• Stylus Shape: 0.3 x 0.7 mil elliptical
• Cantilever: Carbon fiber-reinforced ABS
• Mount: Half-inch
• Weight: 6.2 g (0.22 oz)
• Dimensions: 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D
• Replacement Stylus: ATN-XP5

Package Contents

• Audio-Technica AT-XP5 DJ Cartridge
• Stylus Cover
• Installation Screws
