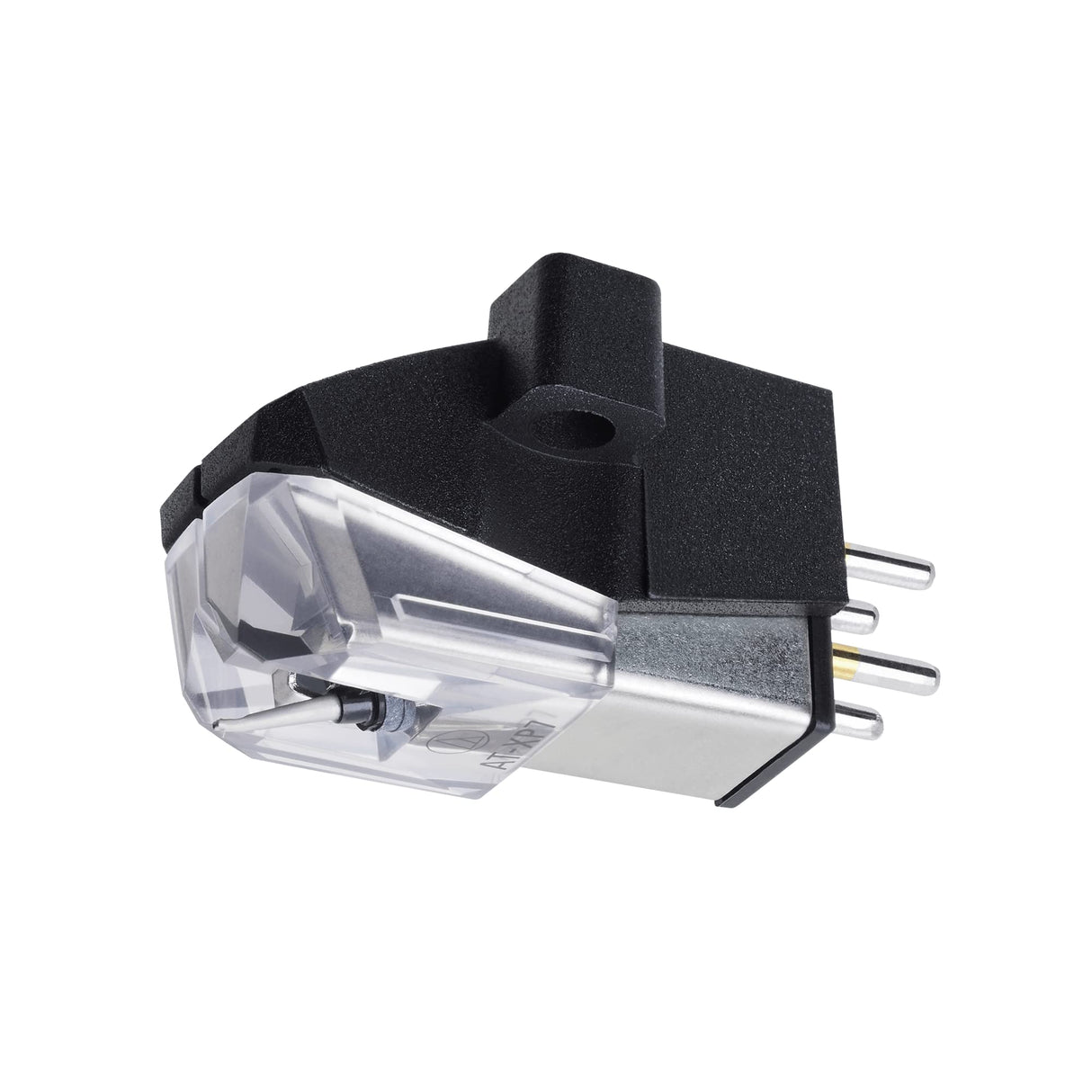

Audio-Technica AT-XP7 DJ Turntable Cartridge
Audio-Technica AT-XP7 DJ Turntable Cartridge
Free Shipping
Audio-Technica AT-XP7 DJ Turntable Cartridge

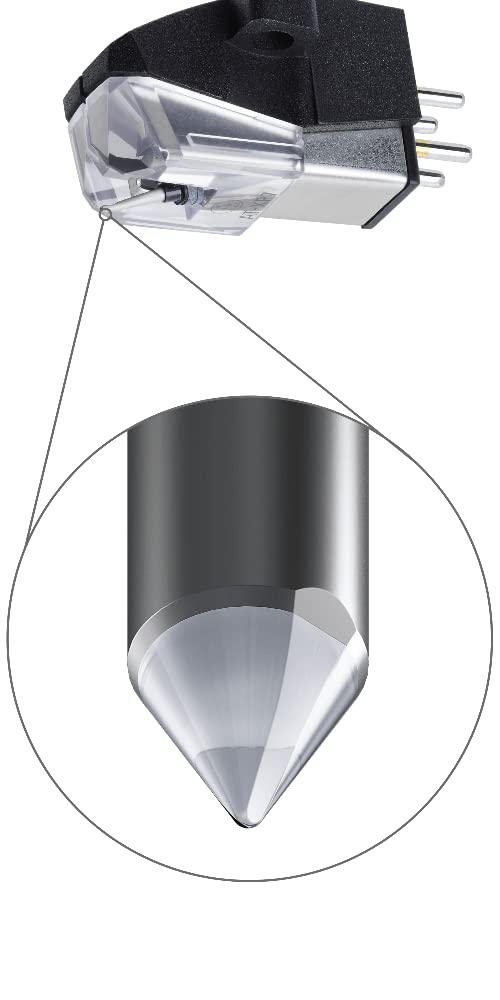

The AT-XP7 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 6.0 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.
Key Features
- 0.3 x 0.7 mil elliptical bonded stylus tip
- Highly-rigid polyphenylene sulfide (PPS)/glass fiber body
- 6.0 mV high-output level
- Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
- Stainless wire suspension, double-layered rubber damper and tapered aluminum cantilever ensure precise tracking
- Design offers maximum visibility of the stylus tip
- Great tracking and channel separation for high-fidelity sound
Technical Specifications
Frequency Response
20-20,000 Hz
Channel Separation
22 (dB at 1 kHz)
Vertical Tracking Angle
20
Vertical Tracking Force
2.0-4.0 g (3.0 g standard)
Stylus Construction
Bonded round shank
Recommended Load Impedance
47,000 ohms
Coil Impedance
6.7 k ohms (1 kHz)
DC Resistance
990 ohms
Coil Inductance
1.0 H (1 kHz)
Recommended load capacitance
100 to 200 pF
Output
6.0 mV (1 kHz, 5 cm/sec.)
Channel Balance
2.0 dB (1 kHz)
Stylus Shape
0.3 x 0.7 mil elliptical
Cantilever
Aluminum tapered pipe
Mount
Half-inch
Weight
6.2 g (0.22 oz)
Dimensions
17.2 mm (0.68") H - 17.8 mm (0.67") W - 28.3 mm (1.20") D
Replacement Stylus
ATN-XP7
