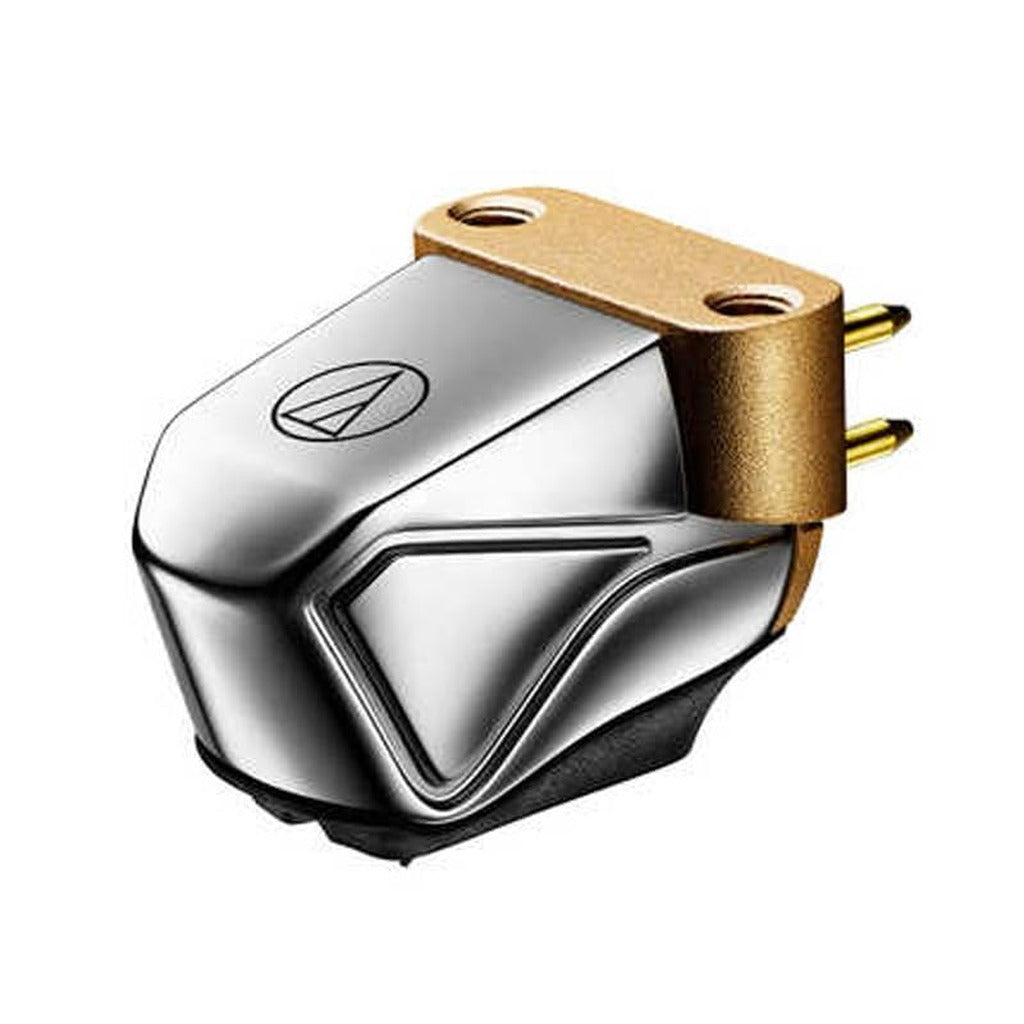

Audio-Technica AT-ART20 Flagship Dual Moving Coil Stereo Cartridge

The Audio-Technica AT-ART20 is the newest cartridge in the flagship ART Series — a statement dual moving coil design that represents Audio-Technica's highest expression of analog playback. Building on the company's high-end magnetic core cartridge heritage, the ART20 was developed to capture the full expressiveness and dynamics of the original recording, delivering rich, authentic sound that preserves everything the mastering engineer put in the groove.

An enhanced magnetic circuit boosts cartridge efficiency, increasing output voltage by over 15 percent without adding coil mass or impedance — more signal with no sonic penalty. A special line contact stylus and solid boron cantilever ensure premium high-frequency response with minimal distortion, while thickly gold-plated terminal pins reduce contact resistance for the purest possible connection. The body combines titanium and aluminum with an elastomer undercover to minimize resonance, and its precision surfaces are finished using advanced cutting and polishing techniques honed in the famed eyeglass industry of Sabae City, Japan. Threaded cartridge mounting holes make installation straightforward.

Specified at 20 Hz to 50,000 Hz frequency response with 30 dB channel separation at 1 kHz, and tracking at 1.6 to 2.0 grams (1.8 g standard), the AT-ART20 is built for the finest tonearms and phono stages. Coil impedance and DC resistance are both 12 ohms, making it an easy match for quality MC phono preamps and step-up transformers.

Features

• Flagship ART Series dual moving coil cartridge with exceptional analog sound reproduction
• Enhanced magnetic circuit raises output voltage by over 15% without increasing coil mass
• Special line contact stylus and solid boron cantilever for premium high-frequency response
• Thickly gold-plated terminal pins reduce contact resistance
• Titanium and aluminum construction with elastomer undercover minimizes resonance
• Precision-finished using Sabae City cutting and polishing craftsmanship
• Threaded mounting holes for easy installation

Technical Specifications

• Model: AT-ART20
• Type: Dual moving coil (MC) stereo cartridge
• Frequency response: 20 to 50,000 Hz
• Channel separation: 30 dB (1 kHz)
• Vertical tracking force: 1.6 to 2.0 g (1.8 g standard)
• Vertical tracking angle: 20 degrees
• Coil impedance: 12 ohms (1 kHz); DC resistance: 12 ohms
• Stylus: Special line contact; Cantilever: Solid boron
• UPC: 4961310156916
