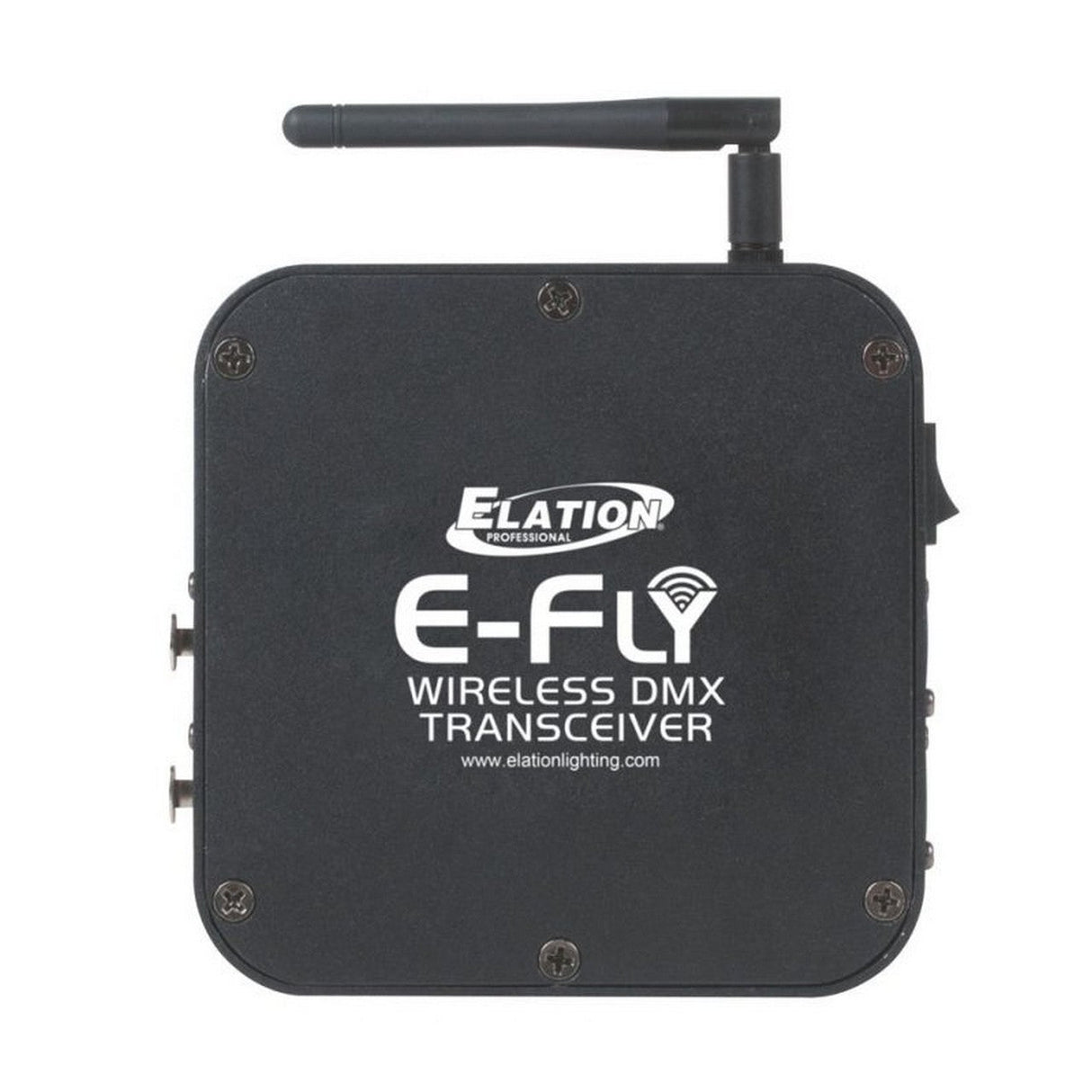

Elation E-Fly Transceiver 2.4 GHz Wireless DMX Transmitter Receiver
The E-FLY Transceiver is a high-powered wireless DMX Transceiver (Transmitter/Receiver in one) that is compatible with other E-FLY and products and includes a rechargeable battery, which provides a solution for remote applications where access to power is a challenge. Connected to a DMX Controller, the E-FLY Transceiver will provide a constant and reliable wireless DMX signal up to 2,500 feet (762m) to other Elation E-FLY products. The 2.4 GHz wireless frequency will coexist in busy RF environments alongside technologies like Bluetooth and Wi-Fi.
Key Features
- Wireless DMX Transmitter/Receiver
- Rechargeable Battery Included
- Wireless Range Up To 2,500 ft
- 2.4 GHz Wireless Frequency
- 3pin and 5pin In/Out
Technical Specifications
Wireless DMX Transceiver (Transmitter/Receiver In One)
Rechargeable Battery Life - Up To 20-25 Hours From a 4 Hour Charge
Battery Life and Signal Strength Indicator Display
Wireless Range Up to 2,500 ft (762m) Open Line of Sight
Transmit To Multiple Receivers On Same Radio Channel
Supports Up To (15) DMX-512 Universes
(15) Radio Channels (1 DMX universe per channel)
Auto Pairing Feature
3pin & 5pin DMX In/Out
Wireless Frequency: 2.4 GHz ISM
CONTROL / CONNECTIONS
Battery Switch
Power Save Button
3pin and 5pin DMX In/Out
12VDC Power Supply Input
SIZE / WEIGHT
Length: 6.0” (152.7mm)
Width: 5.3” (134.4mm)
Vertical Height: 1.6” (62mm)
Weight: 1.3 lbs. (0.6kg)
ELECTRICAL / THERMAL
12VDC, 1A (AC or DC powered)
INCLUDED ITEMS
12VDC Power Supply
Back Panel Magnet for Easy Metal Surface Mounting
Mini Omega Bracket For Clamp/Truss Mounting (Clamp not included)
