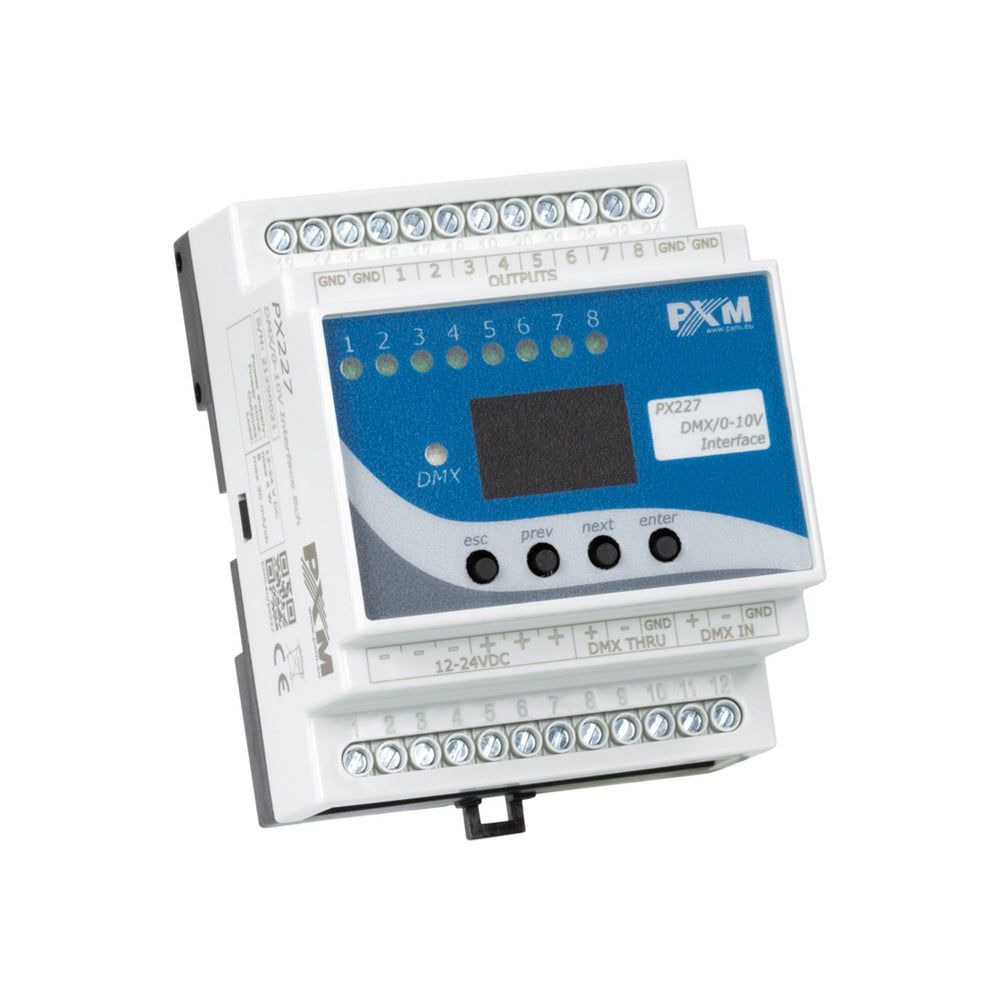

PXM PX227 8-Channel DMX to 0-10V Converter
DMX-512 Demultiplexer - DMX/0-10V Converter
The PX227 is a highly functional device that processes DMX-512 signal for precise control over analog 0-10V. This device can be installed in electrical switchgear DIN rail T35 thanks to its unique housing design.
In addition to simple decoding, the PX227 DMX allows users to select control characteristics and program the unit's reaction to DMX signal loss. The individually programmable parameters enable users to define DMX addresses of 1-512 independently for each channel, and multiple channels can be assigned to a single address.
Key Features
- PX227, a sophisticated DMX-512 Demultiplexer
- Specially designed to process DMX-512 signals for controlling the analog 0-10 V
- Encased in a housing engineered for T35 DIN rail installation in electrical switchgear
- Provides user-friendly decoding PX227 DMX with selectable control features and programmable DMX signal loss response
- Offers individually adjustable parameters for nuanced control
- Each DMX address of 1-512 can be independently defined for every channel, including assigning multiple channels to one address.
Technical Specifications
DMX IN/OUT channels
512/512
0-10V IN/OUT ports
0/8
Output Connectors
screw terminals
0-10v Output Load Capacity
30 mA / channel
Power Supply
12-24V DC
Maximum Current Consumption
250 mA
Dimensions
70 (4 DIN rail modules) x 86 x 60 mm
