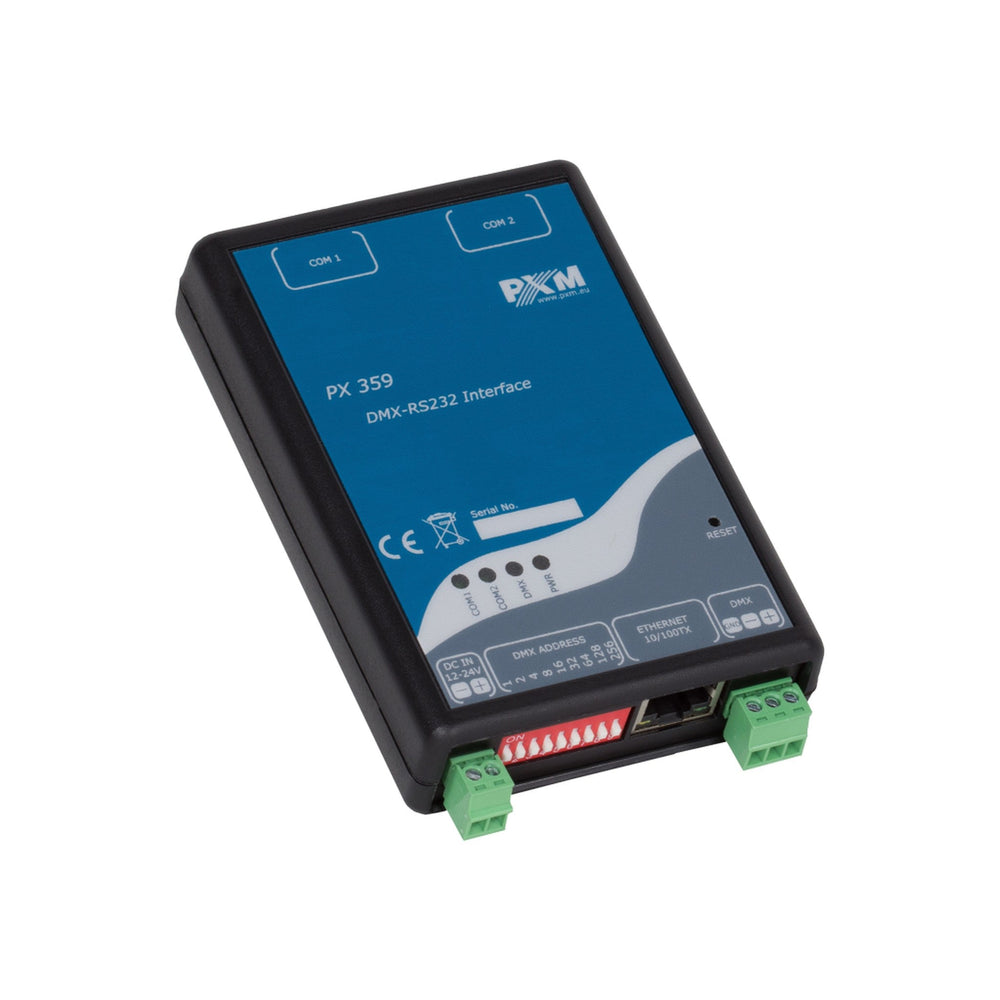

PXM PX359 DMX to 2 RS-232 Line Converter
Introducing the PX359: Your Solution for DMX Signal Conversion
The PX359 is a revolutionary device that efficiently converts DMX signals into the appropriate commands using RS-232. Featuring two independent RS-232 buses, the device can handle a variety of commands. With a convenient web interface, programming the PX359 is a breeze - no additional software or controllers required! Plus, this device supports the RDM protocol, enabling you to set parameters such as IP addresses with ease.
Key Features
- PX359, a highly efficient DMX to RS-232-line converter.
- Expertly converts DMX signals into suitable RS-232 commands.
- Equipped with two independent RS-232 buses for versatile command execution.
- Programming conducted via web interface, eliminating need for additional software or controllers.
- Actively supports the RDM protocol, enabling adjustable parameters like IP address settings.
Technical Specifications
DMX IN/OUT lines
1/0
DMX lines connectors
screw terminals
RS232 IN/OUT
0/2
RS232 lines connectors
D-sub
Power Supply
12 - 24 V DC
Power Consumption
max. 1 W
Power Supply Connector
screw terminals
RDM
yes, ver. 1.0
Supported Browsers
Firefox - 57.0.4
Opera - 50.0
Chrome - 49.0
IE - 10+
Weight
0.12 kg
Dimensions
Width
75 mm
Height
25.5 mm
Depth
111.5 mm
