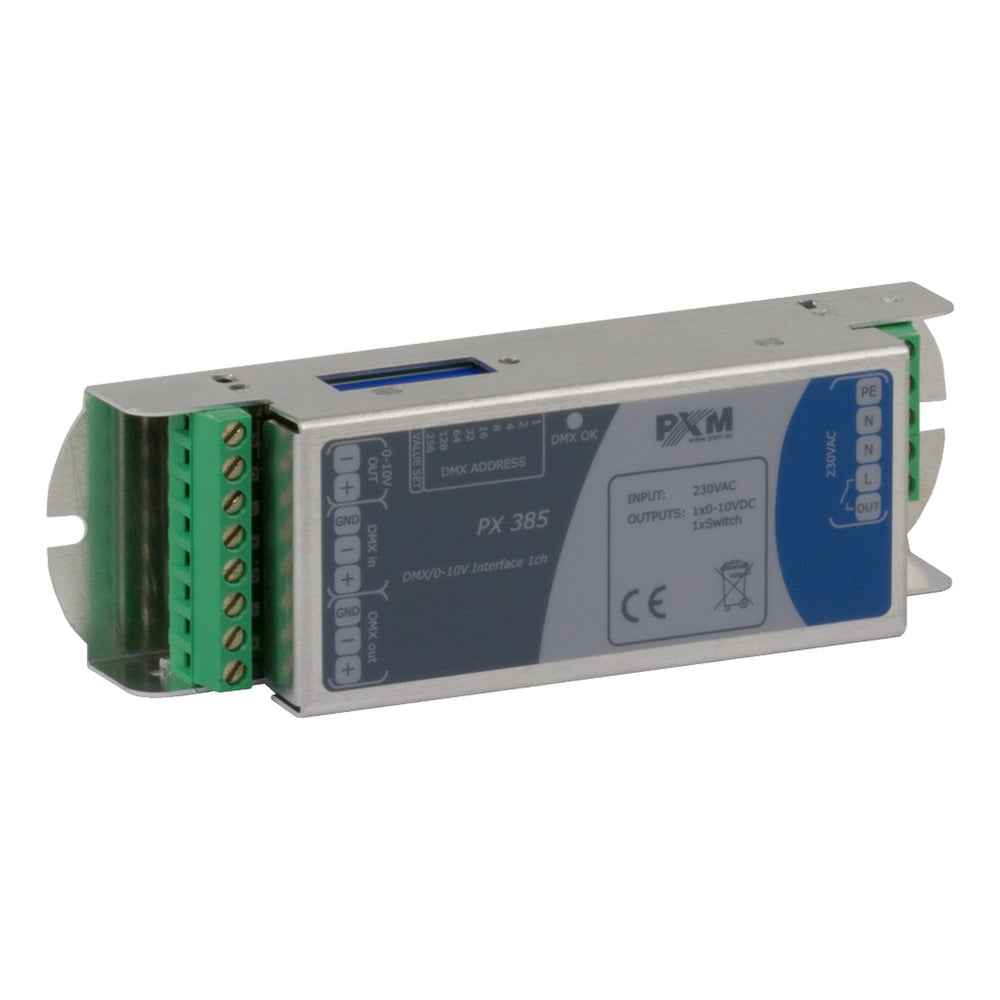

PXM PX385 1-Channel DMX to 0-10V Converter

The PX385 module is a powerful device that processes DMX-512 signals to analog control 0-10V or 1-10V with a relay (Relay Mode). Equipped with a DMX connector and 1 output voltage channel, the DMX/0-10 Interface 1ch can be easily controlled using a DMX signal. The device has a built-in DMX-512 signal receiver, and can operate independently.

To set the DMX address for the device, you can either manually use the DIP switch located on the housing, with the RDM protocol or using the PX277 configurator. If a DMX signal is lost, the user can set the output value. Additionally, the device supports the RDM protocol.

The PX385 module is manufactured in an aluminum housing and powered by 230V AC. It's a highly efficient and effective solution for processing DMX-512 signals.

Key Features

• Expertly processes DMX-512 signal to analogue control ranging between 0 10 V or 1 10 V in Relay Mode.
• Features a DMX connector and single output voltage channel for user-friendly operations.
• Can receive and operate via built-in DMX-512 signal receiver for user convenience.
• Flexible DMX address setting can be manually navigated using the DIP switch, the RDM protocol, or via the PX277 configurator.
• Offers user-set output value, ensuring functionality even when a DMX signal is lost.
• Supports the RDM protocol enhancing its versatility.
• Encased in a durable aluminum housing for extended product lifespan.
• Reliable operation with 230V AC power supply.

Technical Specifications

Output Channels
1
Outputs Load Capacity
analogue 0-10V: max. 10mA
resistive load: max. 2A, 250 V AC
inductive load: max. 0.5A, 250 V AC
Output Connectors
screw terminals
Power Supply
230 V AC
Weight
0.18 kg
Dimensions
Width
44.2 mm
Height
35.5 mm
Depth
143.4 mm
