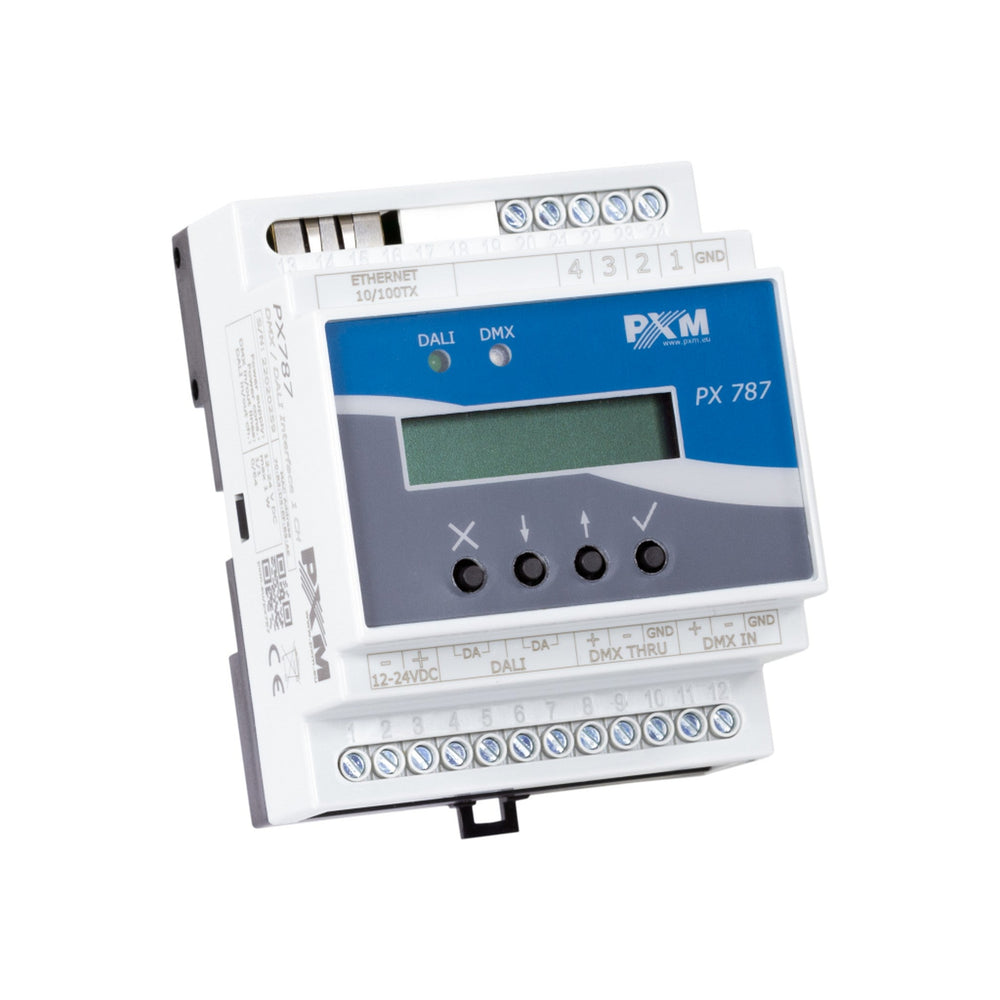

PXM PX787 1-Channel DMX to DALI Converter

PXM | SKU: LEP-PX787
$35849

Free Shipping




Estimated Shipping Widget will be displayed here!


Condition: New

PXM PX787 1-Channel DMX to DALI Converter

Introducing the PX787: A Cutting-Edge DMX-512 Control Signal Converter for DALI Protocol
The DMX / DALI 1ch advanced converter is a game-changer when it comes to combining lighting installations based on the DALI protocol with DMX-512 control systems. With the PX787, it's possible to connect devices working in the DALI protocol to the controller sending the DMX-512 signal. The device features two DMX (in / out) ports, one DALI port, and can connect up to 64 devices in accordance with the DALI standard. Moreover, the converter supports four digital inputs, offering actions such as turning on / off, setting the scene, or adjusting brightness.

DMX / DALI 1ch has been designed for easy installation on a 35mm DIN rail and is powered by a safe 12-24V DC voltage. Please note that the DALI line must have an external power supply to function properly.

Key Features

  • DMX to DALI Converter
  • Functionality: Converts DMX-512 control signals to DALI protocol
  • Capability: Connects devices operating in the DALI protocol to the DMX-512 control system
  • Ports: Equipped with two DMX (in/out) and one DALI capable of connecting up to 64 devices
  • Additional Features: Supports four digital inputs allowing action settings like on/off, scene location, or brightness
  • Design: Housed for 35mm DIN rail mounting, operates on 12 - 24V DC safe voltage
  • Note: DALI line requires external power supply.

Technical Specifications

DMX IN/OUT lines
1 / 1
DALI IN/OUT channels
0 / 64
Power Supply
12 - 24 V DC
Power Consumption
max. 1 W
Weight
0.15 kg
Dimensions
Width
70mm (4 DIN rail modules)
Height
86mm
Depth
60mm
