ADJ RDM XS8 DMX & RDM Data Splitter with Wired Digital Communication Network
ADJ RDM XS8 DMX & RDM Data Splitter with Wired Digital Communic...
Free Shipping

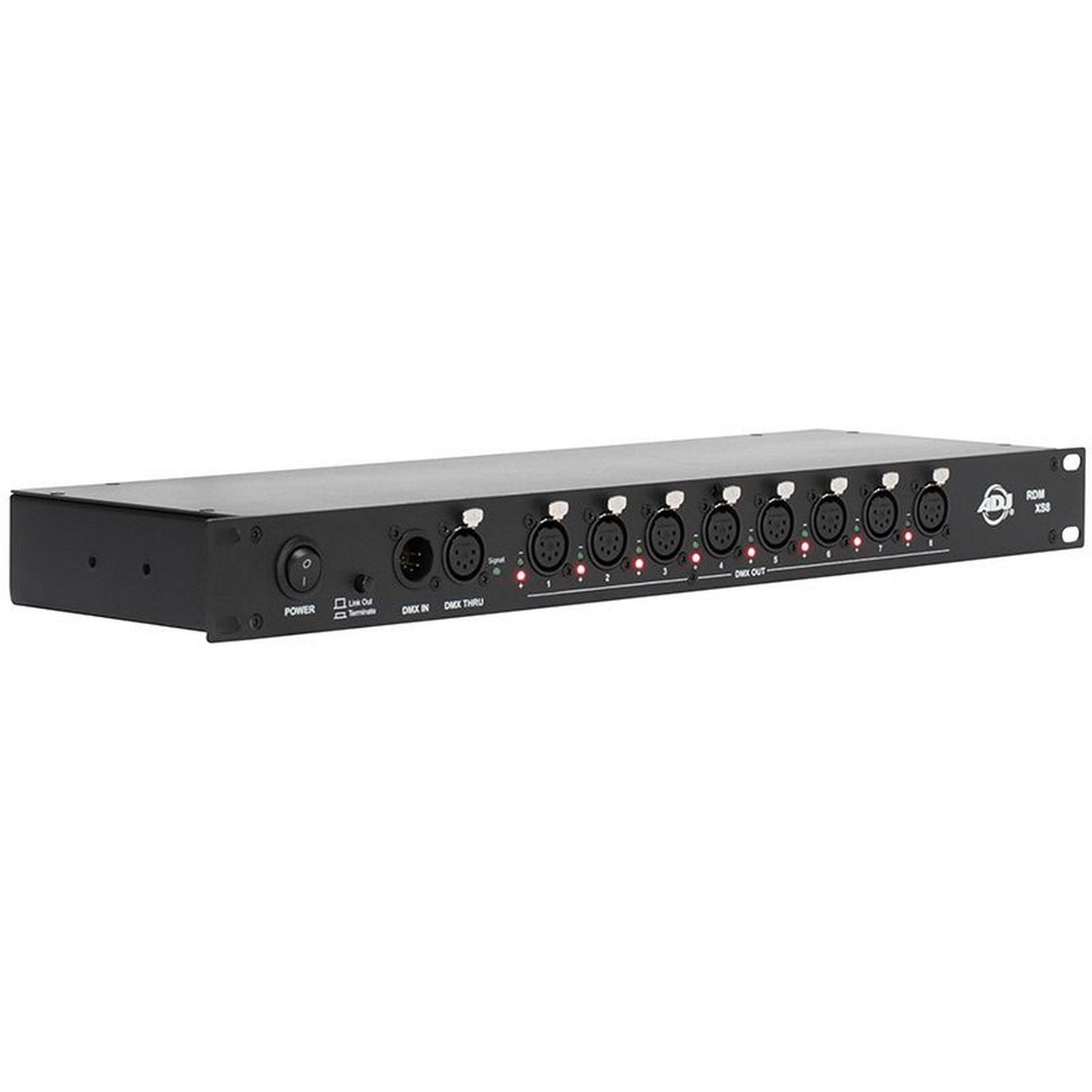

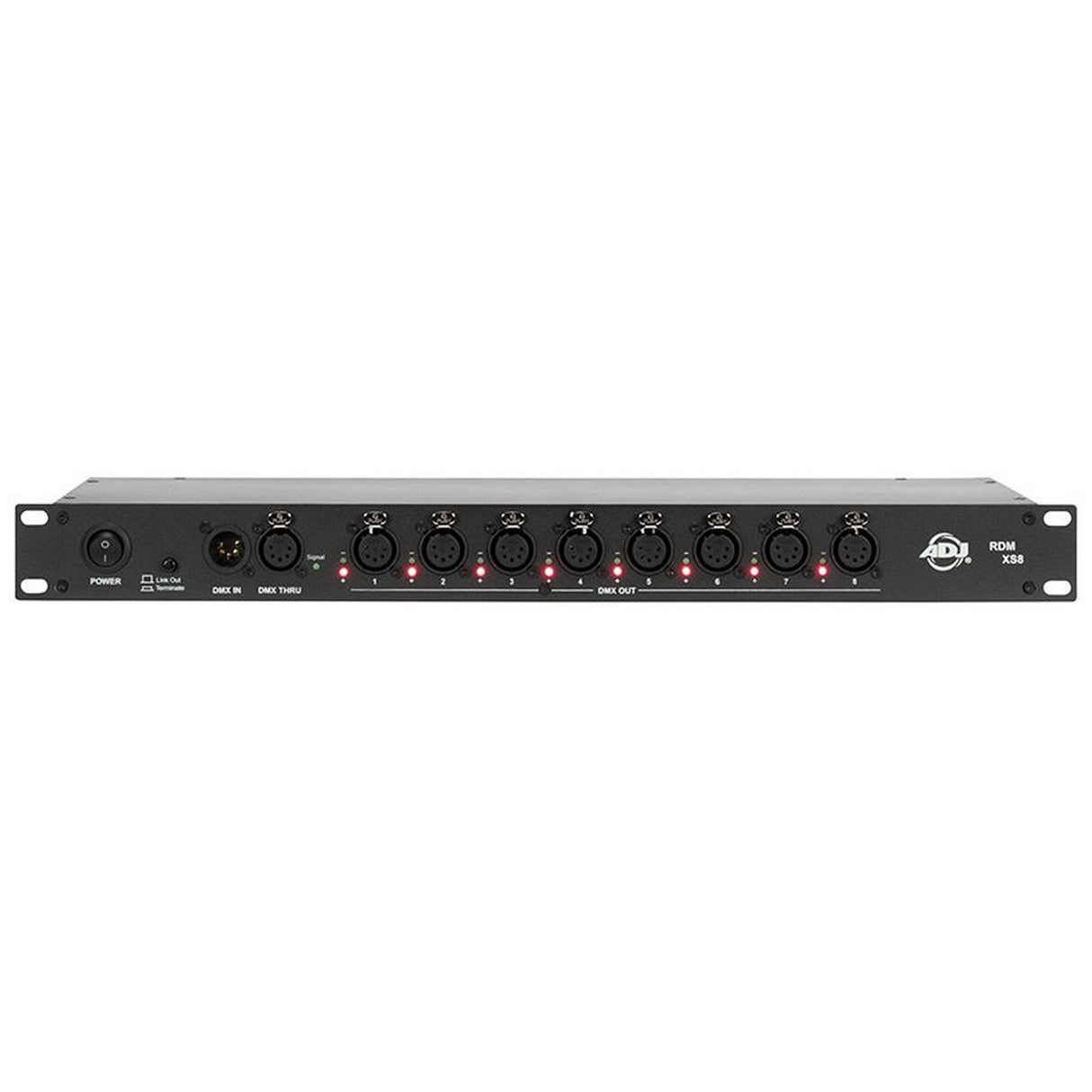

The ADJ RDM XS8 DMX & RDM Data Splitter with Wired Digital Communication Network represents a versatile and compact solution for efficient DMX512 and RDM signal distribution. Engineered for easy integration within lighting systems, this data splitter guarantees a dependable and straightforward installation within a 19-inch rack mount cabinet. Its sleek single-rack design features 1 indoor 5-pin XLR input, 1 indoor 5-pin XLR thru, 8 indoor 5-pin XLR outputs, along with a Link Out Termination Switch and a DMX/RDM Protocol Switch for enhanced functionality.
Technical Specifications
Protocols:
DMX512
RDM
Physical:
19" Rack Mount
1x Indoor 5pin XLR Input
1x Indoor 5pin XLR Thru
8x Indoor 5pin XLR Outputs
Link Out Termination Switch
DMX / RDM Protocol Switch
Dimensions & Weight:
Length: 6" (152.4mm)
Width: 19" (482mm)
Height: 1.73" (44mm)
Weight: 4.87lbs. (2.21kg)
Power:
AC Input: 100-230V 50/60Hz
Power Consumption: 3.1W @ 120V and 3.3W @ 230V
Power Input Protection: Fuse, T1.25A/250 (5.2x20mm)
Thermal:
Ambient Operational Temperature: -4°F to 113°F (-20°C to 45°C)
Humidity: <75%
Storage Temperature: 77°F (25°C)
Certifications & IP Rating:
CE
cETLus (Pending)
FCC
IP20
Specifications subject to change without notice.
