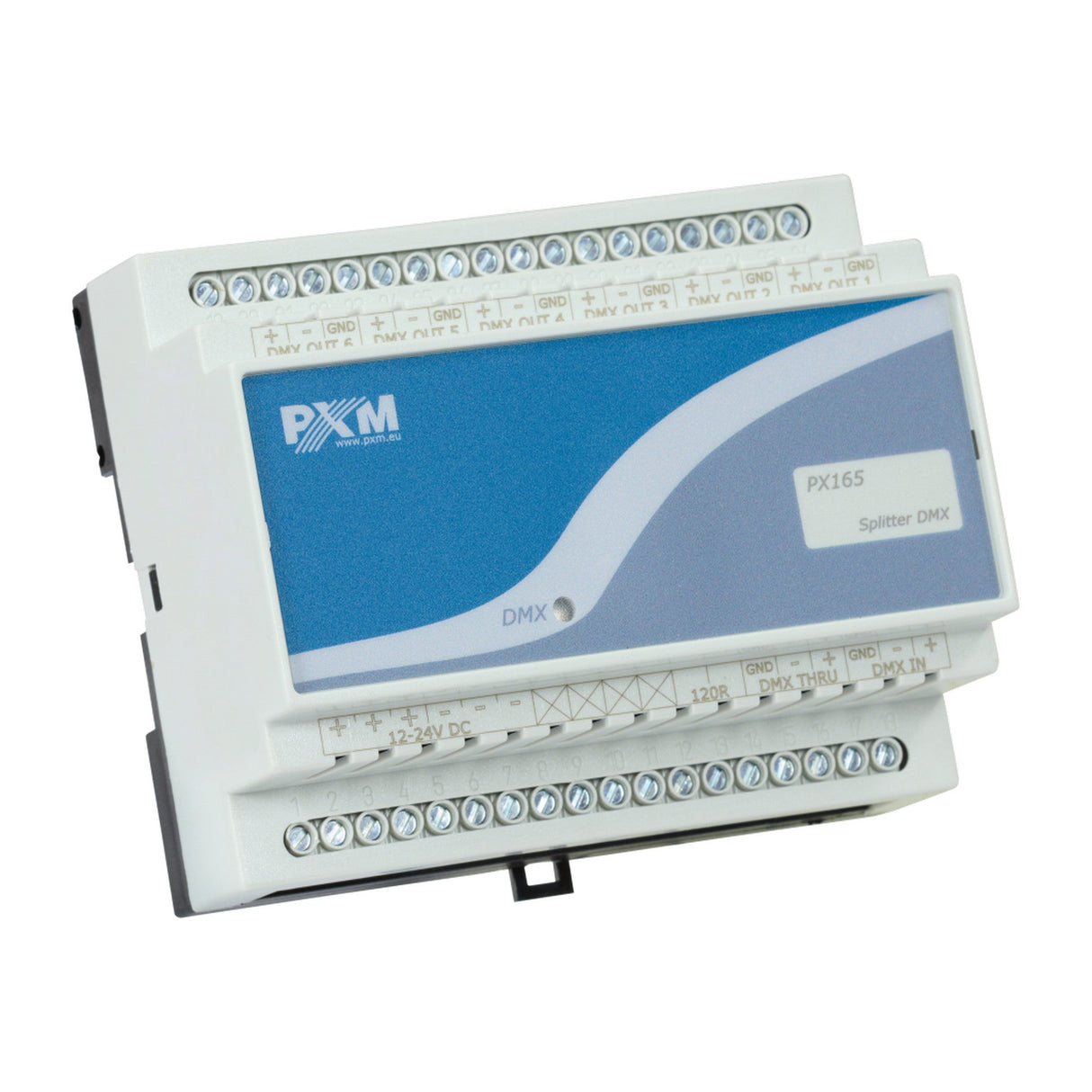

PXM PX165 6-Output DIN T35 DMX Signal Splitter
Maximizing DMX Installations with PX165 Splitter
The PX165 Splitter provides a solution to splitting input DMX signals into six independent control branches for complex installations. The outputs are galvanically and optically separated, and suitably strengthened to ensure smooth operation of the entire installation. It is important to note that the connection of receivers to specific output routes must follow the series chain principle, with a terminator at the end. Installing the Splitter is simple; just connect the power and DMX signal cables. Upon powering on the device, the input DMX signal is safely multiplied to 6 outputs.
Key Features
- The PX165, a professional-grade DMX Splitter
- Features optically isolated DMX input for enhanced data security
- Comes equipped with six optically isolated outputs
- LED on the front panel for a visual indicator of valid DMX signal
- Designed for compatibility with DIN rails mounting
- Structured with advanced, industry-grade specifications.
Technical Specifications
DMX IN/OUT lines
1/6
DMX IN/OUT channels
512/512
DMX lines connectors
clamping screws
Isolation Between Input and Outputs
> 1000 V
Power Supply
12-24 V DC
Power Consumption
max. 7 W
Dimensions
105 (6 DIN rail modules) x 86 x 60 mm
