PXM PX232 1-Channel DMX/Relay Interface
PXM | SKU: LEP-PX232
Loading...
$20154
Free Shipping
Unit price
/
Unavailable
More finance options:
Estimated Shipping Widget will be displayed here!
Enjoy free standard shipping on all orders over $99. Please note that this offer excludes oversized, overweight, special orders, custom products, and items with minimal profitability.
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Orders placed between Monday - Friday before
1:00 PM PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
Description

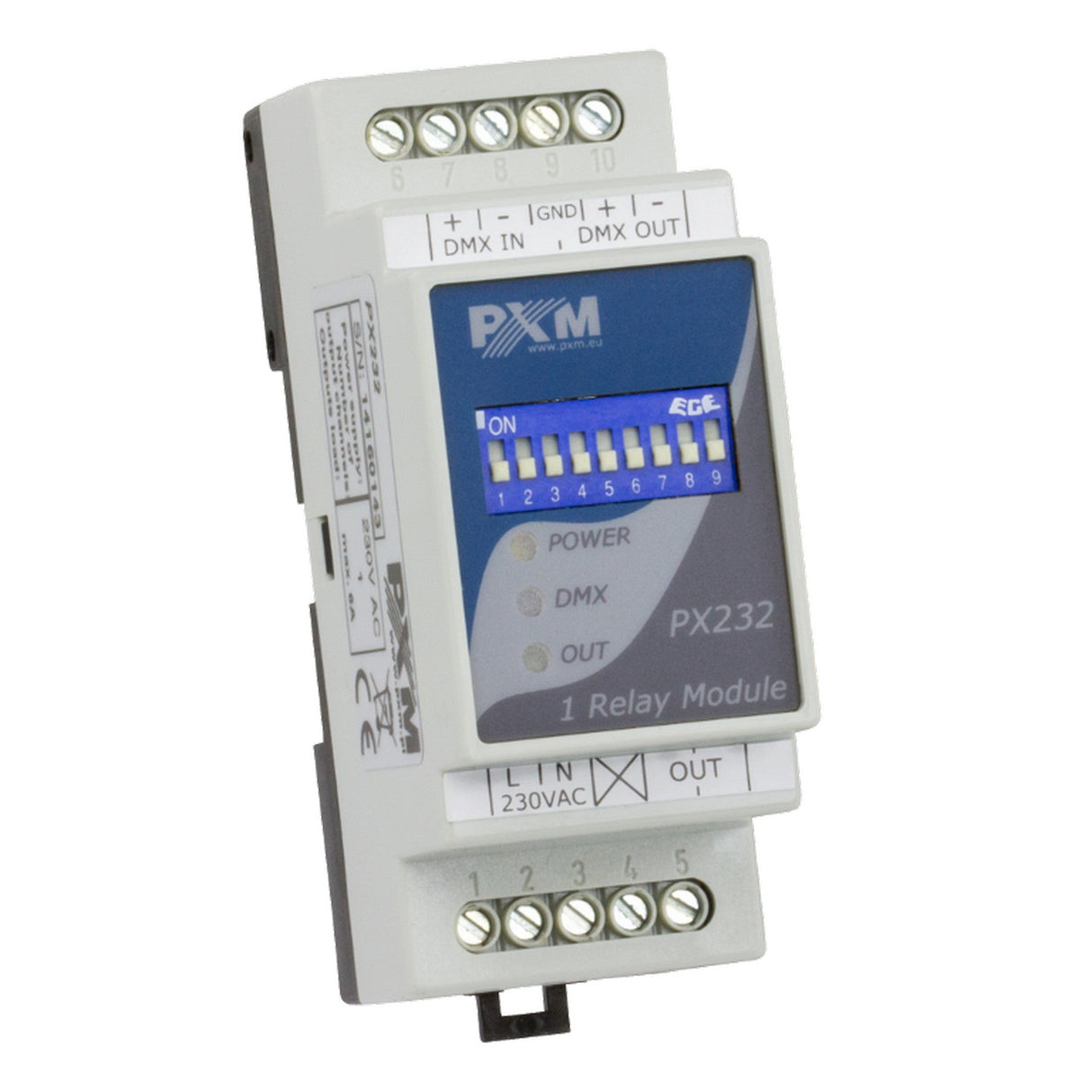

PXM PX232 1-Channel DMX/Relay Interface
The PX232 is a module that efficiently switches between various stage and architectural illuminator effects via DMX-512. Equipped with a built-in hysteresis feature, the device effectively neutralizes relay vibration for smooth operation. Additionally, the device is designed with DMX signal input and output capabilities. The device's compact, 2-module housing is compatible with 35 mm wide DIN rails for easy installation.
Key Features
- PX232, a proficient DMX Relay Module, offers commanding effect switching for stage and architectural illuminators.
- Features a powerful transmitter that exercises precise control over on/off outputs.
- Integral hysteresis eradicates relay vibration further enhancing efficiency.
- Outfitted with DMX signal input and output for superior versatility.
- Occupies a compact 2-module size manufactured housing, designed for simple mounting on 35mm DIN rails.
Technical Specifications
DMX IN/OUT channels
511
Output
1
Outputs Load Capacity
6A, 250V AC / channel
Output Connectors
screw terminal
Power Supply
230V AC
Current Consumption
16mA
Dimensions
35 x 60 x 85 mm
