Description

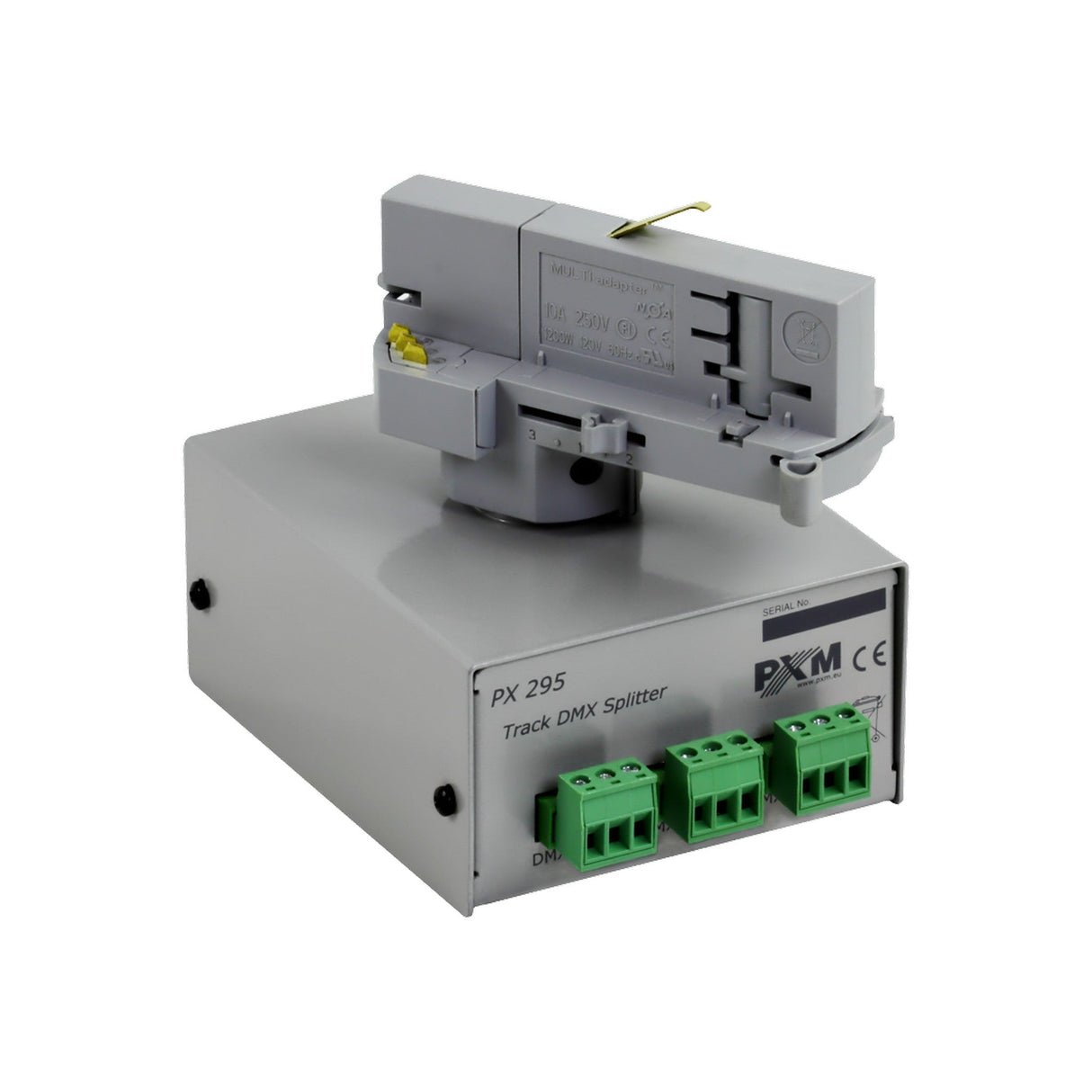

PXM PX295 PxArt DMX Splitter and Amplifier for Busbar
Enhance Your DMX System with a DMX Splitter
Creating complex branching within a DMX system can be challenging, especially when you have a large number of receivers to connect in series. However, with the DMX splitter, you can easily create branching paths. If you're using T-Feed (PY636 and PY637) or X-feed (PY638) modules to create branching tracks, you'll need a PX295 splitter.
The PX295 DMX signal splitter is specifically designed for the GLOBALtrac control system. It enables you to divide the input DMX-512 signal into three separate lines. To prevent any disruption in the GLOBALtrac rail, it's recommended to use a splitter with more than 20 receivers (such as the PX261) on a single DMX line. Each individual track output is galvanically isolated from the input and each other, and accordingly strengthened to ensure the entire system operates correctly.
The splitter comes in a housing with an adapter for easy mounting to the GLOBALtrac control rail. It is powered by 230V and DMX-512 control.
Key Features
- The PX295 is a PxArt DMX Splitter, designed to manage complex DMX systems' branching.
- Facilitates connectivity for a large number of receivers in series.
- Assists in creating track branching when modules T-Feed (PY636 and PY637) or X-feed (PY638) are used.
- Divides input DMX-512 signal into three distinct lines for GLOBALtrac control systems.
- Recommended for systems with over 20 receivers on a single DMX line.
- Assures galvanic isolation of individual track outputs from input and other outputs.
- Provides reinforced signal strength for efficient operation of the entire system.
Technical Specifications
DMX IN/OUT channels
512/512
DMX IN/OUT lines
1/3
DMX lines connectors
terminal blocks
Power Supply
230 V AC (directly from GLOBALtrac control)
Weight
0.5 kg
Dimensions
Width
90 mm
Height
50 mm
Overall Height
106 (with adapter)
Depth
122 mm
