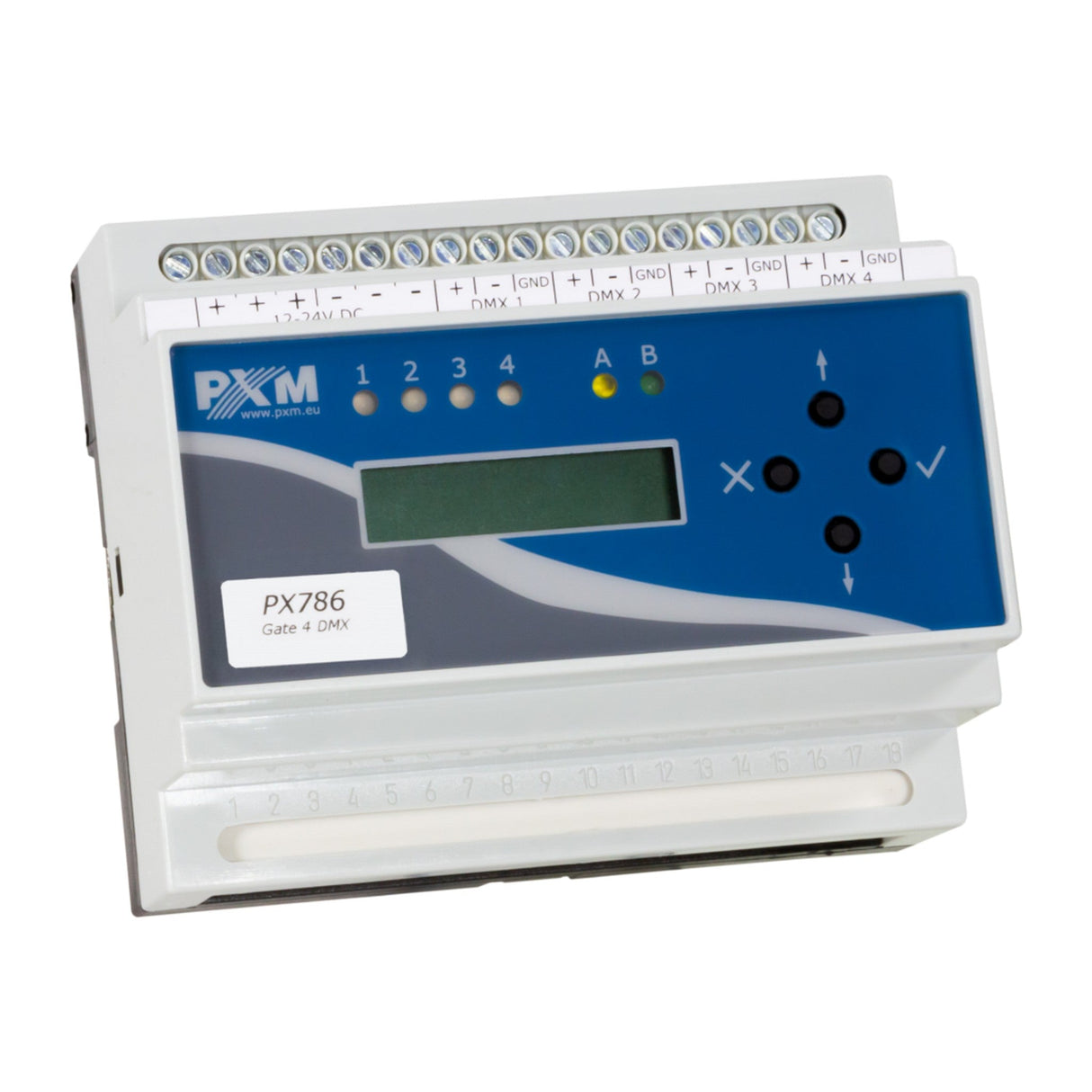

PXM PX786 Gate 4 DMX ArtNet Interface with Display
Gate 4 DMX: A Device for Converting Art-Net Signals
Looking for a device that can convert Art-Net signals to four output DMX512 ports? Look no further than Gate 4 DMX. This powerful device is powered by 12-24V DC and comes protected in a housing designed for a 35mm DIN rail to prevent mechanical damage.
Equipped with an Ethernet interface working in 10/100BaseTX protocol, the protocol version is Art-Net4 (compatible with Art-Net 1-4). The DMX512 ports have optical and galvanic isolation, ensuring reliable data transfer.
The device features six LEDs installed on the housing, with four two-color ones dedicated to data transfer on DMX ports, and two one-color ones providing information about the Art-Net network connection status. Additionally, the gate PX786 has a display and four buttons that allow users to change the configuration, including Art-Net, Ethernet, and DMX settings (such as Brake, MAB, MBF, and the number of DMX channels transmitted).
Key Features
- Art-Net to DMX Conversion: Converts Art-Net signals into four output DMX512 ports
- Power Input: Operated by 12 - 24V DC power source
- DIN Rail Housing: Shielded with a robust 35mm DIN rail housing resisting mechanical damage
- Ethernet Interface: Equipped with 10/100BaseTX protocol Ethernet interface
- Art-Net Compatibility: Compatibility with Art-Net 1 - 4 through Art-Net4 protocol
- DMX Isolation: DMX512 ports offer optical and galvanic isolation
- Status Indicators: Six LEDs on housing signal data transfer and Art-Net network status
- User Interface: User-friendly display and four buttons for convenient configuration changes including Art-Net, Ethernet, and DMX settings (Brake, MAB, MBF, number of transmitted DMX channels)
Technical Specifications
- DMX IN/OUT lines: 0/4
- DMX lines connectors: Screw terminals
- Optically Isolated DMX Line: Yes
- Power Supply: 12 - 24 V DC
- Power Consumption: Max. 4 W
- Weight: 0.2 kg
- Width: 105 mm (6 DIN rail modules)
- Height: 86 mm
- Depth: 60 mm
Use-Case Highlights
- Live Event Production: Ideal for concerts, stage shows, touring rigs, and event lighting systems.
- Architectural Lighting: Reliable ArtNet-to-DMX conversion for permanent lighting installations.
- Broadcast & Studio: Stable DMX networking for studio lighting and production environments.
- System Integrators: Perfect for building scalable, multi-universe lighting control networks.
Package Contents
- PXM PX786 Gate 4 DMX / ArtNet Interface with Display
