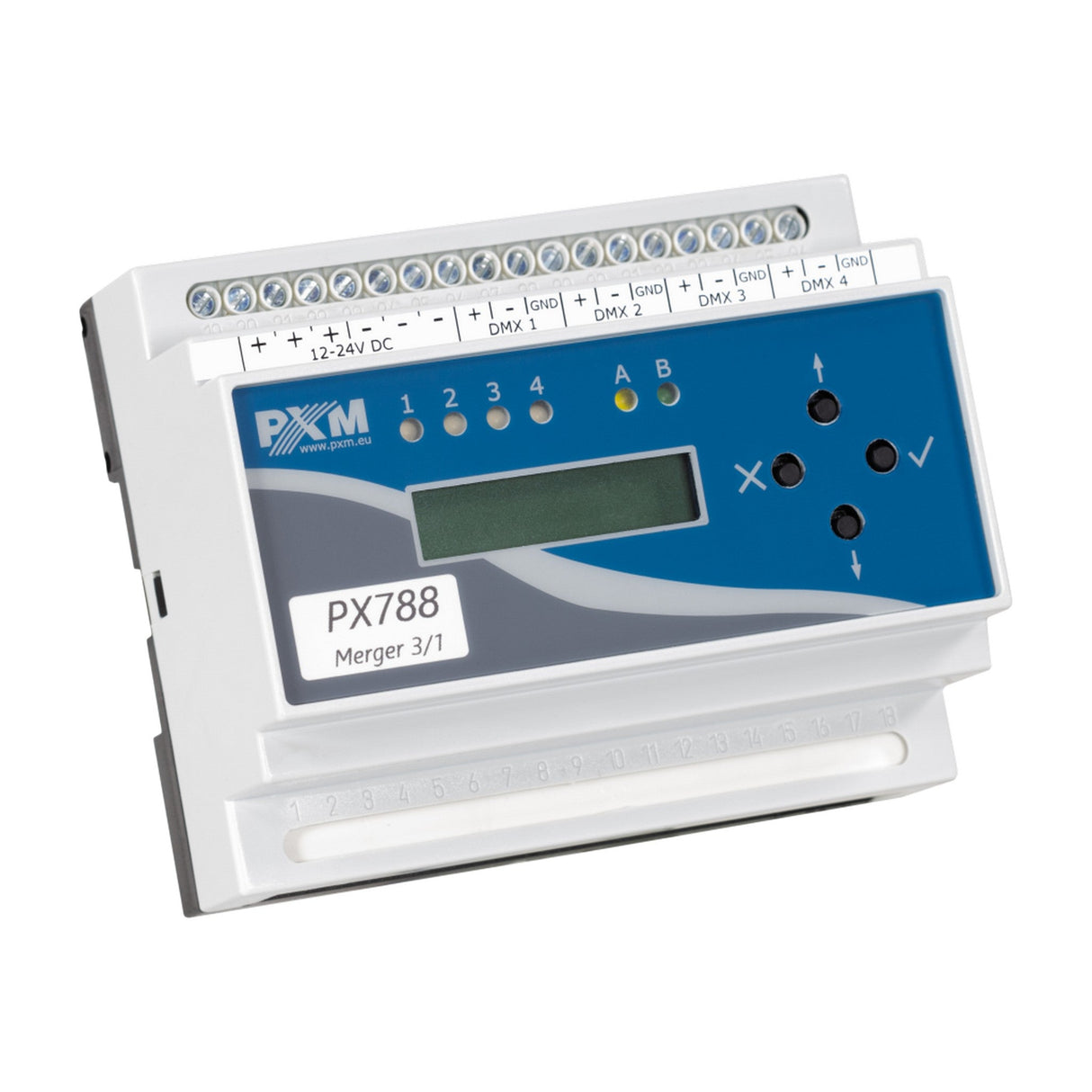

PXM PX788 3/1 DMX Signal Merger

$43518

Condition: New



Description

PXM PX788 3/1 DMX Signal Merger

The Merger DMX 3/1 and PX788 are innovative devices that address the need to consolidate data from multiple controllers in a single DMX output. The PX788 allows you to combine signals from different sources and select one of six “mixing” modes to send to a single DMX output. You can control the PX788 using the built-in buttons and screen or via the device's web server. The Merger DMX 3/1 is designed to be mounted on a 35mm DIN rail and powered by 12-24V DC voltage, providing a safe and convenient solution for installations that require several controllers.

Key Features

  • The PX788 is a high-performance DMX Line Merger primarily designed for multi-controller installations which require the merging of outputs.
  • It effectively adds and amalgamates DMX signals from various devices.
  • Equipped with 6 selectable 'mixing' modes for versatility, it funnels all signals into a single DMX output.
  • Settings can be conveniently managed via casing buttons, the built-in screen, or through the integrated Web Server.
  • The compact design makes it suitable for 35mm DIN rail mounting.
  • For enhanced safety, the PX788 operates at a voltage range of 12 - 24V DC.

Technical Specifications

DMX IN/OUT lines
2 / 2 or 3 / 1
Power Consumption
max. 3W
Output Connectors
screw terminals
Power Supply
12 - 24 V DC
Weight
0.15 kg
Dimensions
Width
105 mm (6 DIN rail modules)
Height
86 mm
Depth
60 mm
