Visual Productions  |  SKU: VISU-RDMSPLITTERT

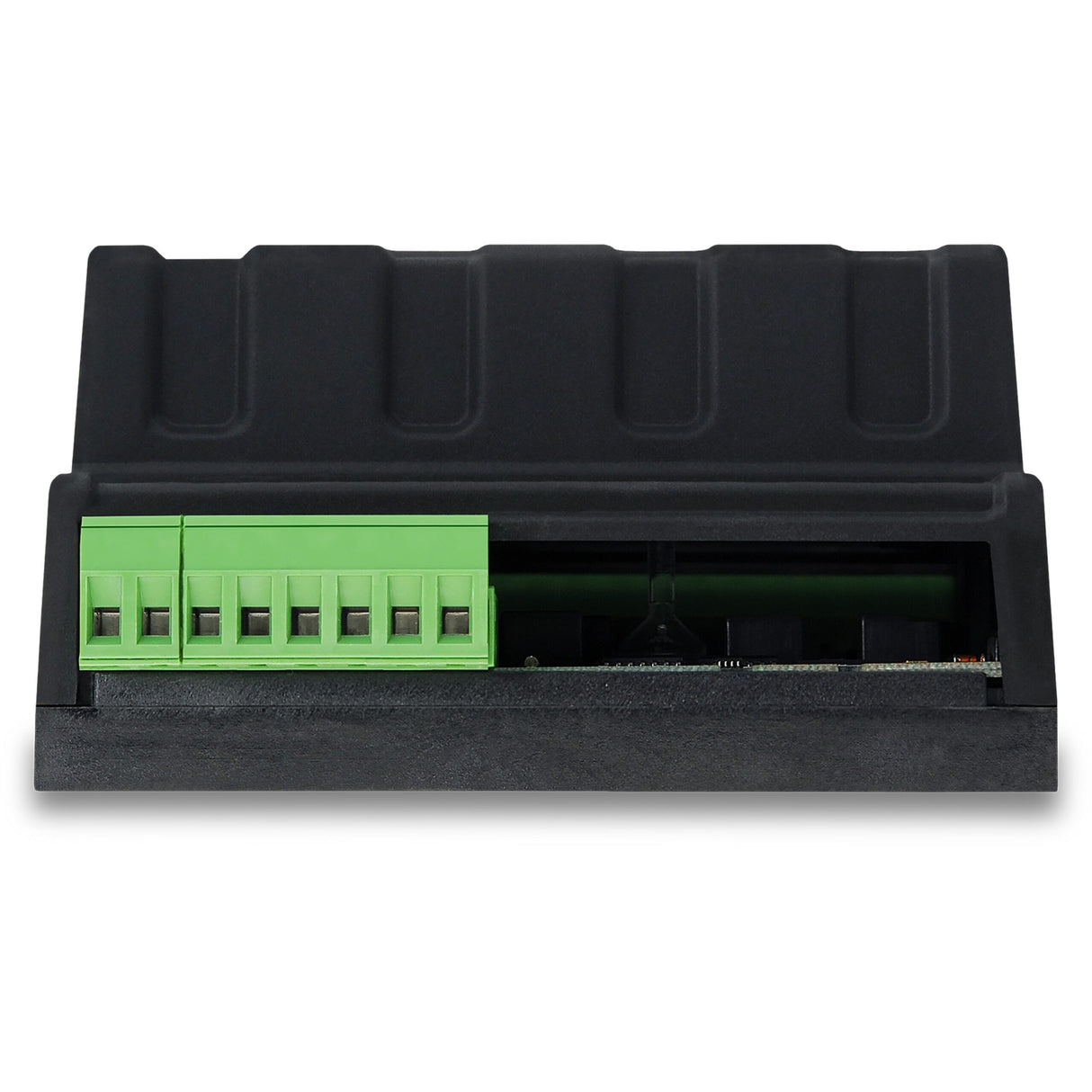

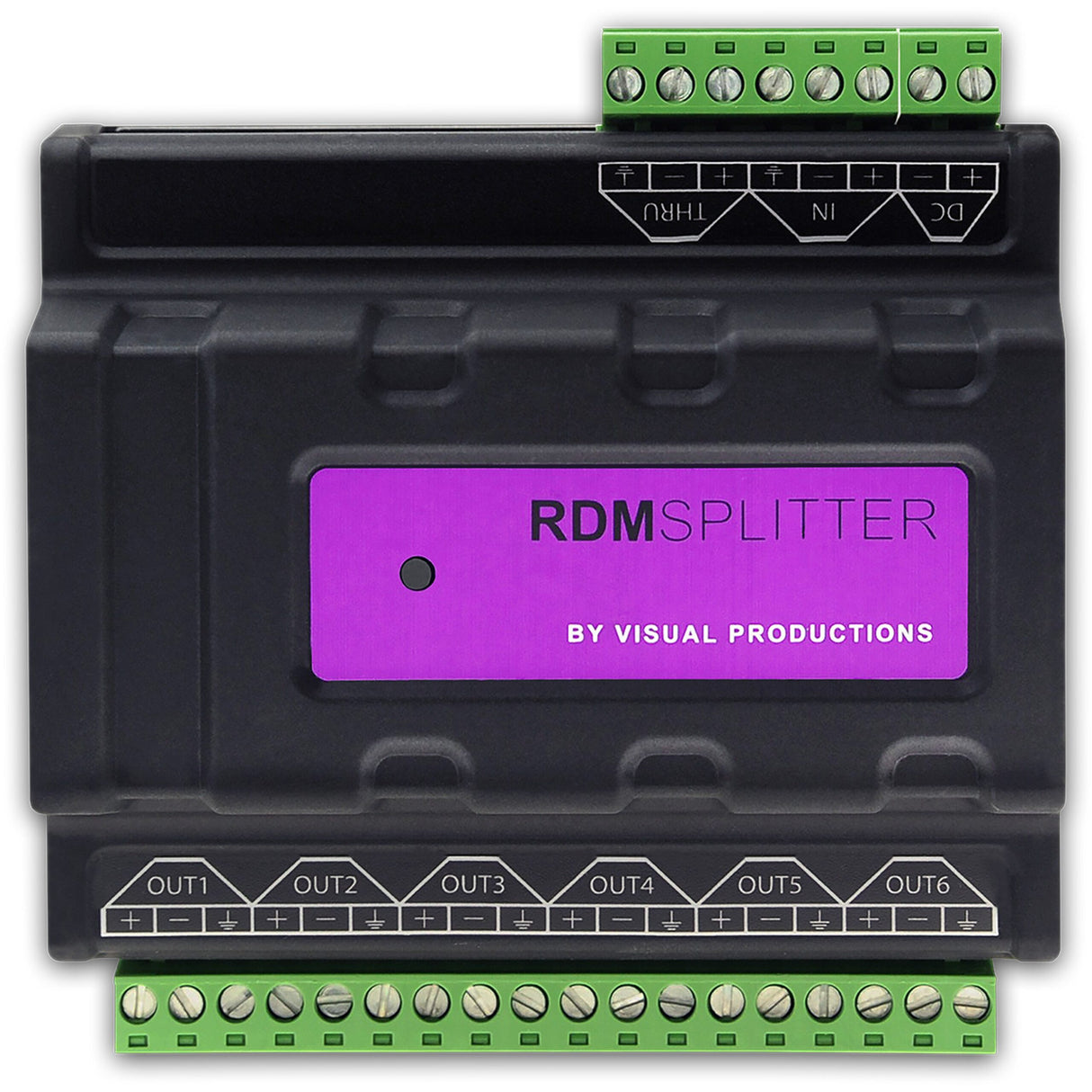

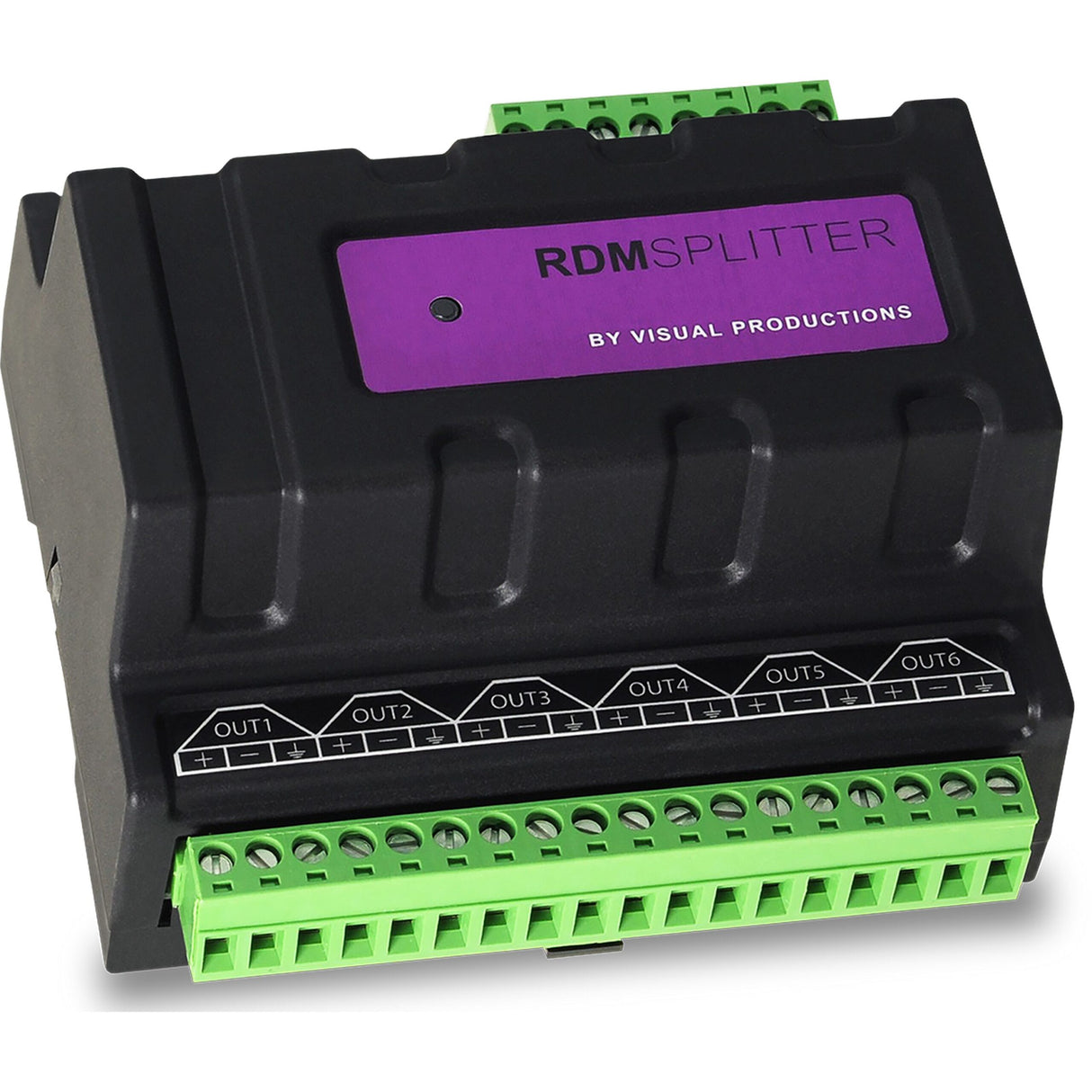

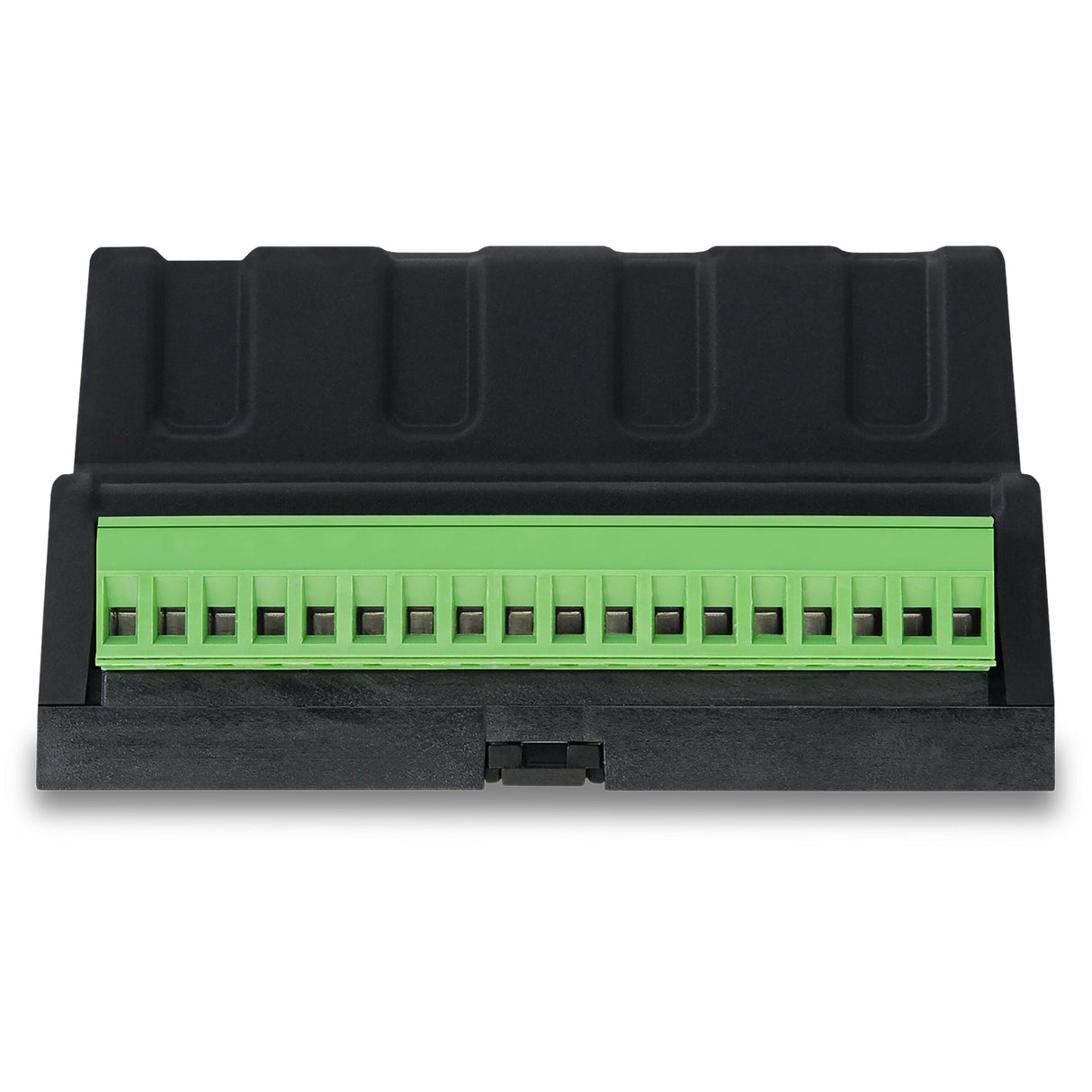

Visual Productions RDM Splitter DIN Rail Mounted DMX+RDM Splitter/Booster, Terminal

$39900

Condition: New



Description

Visual Productions RDM Splitter DIN Rail Mounted DMX+RDM Splitter/Booster, Terminal

The widespread data protocol for lighting equipment is DMX-512. It is a very successful protocol with, however, a few limitations. The maximum number of attached devices is limited to 32 and they all have to be connected in bus-topology having one cable running via each device. Furthermore, a DMX cable should not be longer than 300 meters.

The RdmSplitter from Visual Productions helps tackle those inconvenient limitations. The splitter takes a DMX signal and sends it out again on its 6 DMX output ports allowing a star-topology for efficient cable usage. Each output port is capable of driving 32 more devices. The splitter can also function as a signal booster as each port supports another 300 meter long connection.

The RdmSplitter features RDM compatibility. The RDM protocol provides two-way communication over a DMX infrastructure. It enables automatic addressing and allows fixtures to provide status information back to the lighting controller.

Key Features

  • DIN Rail mounting
  • DMX512-A (ANSI E1.11)
  • RDM (ANSI E1.20)
  • Screw terminals
  • 6 Outputs
  • Optical Isolation (individual per port)
  • 9-24V DC 500mA (PSU optional)
  • Operating temperature -20°C to +50°C (-4°F to 122°F)
  • Compliance EN55103-1 EN55103-2
