Doug Fleenor Design E1REL20A 1 Channel Ethernet Relay

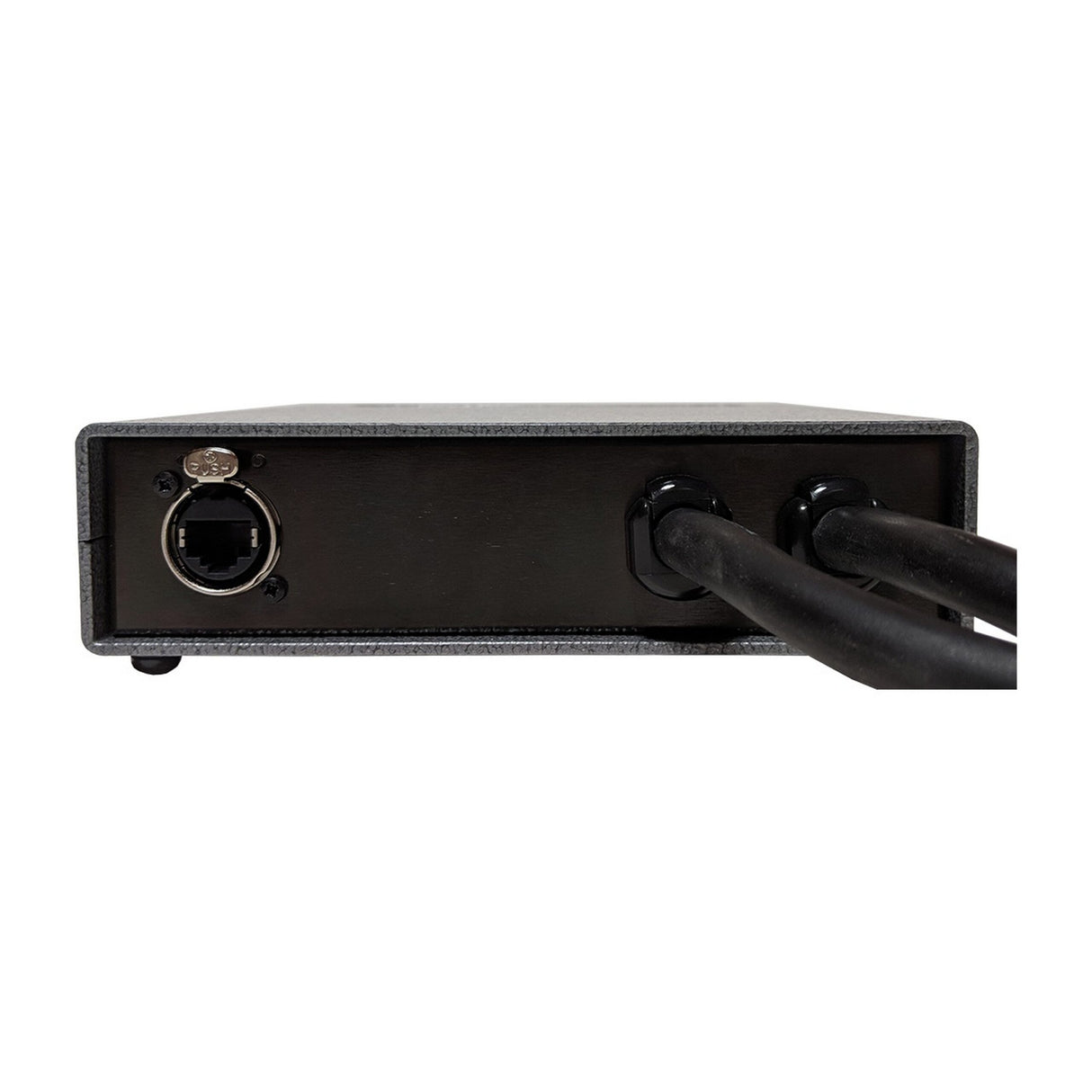

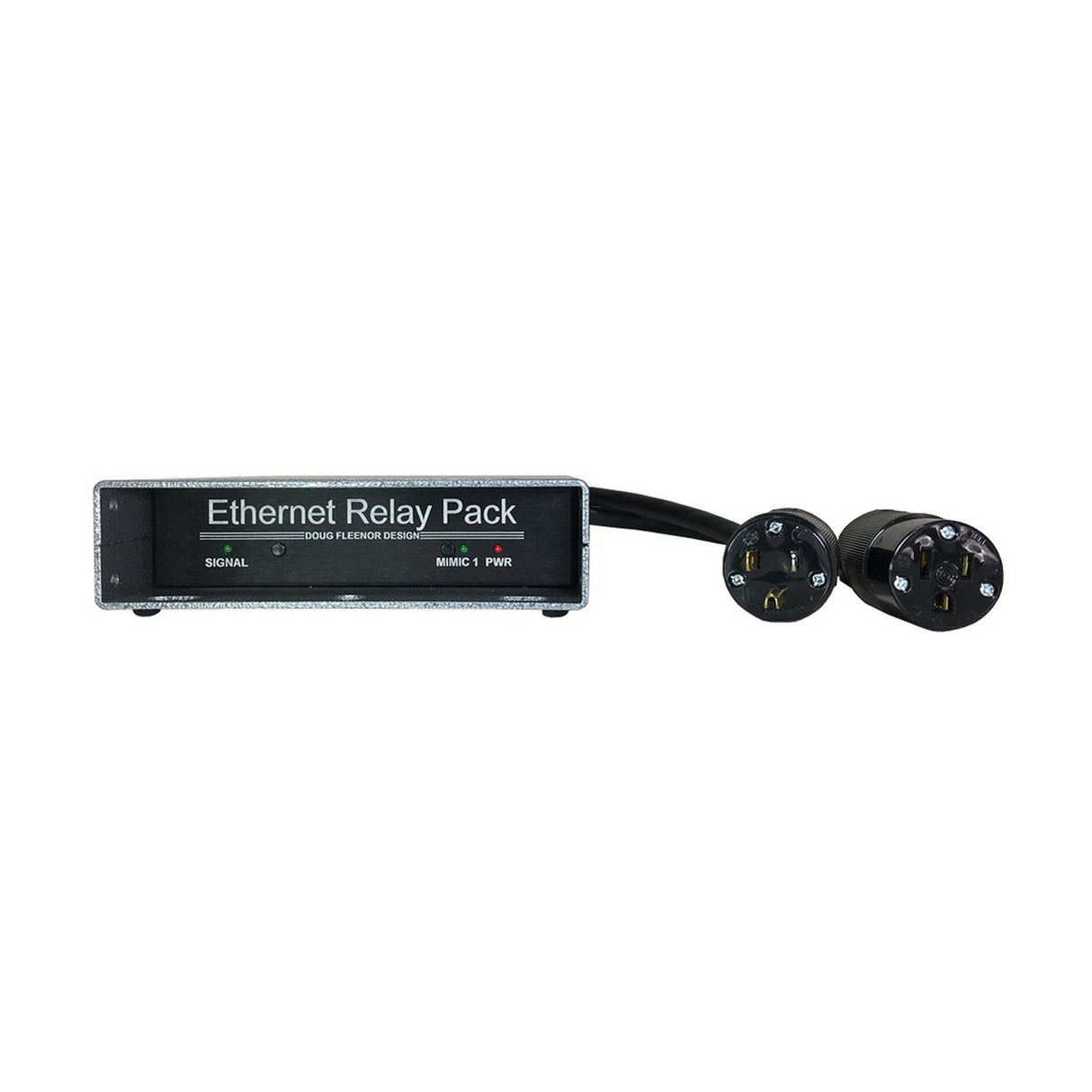

The E1REL20A uses ArtNet and sACN (E1.31) Ethernet protocols for control of a relay. The relay can switch up to a 20 amp line voltage load and is built with a 30 amp relay for robust performance. The unit is provided with two 18" 12/3 SJ pigtails for line in and switched line out. Supplied with 15 amp parallel blade connectors as standard, the unit may be wired with higher rating connectors by special order or may be rewired by the customer.
Technical Specifications
Certification
ETL Listed to the UL 508 standard.
Input signal
E1.31 sACN and ArtNet
Input circuit
100BASE-TX Fast Ethernet, Crossover Detection
Input connector
Neutrik Ethercon
Power input
100 to 132 Volts, 50/60 hertz, 4 watts (plus load)
Power input plug
NEMA type 5-15P dead front plug standard, others optional
Power output
Input power is switched to output (Hot leg only)
Power output socket
NEMA type 5-15R dead front receptacle standard, others optional
Output rating
15 amps with standard connectors, 20 amps with optional connectors
Size and weight
1.7āH - 6.5āD - 6.5āW, 2.7 pounds (19ā rack adapter available)
