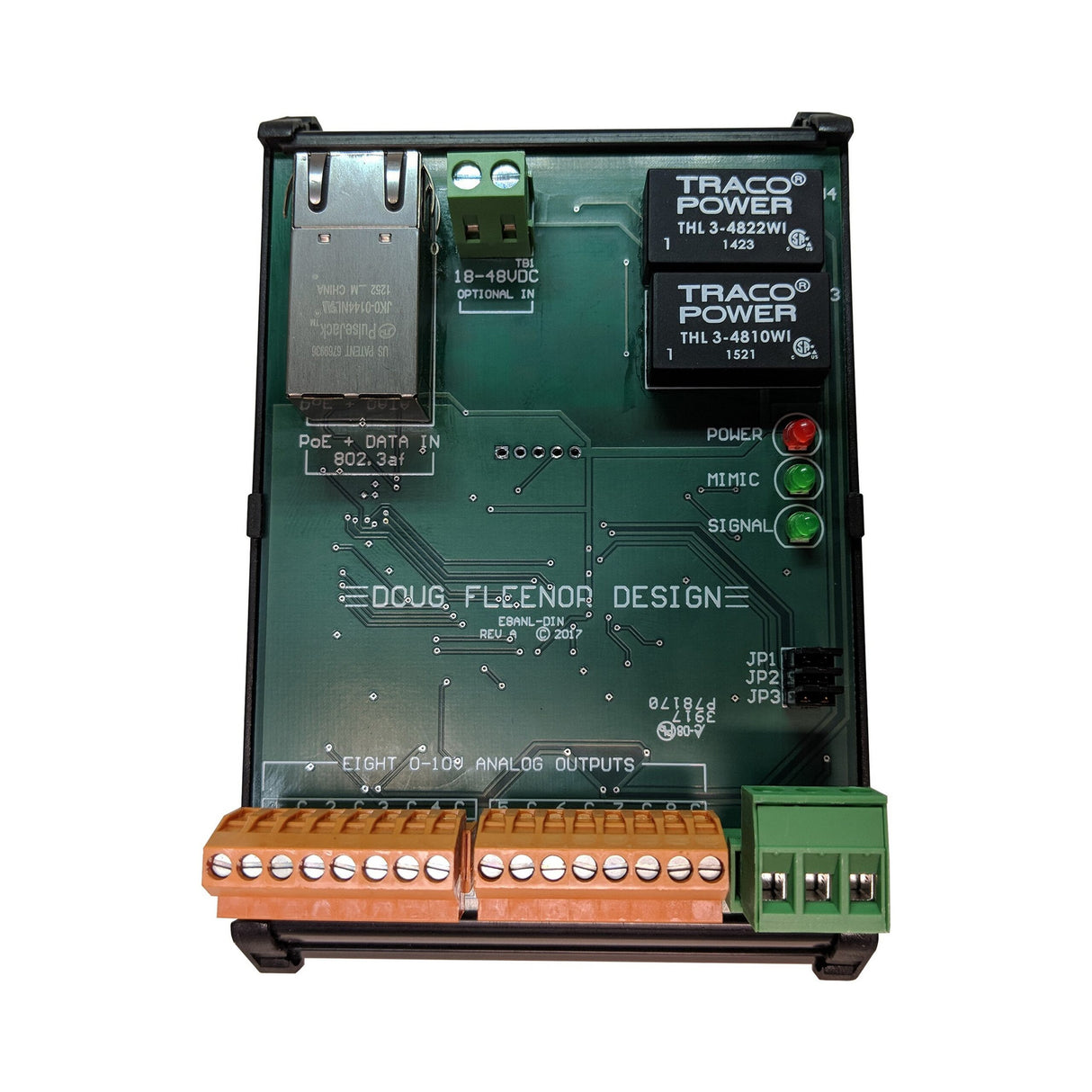

The E8ANL-DIN is an Ethernet (sACN or ArtNet) interface with 8 analog (0-10V) outputs (each with its own common terminal) and a DMX512 output. Configuration is via a built-in webserver. The standard Ethernet connector (8P8C aka RJ-45) accepts PoE (power over Ethernet) or the user may supply power (18 to 48 VDC) on a two-position terminal block. DMX512 and analog connections are on pluggable terminal blocks. The device mounts on standard 35mm “top hat” DIN rail. The E8ANL-DIN can be pre-mounted in a NEMA 1 electrical enclosure (model E8ANLDIN-JBOX).
Technical Specifications
Input circuit
802.3 Ethernet compliant input (LAN8720).
Input signal
ArtNet and sACN (E1.31) Ethernet protocols.
Isolation
Ethernet/power input is isolated from the analog/DMX512 outputs. The outputs are not isolated from each other.
Input connector
Ethernet RJ-45 with 802.3af PoE (Power over Ethernet) capabilities.
Power input
802.3af PoE (Power over Ethernet), 18-48 VDC optional.
Output connectors
Analog: two 8-position pluggable terminal blocks (each terminal block has four outputs and four commons).
DMX512
one 3-position pluggable Phoenix terminal block.
Indicators
Red POWER indicator.
Green MIMIC 1 indicator mimics the intensity of output 1 (useful in troubleshooting).
Green SIGNAL indicator illuminates when an input signal is present; flashes during testing.
Size and weight
E8ANL-DIN: 5"H - 2.5”D - 3.5"W, 5.5 ounces.
E8ANL-DIN-JBOX: 12”H - 4”D - 12”W, 9 pounds.
E8ANL-DIN-JBOX-PS: 12”H - 4”D - 12”W, 10 pounds.
