Doug Fleenor Design ES2ETHER Ethernet Entry Station Snapshot Recorder

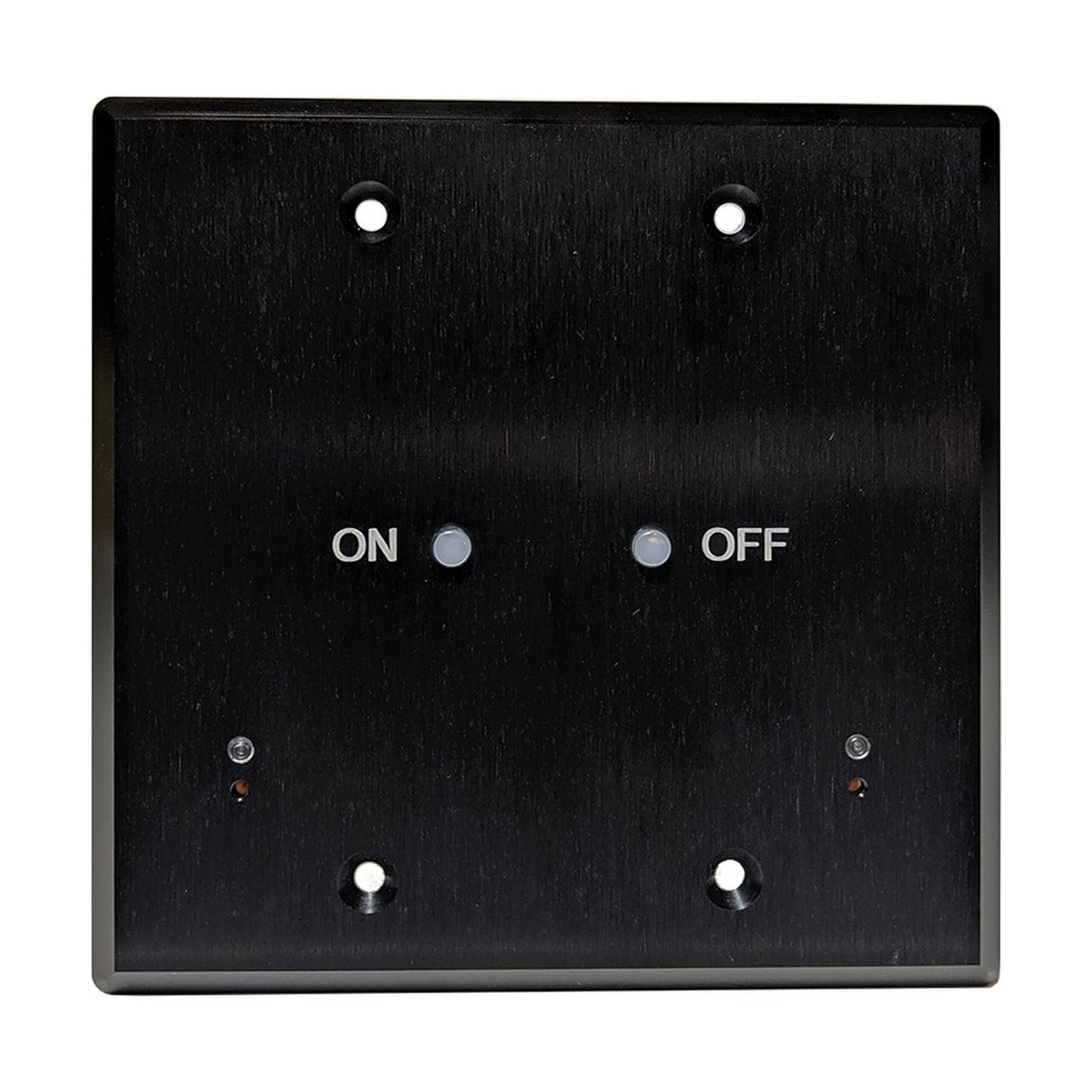

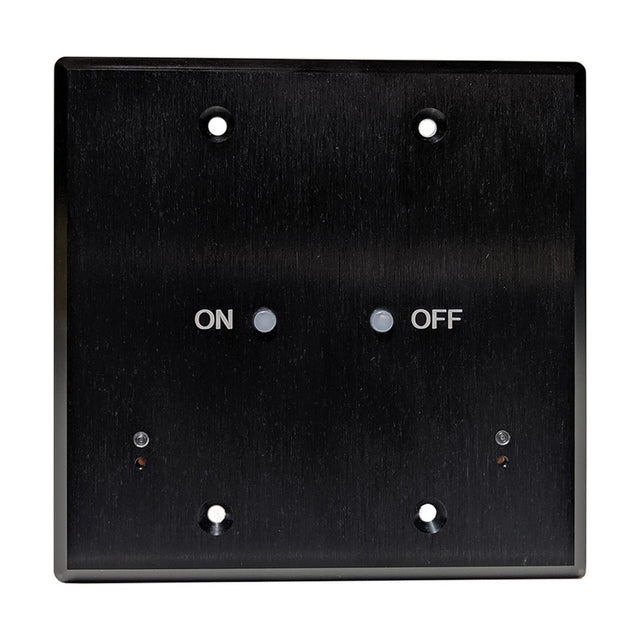

The Entry Station Two Ethernet ES2ETHER) wall station plays back snapshots of sACN (E1.31) on four universes. The simple front interface allows the user to control 2,048 individual slots with the push of a button. Static snapshots from any sACN capable console record into the two presets. Snapshot play back may be used as an alternative to a more complex console, or operate along with that same console. Various lockout topologies make the ES2ETHER ideal in venues requiring untrained users to control fixtures typically accessed by a more complex console. The ES2ETHER supports Power over Ethernet (PoE - 802.3af) or a 24-48VDC power input. Station configuration takes place on a rear facing user interface. Multiple stations may act as remote stations with our Preset 10 Ethernet (model PRE10ETHER-A), and stations operating on different universes may operate on the same Local Area Network (LAN).

Technical Specifications

Input
E1.31 sACN - 4 Universes - 10/100 Mbps Ethernet
Output
E1.31 sACN - 4 Universes - 10/100 Mbps Ethernet
Connector
RJ45
Indicators
Two Green Illuminated Button Caps
One yellow Fade time LED
One red Signal/Record LED
User Controls
Two Preset Select Buttons
One Recessed Record Button
One Rotary Encoder with Knob
One Graphical LCD Screen
Power Input
802.3af Power over Ethernet or Auxiliary 24-48 VDC 150mA
Color
Black anodized with silver engraved nomenclature
Size
Faceplate
4.5”H - 0.2”D - 4.6”W
Faceplate rear inset
4.15”H - 0.1”D - 4.25”W
Electrical box minimum inside dimensions
2.9”H - 1.4”D - 3.6”W
