Doug Fleenor Design GIZMO DMX512 Test Box

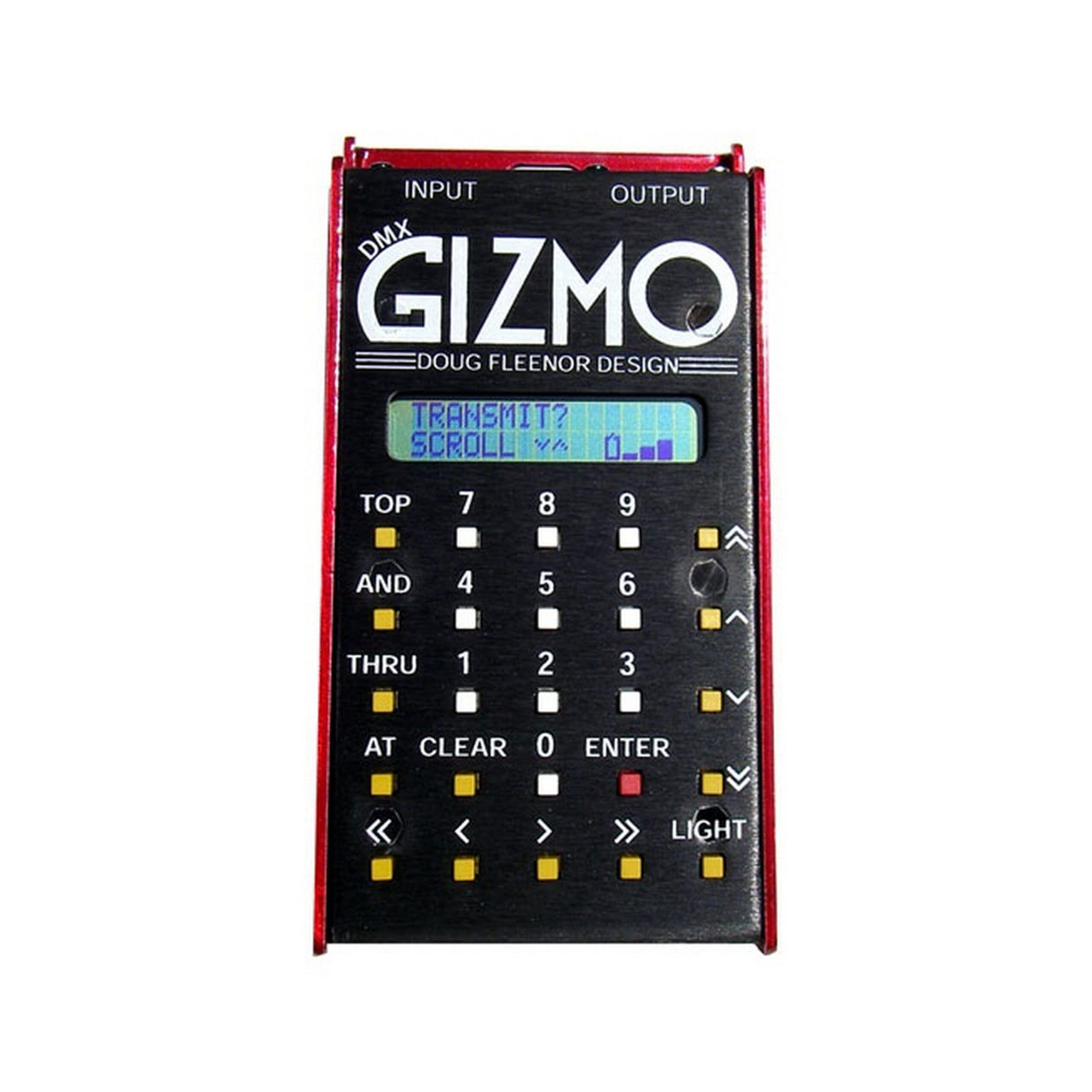

The Gizmo is a DMX512 test tool with features useful for lighting system setup, testing, troubleshooting, and commissioning. With the Gizmo you can transmit, receive, save, playback scenes and perform a variety of data and cable tests. It is housed in a rugged chassis made of 0.1" thick aluminum. A fitted carrying case and wall transformer/battery charger are included with each Gizmo. Direct channel access while sending or receiving DMX512 signals is possible through the use of the numeric keypad. The display is a back lit 16 character by 2 line LCD. The Gizmo has a fully opto-isolated DMX512 input. The DMX512 output can function as an isolated pass-thru which also re-times the signal.

Key Features

• Transmit Up to 512 Channels of DMX512
• Receive DMX512
• Save and Recall 100 Scenes
• Continuity, Pin Correctness and Data Reliability
• Two line back light display, visible in the dark or direct sunlight with the low power back light display.
• 9 Volt Battery or AC Power Operation
• Durable Metal Housing
• Padded Carry Case Included
• 25 Button Key pad

Technical Specifications

Input baud rate
250 Kb/s
Input circuit
ESD protected EIA-485 transceiver (LT1785)
Input signal
3 volts minimum, 12 volts maximum
Input connector
Male Gold plated 5 pin XLR (Neutrik D-1 series).
Pin 1 = common, Pin 2 = Data-, Pin 3 = Data+.
Cable check on pin 4 and pin 5
Output isolation
600 Volts
Output baud rate
250 Kb/s
Output circuit
ESD protected EIA-485 transceiver (LT1785)
Output signal
DMX512-A
Output connector
Female Gold plated 5 pin XLR (Neutrik D-1 series).
Pin 1 = common, Pin 2 = Data-, Pin 3 = Data+
Cable check on pin 4 and pin 5
Color
Front: Black anodized
Rear
Red clear powder coat
Size and weight
Chassis: 6.75"H - 1.4"D - 3.5"W, 16 ounces
Power supply
2.2"H - 1.0"D - 1.9"W, 5 ounces
