DPA 4011C Cardioid Microphone
Description
Description

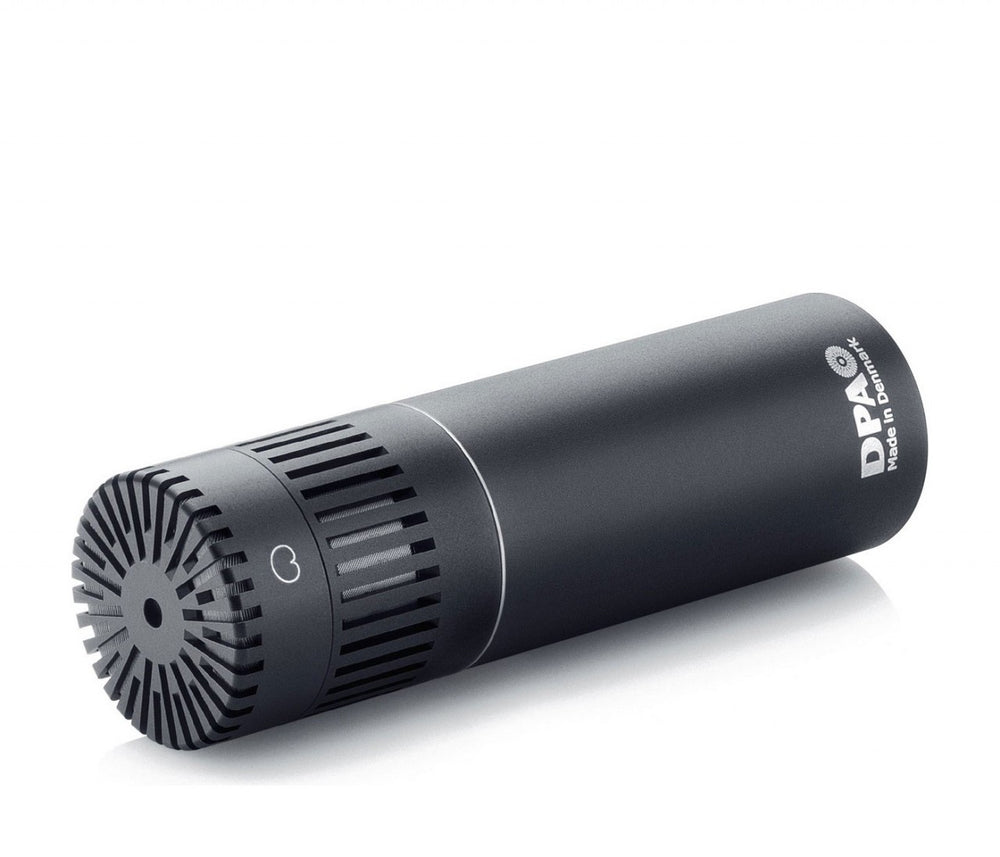

DPA 4011C Cardioid Microphone
The DPA 4011C Cardioid Microphone is a coveted favorite among industry professionals, and a viable solution for capturing vocals, close miking instruments, amplifier cabinets and other sources in live sound reinforcement and crucial recording applications alike. The 4011C features a cardioid condenser element noted for minimizing off-axis noise in spot-miking applications. The 4011C's output stage provides faithful recreations of the original source material.
Key Features
- Compact Design
- Total Transparency
- Cardioid Condenser
- Detailed High-Frequency Character
- For Live Sound & Recording
- Transparent Output Stage
- 20dB Pad Switch
Technical Specs
Transducer
Pressure, Pre-Polarized Condenser
Polar Pattern
Cardioid
Frequency Response
20Hz to 20kHz
Frequency range, ± 2 dB: 40Hz to 20kHz
Sensitivity
Nominal ± 2 dB at 1kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
EIN
Equivalent noise level, A-weighted: Typ. 18 dB(A) re. 20 µPa (max. 20 dB)
Equivalent noise level, ITU-R BS.468-4: Typ. 25 dB
Signal-to-Noise Ratio
Typ. 76 dB(A)
THD
< 1 % up to 139 dB SPL peak
Minimum Load Impedance
2k ohm
Dynamic Range
Typ. 121dB
Max Input Sound Level (SPL)
152dB
Attenuation / Gain
Switchable attenuator: 0 dB / -20 dB
Output Impedance
< 200 ohm
Cable Drive Capability
Up to 328' (100m) with DAD6001 XLR adapter
Output Connector: 3-pin XLR
Output balance principle: Impedance balancing with Active Drive
Common Mode Rejection
> 50 dB
Color
Matte Black
Power Supply
Power Supply: 48V Phantom Power (+/- 4V)
Current consumption: 2.8mA
Output Voltage: > 4V
Polarity
+V at Pin 2 for positive sound pressure
Temperature Range
-40 ° to 113 °F (-40 ° to 45 °C)
Dimensions (Diam. x L)
0.75 x 2.5" (16 x 64mm)
Weight
2 oz (58g)
