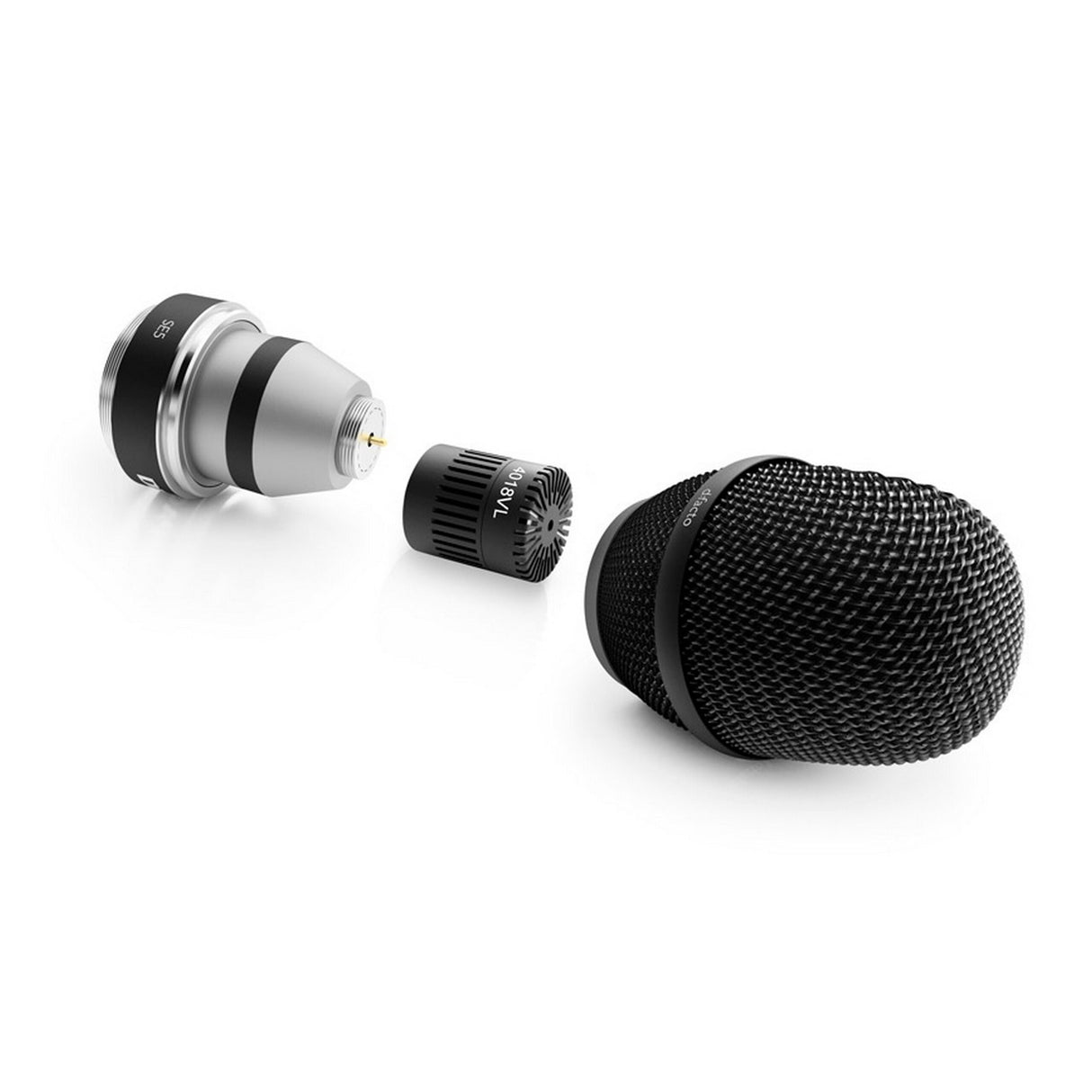

DPA 4018VL d:facto Linear Supercardioid Handheld Microphone Capsule, Black, SE5 Adapter Compatible with Sennheiser 5200 Transmitters
Free Shipping
More finance options:
Estimated Shipping Widget will be displayed here!
Most orders placed before 10:00am PST will most likely ship out the same day. We work hard to process and ship your items quickly so you can start enjoying them as soon as possible.
Found a lower price? Contact us and we'll see if we can match it! Price match will only be applied to products sold and shipped by authorized retailers of the brand.
No restocking fee will be charged when you opt for store credit. Exclusions apply.
Condition: New
DPA 4018VL d:facto Linear Supercardioid Handheld Microphone Capsule, Black, SE5 Adapter Compatible with Sennheiser 5200 Transmitters
The DPA 4018VL d:facto Linear Supercardioid Handheld Microphone Capsule in Black, SE5 Adapter Compatible with Sennheiser 5200 Transmitters, is your go-to solution for achieving studio-quality sound in live stage and broadcasting settings. Distinguished by its extraordinarily natural sound, this microphone capsule maintains a perfectly uniform supercardioid directionality, making it a top choice for professional vocalists and sound engineers. The d:facto series also boasts modularity, allowing you to switch both the capsule and the adapter, providing unmatched flexibility in your recording and performance setups.
Whether you're performing on a live stage or in a controlled studio environment, the DPA 4018VL guarantees high separation and extreme SPL handling. It features a sleek design and low handling noise, ensuring that your audience gets only the clearest and most precise sound. With a flexible adapter system that fits most professional wireless systems, this microphone capsule is as versatile as it gets.
Key Features
- Extraordinarily natural sound
- Perfectly uniform supercardioid directionality
- High separation
- Extreme SPL handling
- Low handling noise
- Sleek design
- Flexible adapter system fits most professional wireless systems
Specifications
- Directional pattern: Supercardioid
- Principle of operation: Pressure gradient
- Cartridge type: Pre-polarized condenser
- Frequency range: 20 Hz - 20 kHz
- Permanent third order high pass filter at 80 Hz
- Frequency range +/-2 dB, at 12 cm (4.7 in): 100 Hz - 16 kHz
- Sensitivity, nominal +/-2 dB at 1 kHz: 5 mV/Pa; -46 dB re. 1 V/Pa
- Equivalent noise level, A-weighted: Typ. 19 dB(A) re. 20 uPa (max. 21 dB(A))
- S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 75 dB(A)
- Total harmonic distortion (THD): < 1% up to 139 dB SPL peak
- Dynamic range: Typ. 120 dB
- Max. SPL, peak before clipping: 160 dB
- Output impedance: 100 OHM
- Minimum load impedance: 1 kOHM
- Cable drive capability: 100 m (328 ft)
- Output balance principle: Impedance balancing with Active Drive
- Common mode rejection ratio (CMRR): > 50 dB at 1 kHz
- Power supply (for full performance): 48 V Phantom power (+/- 4 V)
- Current consumption: Max. 2 mA
- Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
- Weight: 309 g (10.9 oz)
- Microphone diameter: 52 mm (2.05 in)
- Capsule diameter: 19 mm (0.75 in)
- Microphone length: 205 mm (8.1 in)
- Maximum output voltage, RMS: 8 V
- Polarity: +V at pin 2 for positive sound pressure
- Temperature range: -40 deg C to 45 deg C (-40 deg F to 113 deg F)
- Relative humidity (RH): Up to 90%
Package Contents
- DPA 4018VL d:facto Linear Supercardioid Handheld Microphone Capsule, Black
- SE5 Adapter Compatible with Sennheiser 5200 Transmitters
