DPA 4661-OC-H-B00 4661 CORE Heavy Duty Omnidirectional Microphone, Loud SPL, Black, MicroDot

DPA 4661-OC-H-B00 4661 CORE Heavy Duty Omnidirectional Microphone, Loud SPL, Black, MicroDot

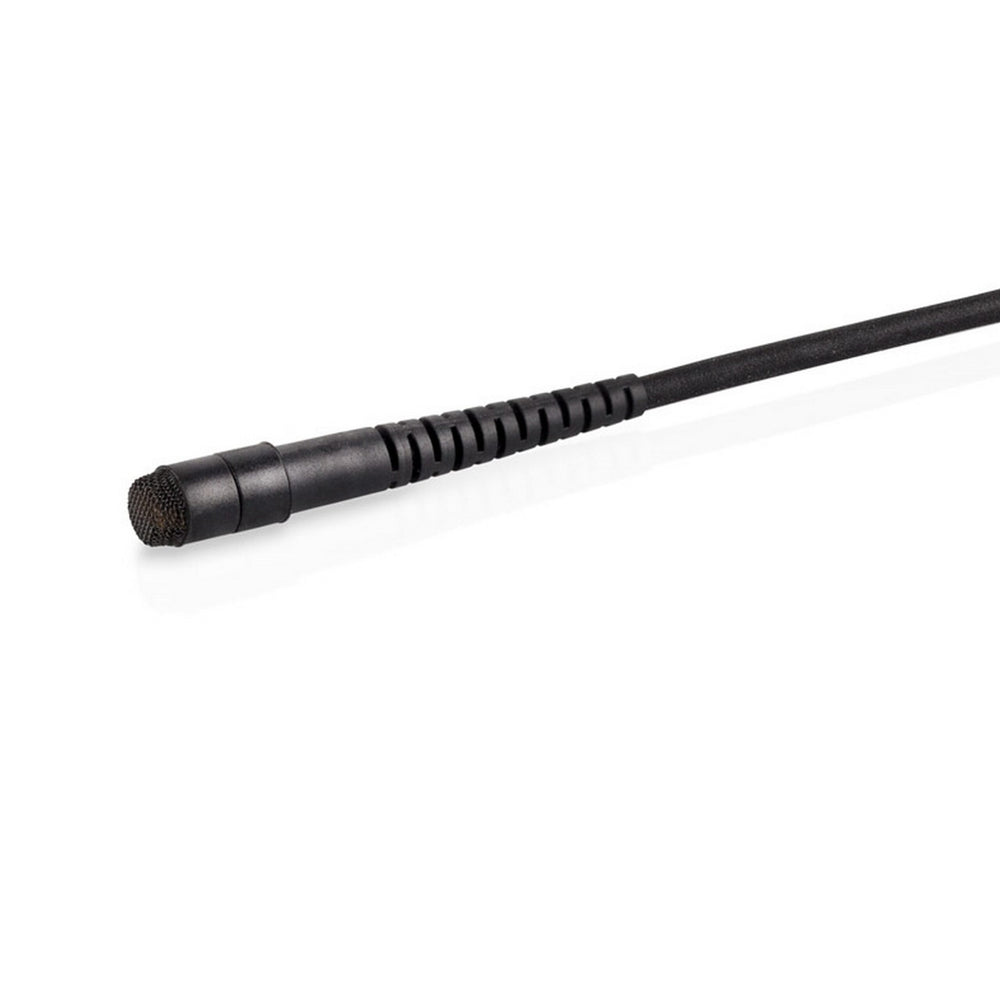

Made for situations where you require maximum security and where the visual size of the mic is less important. The Heavy Duty Mic Series features a stainless steel housing, a heavy-duty cable relief and a thick 2.2 mm (0.09 in) cable. Our Heavy Duty microphones are a more robust version of the original mics they are based upon.

These microphones withstand the toughest of conditions. They are designed with an extra-robust, Kevlar-reinforced cable and a strain relief, which is built to withstand the constant twists, bends and pulls that are part of the everyday use in harsh environments. A 5.4 mm diameter pre-polarized condenser element with a contained within a vertical diaphragm called the Double Vent Protection System, which makes the mics extremely resistant to humidity and sweat.

The acoustic response of the these mics (both the normal and heavy duty version) can be modified by selecting the correct grid for the job. Two grids are supplied with each microphone (not the 4671). The Soft Boost Grid gives a 3 dB soft boost at 8-20 kHz while the High Boost Grid introduces a 10 dB soft boost around 12 kHz. Both of these grids are made of anodized stainless steel. They can be detached from the microphone and wiped cleaned of sweat, makeup, dust etc.

Acoustically identical to the 4060 , this mic is sensitivity adjusted to cope with higher sound pressure levels, which typically occurs when you are close to a sound source or when the microphone must record undisturbed content of high intensity.

The 4661 Heavy Duty can handle SPL 144 dB peak before clipping, making it one of the best miniatures for use on very loud and powerful instruments like snare drums, guitar, bass, speaker cabinets or other high-SPL sound sources. The heavy-duty cable relief and a thicker cable works well in live environments, which can sometimes be rough.

Technical Specifications

Directional pattern
Omnidirectional
Principle of operation
Pressure
Cartridge type
Pre-polarized condenser
Frequency response
20 Hz - 20 kHz
Effective frequency range +/-2 dB
Soft boost grid: 20 Hz - 20 kHz, 3 dB soft boost at 8 - 20 kHz. High boost grid: 20 Hz - 20 kHz, 10 dB boost at 12 kHz
Sensitivity, nominal, +/-3 dB at 1 kHz
6 mV/Pa; -44 dB re. 1 V/Pa
Equivalent noise level, A-weighted
Typ. 26 dB(A) re. 20 uPa (max. 28 dB(A))
Equivalent noise level, ITU-R BS.468-4
Typ. 38 dB (max. 40 dB)
Distortion, THD < 1% - Legacy
120 dB SPL RMS, 123 dB SPL peak
Distortion, THD < 1% - CORE
134 dB SPL RMS, 137 dB SPL peak
Dynamic range
Typ. 97 dB
Max. SPL, THD 10%
144 dB SPL peak
Rated output impedance
30 - 40 OHM
Cable drive capability
Up to 300 m (984 ft) with DAD6001-BC XLR Adapter
Output balance principle
Signal balanced with DAD6001-BC XLR Adapter
Common mode rejection ratio (CMRR)
> 60 dB from 50 Hz to 15 kHz with DAD6001-BC XLR Adapter
Power supply (for full performance)
For wireless systems: Min. 5 V - max. 10 V through DPA adapter
With DAD6001-BC: P48 (Phantom Power). Will work from 12 V
Current consumption
Typ. 1.5 mA (microphone). 3.5 mA with DAD6001-BC XLR Adapter
Connector
MicroDot, TA4F Mini-XLR, 3-pin LEMO, Mini-Jack
Color
Black or beige
Weight
13 g (0.46 oz) incl. Cable and MicroDot connector
Microphone diameter
5.4 mm (0.21 in)
Microphone length
17.6 mm (0.7 in)
Cable length
1.8 m (5.9 ft)
Cable color
Black or beige
Cable diameter
2.2 mm (0.09 in)
Polarity
Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range
-40C to 45C (-40F to 113F)
Relative humidity (RH)
Up to 90%
