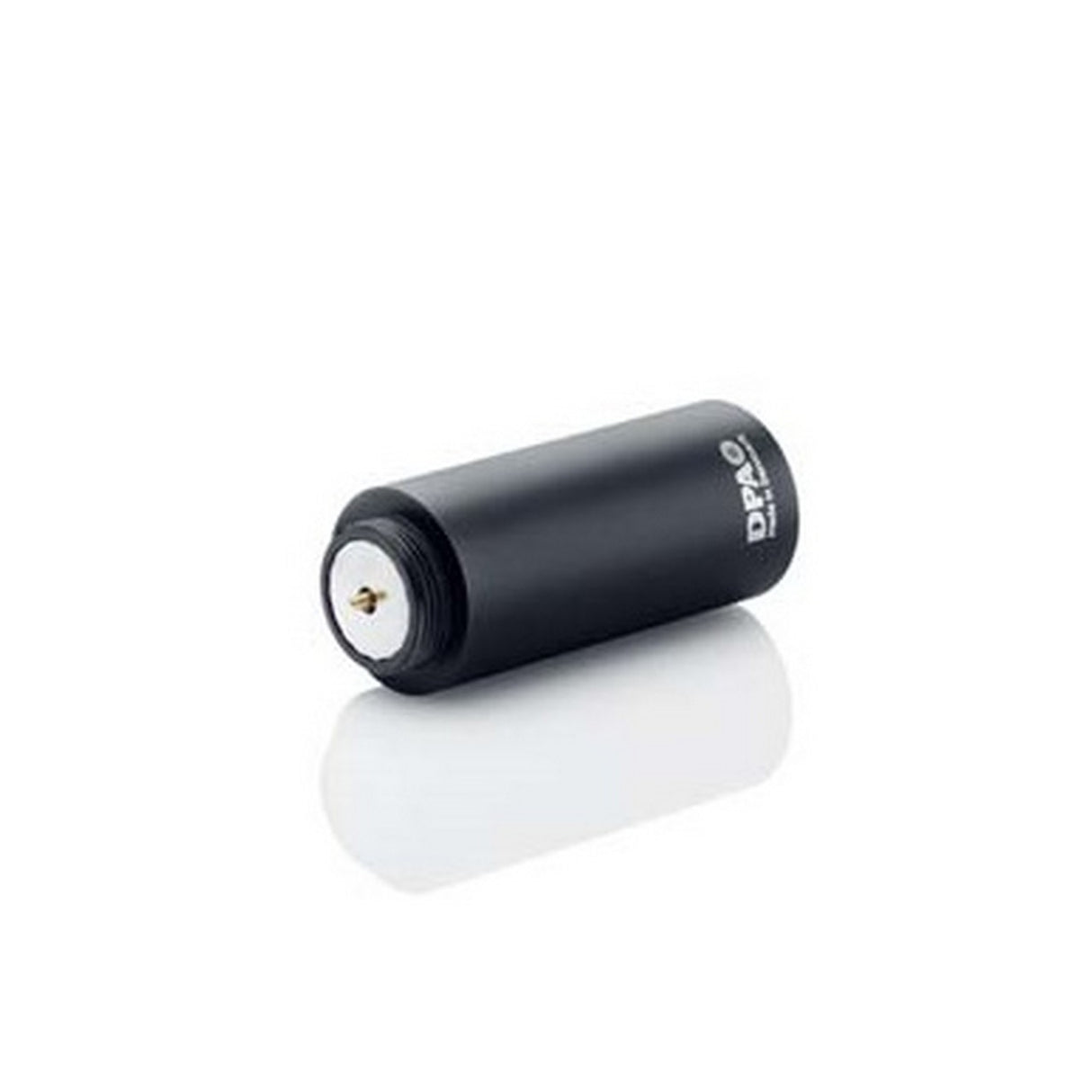

DPA MMP-C Compact Microphone Preamplifier
DPA MMP-C Compact Microphone Preamplifier
Free Shipping
DPA MMP-C Compact Microphone Preamplifier
Ultra-compact preamplifier with active drive for impedance balancing. It has a slightly softer character than the other preamps in the d:dicate Microphones Series.
Key Features
- You can combine this preamplifier with any modular capsule in the d:dicate Microphones Series.
Technical Specifications
Output connector
XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Low-cut frequency, -3 dB
15 Hz
Noise with shorted input A-weighted
0.6 V
Output voltage, RMS
> 4 V
Output voltage, peak
> 5.6 V
Type of electronic circuit
Active
THD@1VRMS, 1kHz
< 0.2 %
Dynamic range
136 dB
Output impedance
< 200 ohm
Cable drive capability
100 m (328 ft)
Output balance principle
Impedance balancing with Active Drive
Common mode rejection ratio (CMRR)
> 50 dB
Power supply (for full performance)
48 V Phantom power (- 4 V)
Current consumption
2.8 mA
Color
Matte black
Weight
40 g (1.4 oz)
Diameter
19 mm (0.75 in)
Length
41 mm (1.6 in)
Temperature range
-40 C to 45 C (-40 F to 113 F)
Relative humidity (RH)
Up to 90 %
