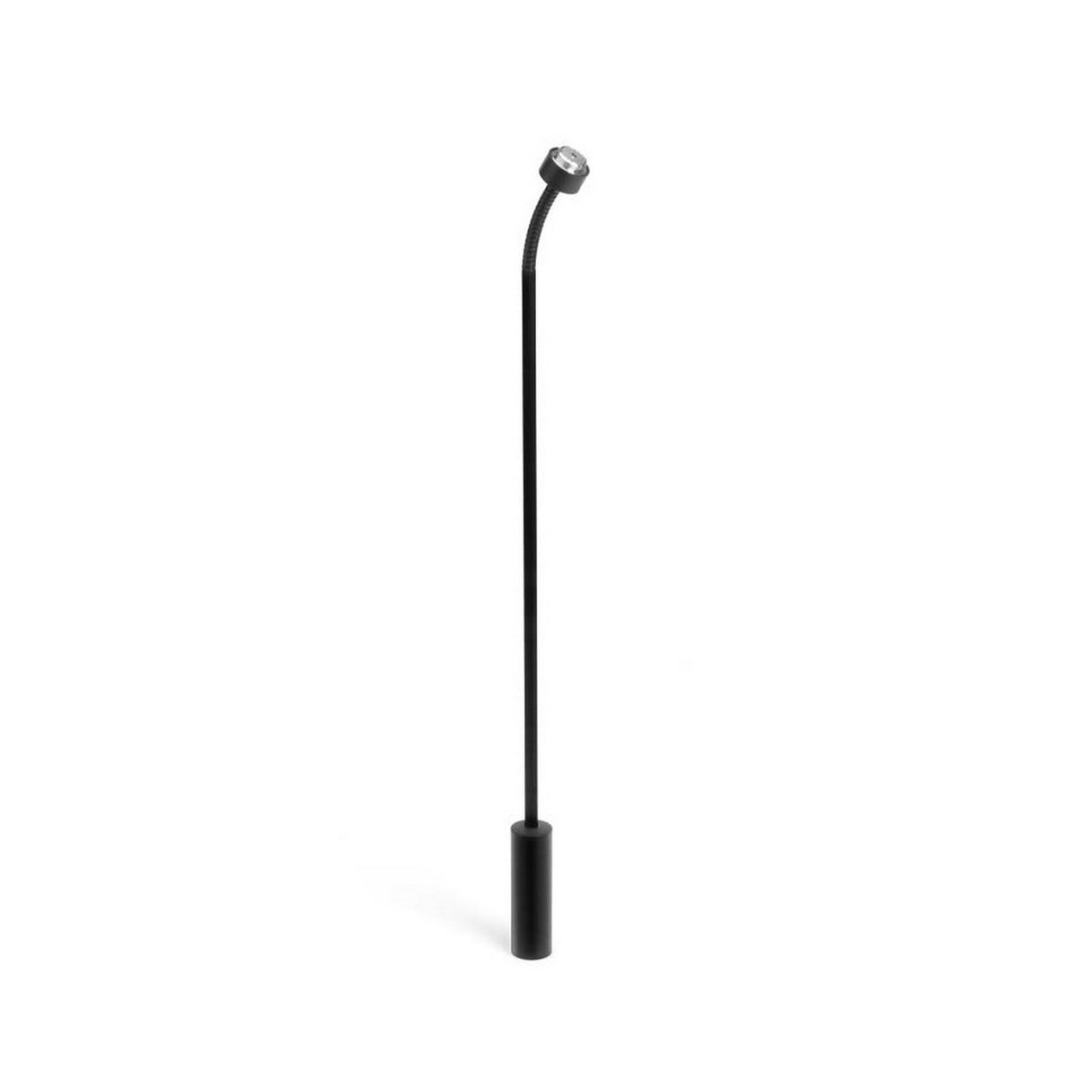

DPA MMP-F75 75 Centimeter Modular Active Gooseneck Boom
DPA MMP-F75 75 Centimeter Modular Active Gooseneck Boom
Free Shipping
DPA MMP-F75 75 Centimeter Modular Active Gooseneck Boom
Equipped with state-of-the-art preamplifier design and sleek appearance, you can combine this preamplifier with any modular capsule in the d:dicate Microphones Series. Excellent radio frequency rejection is obtained through the DPA-designed impedance balancing with active drive.
Key Features
- 120 cm Length
- For podium or stylish floor stand applications
Technical Specifications
Output connector
XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Low-cut frequency, -3 dB
15 Hz
Noise with shorted input A-weighted
0.6 V
Output voltage, RMS
2.2V
Output voltage, peak
3.1V
Type of electronic circuit
Active
THD@1VRMS, 1kHz
< 0.2 %
Dynamic range
131 dB
Output impedance
100
Minimum load impedance
2 k
Cable drive capability
100 m (328 ft)
Output balance principle
Impedance balancing
Common mode rejection ratio (CMRR)
> 40 dB
Power supply (for full performance)
48 V Phantom power (- 4 V)
Current consumption
3.5 mA
Color
Matte Black
Diameter
19 mm (0.75 in)
Length
15, 30, 45, 75, 120 cm
Temperature range
-40 C to 45 C (-40 F to 113 F)
Relative humidity (RH)
Up to 90%
