Dracast DR90SCK Dual Charger with one 90Wh V-Mount Battery
Dracast DR90SCK Dual Charger with one 90Wh V-Mount Battery
Free Shipping
Dracast DR90SCK Dual Charger with one 90Wh V-Mount Battery

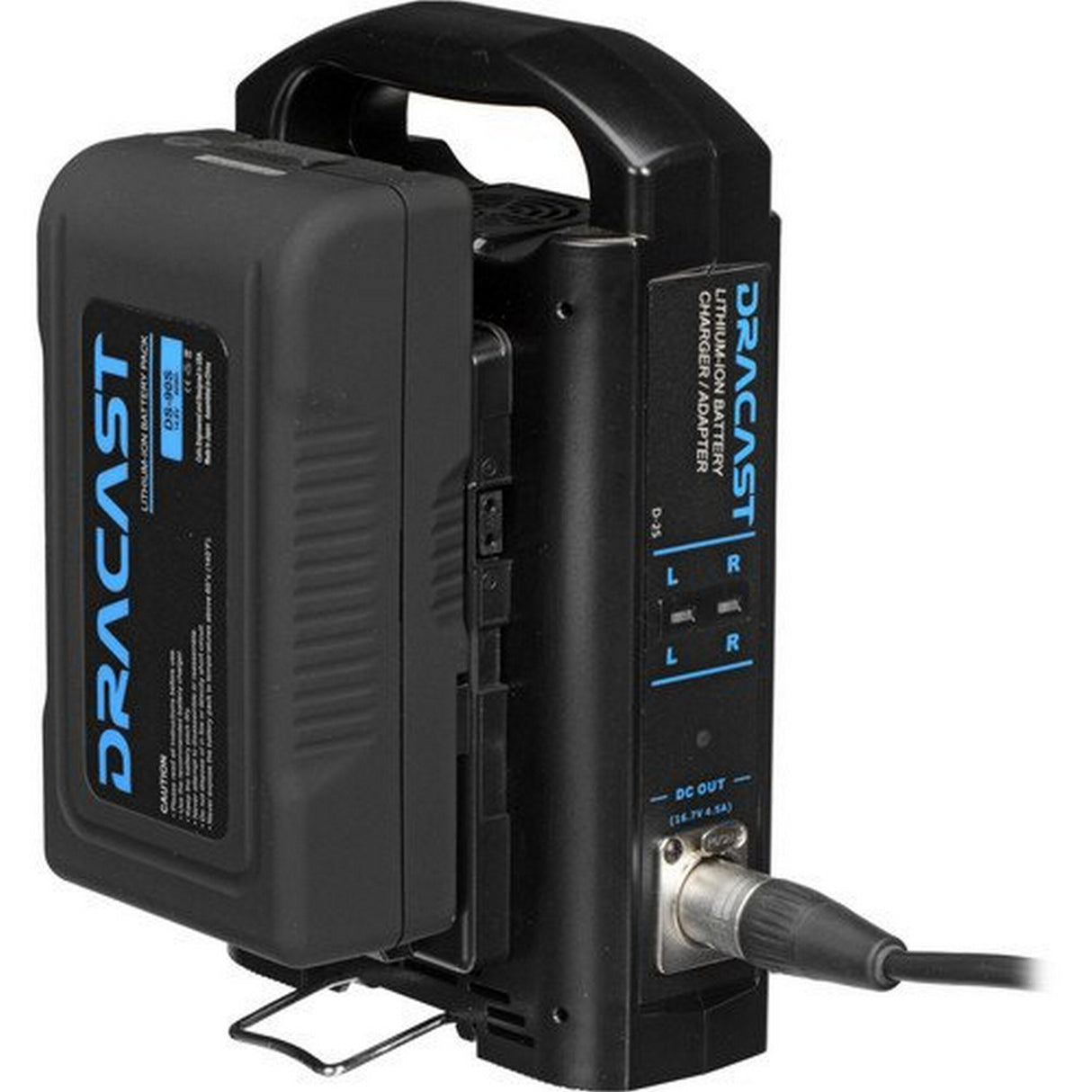

The Dual Charger with Two 90Wh V-Mount Batteries from Dracast is comprised of a multi-voltage V-Mount dual charger and 2 Lithium-ion 14.8V batteries with 5 LED status displays. The dual charger can refresh a single battery or both batteries simultaneously.
DR-CH2V Dual V-Mount Battery Charger
The portable DR-CH2V Dual V-Mount Battery Charger from Dracast allows you to simultaneously charge two V-Mount batteries (or a single battery) from 90 to 240 VAC sources. It features a top handle for easy transport and built-in capacity management system to ensure fast charging. The charger will automatically shutdown once the batteries reach their full charge. Additionally, the charger can function as a portable AC to DC power adapter, taking the AC power input and outputting 15 VDC at 4A via a 4-pin XLR connector. The output is only active when no batteries are attached.
90Wh 14.8V Li-Ion V-Mount Battery
The Dracast 90Wh 14.8V Li-Ion V-Mount Battery is a memory-effect-free battery for professional camera systems. It features built-in electronics to protect the battery during charging and use, charger is not included with the battery. The 5-LED battery system provides an indicator that shows you how much capacity the battery has left before it needs to be charged. It incorporates a D-tap power outlet, so you can power accessories directly, instead of through your cameraās electronics. With an operating temperature range of -4 to 122 F, the battery will keep working even in deep cold and extreme heat.
90Wh Li-ion professional mount battery pack does not suffer from memory effect, common to NiCd batteries.
Fits camera and lighting units with V-Mount battery bracket.
The built-in LED battery gauge provides you with a clear visual confirmation of the batteryās capacity.
The built-in D-tap connector allows you to power accessories directly from the battery, protecting your cameraās electronics from potential damage due to power hungry accessories.
The battery incorporates electronic protection from over-charging, over-discharging, over-current-draw, external short-circuits, and non-equilibrium between its power cells.
The battery will operate in temperature extremes that are uncomfortable for most people. Please note that as a general rule, battery capacity decreases as the temperature gets colder. Check your ownerās manual for instructions on charging cold or hot batteries.
An attached rubber cover protects the D-tap connector when not in use.
In the Box - Bundle Items
DR-CH2V Dual V-Mount Battery Charger
Limited 1-Year Warranty
1 x 90Wh 14.8V Li-Ion V-Mount Battery
Limited 1-Year Warranty
Key Features
- Lithium-Ion Battery Type
- Charges 2 Batteries Simultaneously
- Inhabit IC Protection System
- 5 LED Battery Status Gauge
Technical Specifications
DR-CH2V Dual V-Mount Battery Charger
Power Input: Input: 90 to 240 VAC, 47 to 63 Hz
Power Output: 4-pin XLR, 15 VDC, 4 A
Power Consumption: 50 W
Dimensions: 4.6 x 8.9 x 5.5" (11.7 x 22.6 x 14 cm)
Weight: 2.2 lb (1 kg)
Packaging Info
Box Dimensions (LxWxH): 10.5 x 9.5 x 5.8"
90Wh 14.8V Li-Ion V-Mount Battery
Mount / Series Type: V-Mount
Chemistry: Lithium-Ion
Capacity (Wh): 90 Wh
Output Voltage: 14.8 VDC
Accessory Port: 1 x D-Tap
Operating Temperature: -4 to 122F / -20 to 50C
Dimensions (W x H x D): 6.7 x 3.9 x 1.9" / 170.0 x 100.0 x 47.0 mm
Weight: 1.8 lb / 0.8 kg
Packaging Info
Box Dimensions (LxWxH): 7.6 x 4.5 x 2.6"
