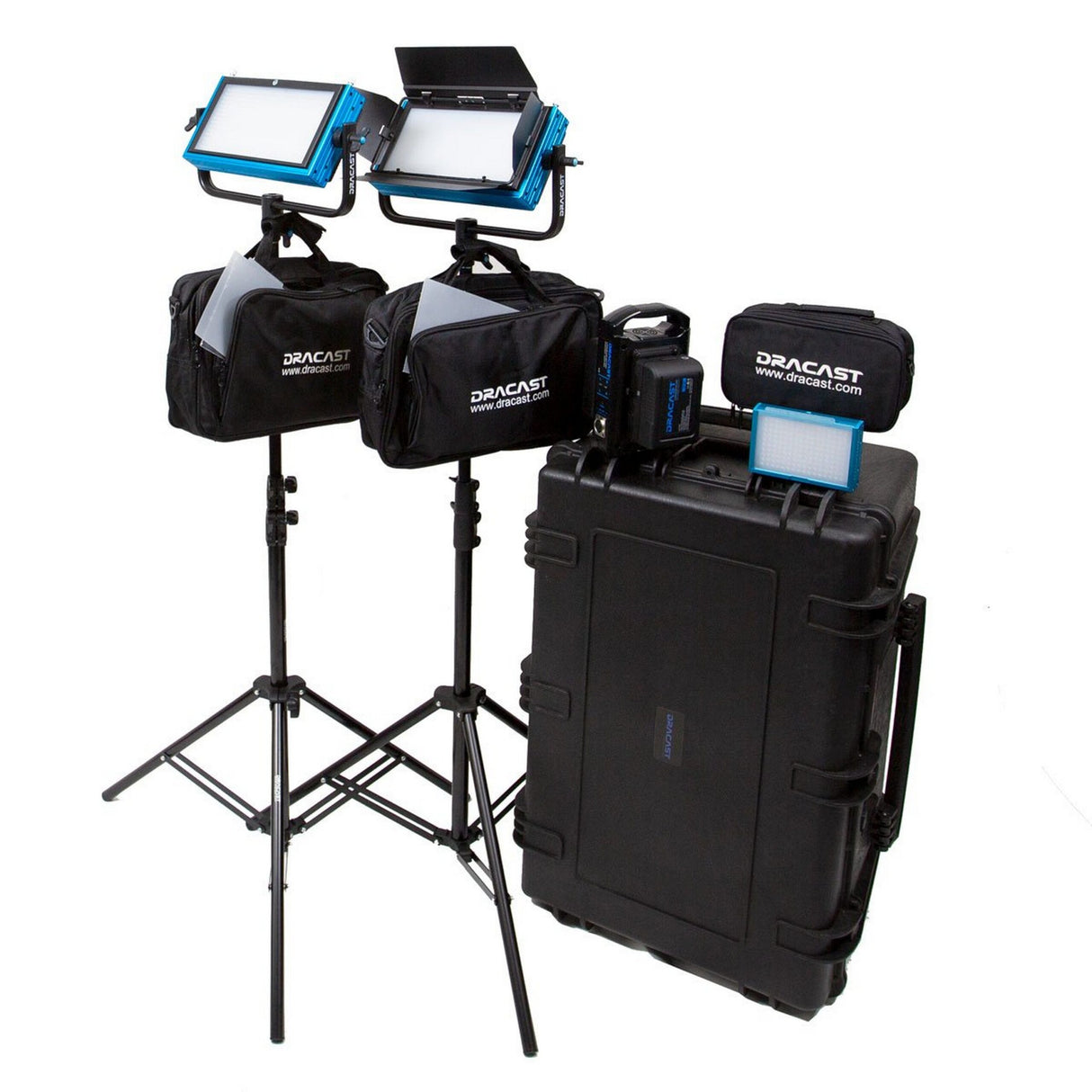

Dracast DRDP3LBIK Plus Series Bi-Color 3-Light Interview Kit with V-Mount/Gold Mount Battery Plates

Create a 3-point lighting setup with ease using the Bi-Color Interview Plus 3-Light Kit from Dracast. It packs together two LED500 Plus LED lights for getting high output in a small package along with a small LED200 on-camera LED light for more mobile setups. Besides the fixtures, the kit also includes two 90Wh V-mount Li-ion batteries and dual V-mount battery charger as well as four-way barndoors, filter frames, and filter sets for the LED500 panels. Additionally, two light stands and hard carrying case are included.

Key Features

• Two Dracast Plus Series LED500 LED Lights
• One Dracast On-Camera Series LED200 Bi-Color LED Light
• Two 90Wh V-Mount Li-Ion Batteries
• Dual V-Mount Battery Charger
• Four-Way Barndoors
• Filter Frames and Filter Sets
• Two Light Stands
• Hard Carrying Case

Technical Specifications

LED500 Plus Series Bi-Color LED Light
Light Fixture
Beam Angle
45
Color Temperature
3200K - 5600K
Color Accuracy Standard
CRI 95
Cooling System
None
Dimmin
Yes, 0 to 100%
Display
None
Housing Material
Aluminum
Number of LEDs
512
Fixture Dimensions
12.0 x 6.0 x 2.0” / 30.5 x 15.2 x 5.1 cm
Fixture Weight
4 lb / 1.8 kg (Including Yoke)
Connectors
Battery Plate
1 x Gold Mount / 1 x V-Mount
DMX Connector
RJ45 Input and Output
Mounting
Yoke Mount
TVMP/ Hex Bolt
Fixture Mount
5/8” Receiver
Accessory Mount
None
Power
AC Input Power
100 to 240 VAC, 50 / 60 Hz
DC Input Power
12 VDC
Power Source
AC Adapter, External Battery
Max Power Consumption
30 W
Physical
IP Rating
IP20
Packaging Info
Box Dimensions (LxWxH)
17.0 x 11.0 x 8.0”
LED200 Bi-Color On-Camera LED Light
Light Fixture
Beam Angle
45
Color Temperature
3200K - 5600K
Color Accuracy Standard
CRI 95
Lumens
660
Expected Lamp Life
50000 Hours
Number of LEDs
200
Effective Distance
20.0' / 6.0 m
Power
DC Input Power
7.2 to 8.4 VDC
Max Power Consumption
9.6 W
Power Input Connector
D-Tap
Power Source
External Battery
Physical
Mount Type
1/4”-20 Female Thread, Cold Shoe
Dimensions
7.4 x 4.1 x 1.6” / 189 x 104 x 40 mm
Weight
0.5 lb / 0.2 kg
Packaging Info
Box Dimensions (LxWxH)
12.0 x 9.0 x 3.6”
90Wh 14.8V Li-Ion V-Mount Battery
Mount / Series Type
V-Mount
Chemistry
Lithium-Ion
Capacity (Wh)
90 Wh
Output Voltage
14.8 VDC
Accessory Port
1 x D-Tap
Operating Temperature
-4 to 122F / -20 to 50C
Dimensions (W x H x D)
6.7 x 3.9 x 1.9” / 170.0 x 100.0 x 47.0 mm
Weight
1.8 lb / 0.8 kg
Packaging Info
Box Dimensions (LxWxH)
7.6 x 4.5 x 2.6
DR-CH2V Dual V-Mount Battery Charger
Power Input
Input 90 to 240 VAC, 47 to 63 Hz
Power Output
4-pin XLR, 15 VDC, 4 A
Power Consumption
50 W
Dimensions
4.6 x 8.9 x 5.5” (11.7 x 22.6 x 14 cm)
Weight
2.2 lb (1 kg)
Packaging Info
Box Dimensions (LxWxH)
10.5 x 9.5 x 5.8”
Barndoors for LED500
Material
Aluminum
Weight
1 lb (0.5 kg)
Packaging Info
Box Dimensions (LxWxH)
11.575 x 6.693 x 1.496
Filter Frame for LED500 Light
Material
Aluminum
Dimensions
Approximately 12 x 6.0” (30.5 x 15.2 cm)
Packaging Info
Box Dimensions (LxWxH)
12.6 x 10.7 x 1.4”
Filter Set for LED500 Light (5-Piece)
Packaging Info
Box Dimensions (LxWxH)
11.3 x 5.8 x 0.3”
DLS-805 Spring-Cushioned Light Stand (6')
Load Capacity
13 lb / 6 kg
Mounting Options
5/8” Stud
Maximum Working Height
72.0” / 182.9 cm
Minimum Working Height
28.5” / 72.4 cm
Collapsed Height
28.5” / 72.4 cm
Leg Shape
Circle
Air Cushioned
No
Detachable Base
No
Leveling Leg
No
Reverse Legs
No
Finish
Black
Material
Aluminum
Weight
3.4 lb / 1.5 kg
Warranty Length
Limited 1-Year Warranty
Packaging Info
Box Dimensions (LxWxH)
37.5 x 4.0 x 4.0”
