Dracast DRDP3LDLK Plus Series LED500 Daylight 3-Light Location Kit with V-Mount and Gold Mount Battery Plates

Dracast DRDP3LDLK Plus Series LED500 Daylight 3-Light Location Kit with V-Mount and Gold Mount Battery Plates

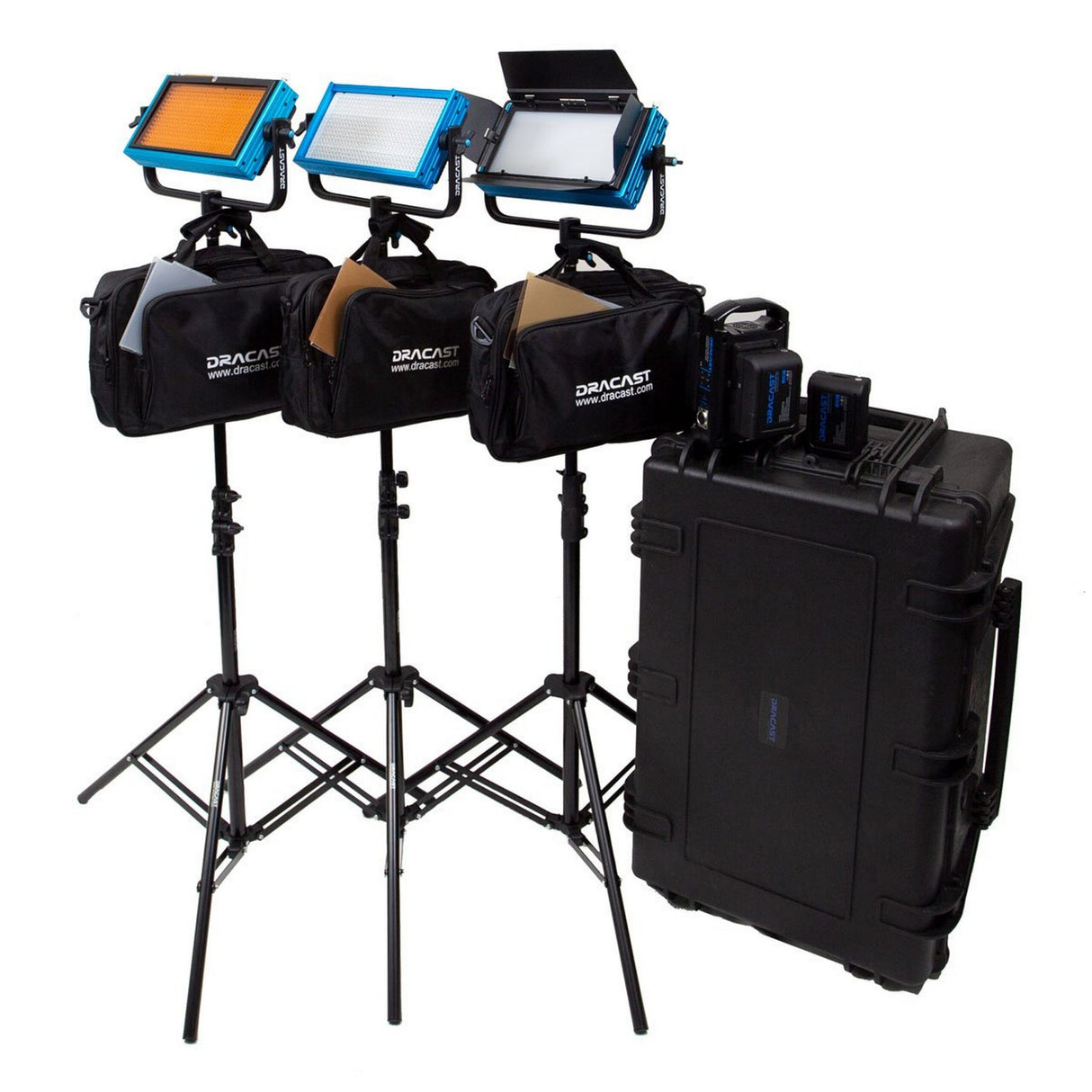

Stay mobile and versatile while still packing enough light with this daylight Location Plus 3-Light Kit from Dracast. It bundles three compact yet powerful LED500 LED lights together with various accessories to help get the job done. The lights also come with three 90Wh batteries, a dual battery charger, barndoors, filter frames, and 5-filter sets. Additionally, three light stands are packed in along with a hard carrying case to store and transport it all.

LED500 Plus Series Daylight LED Light

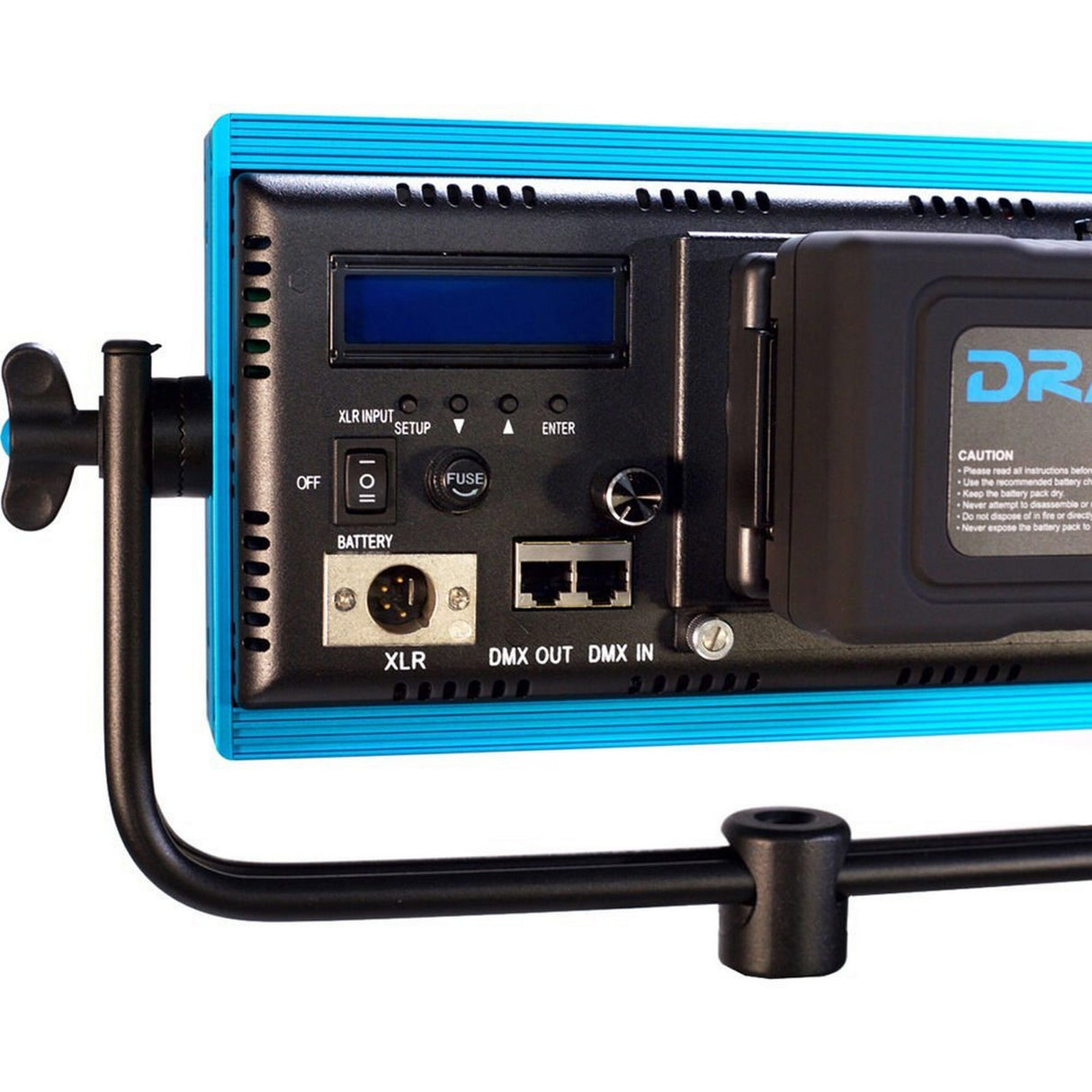

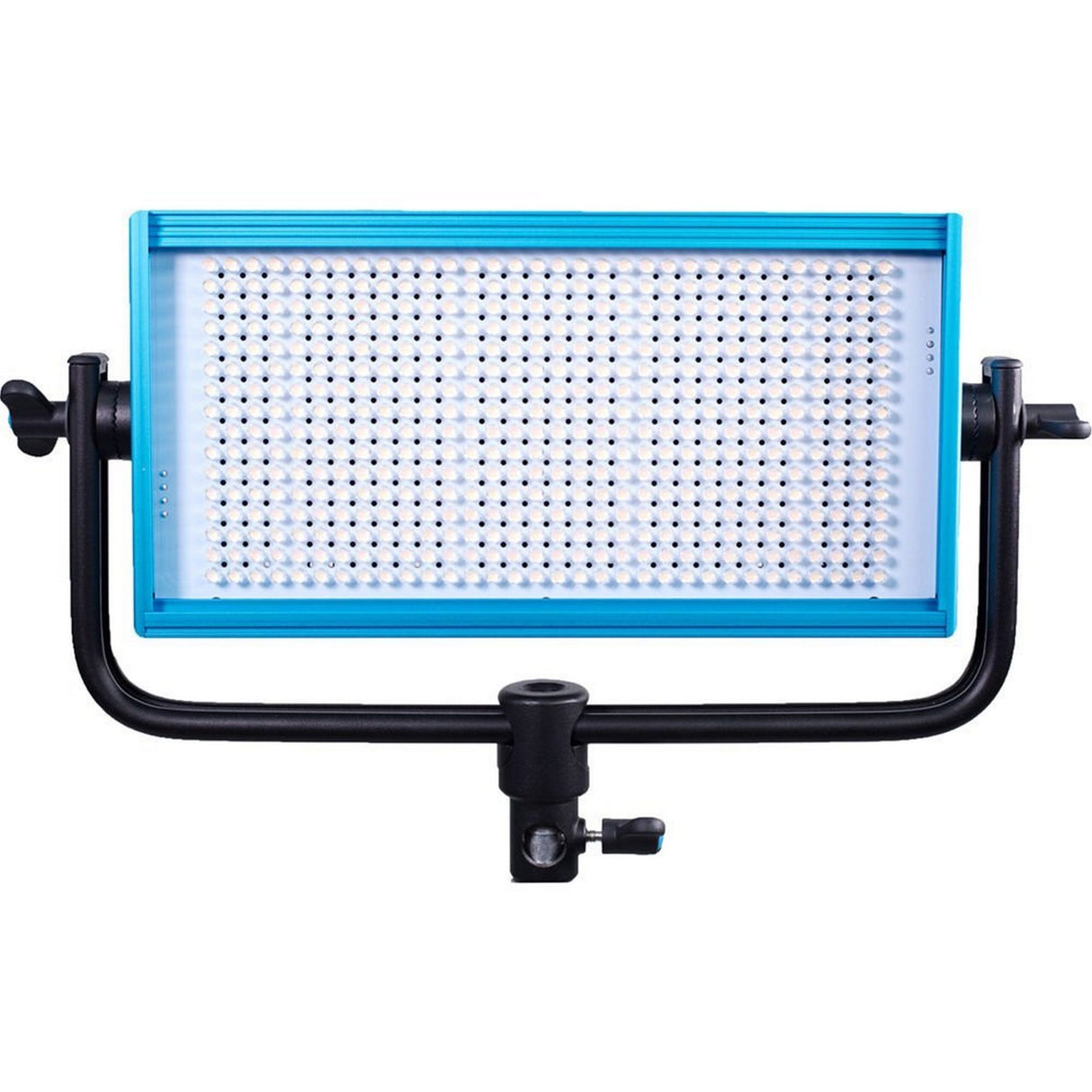

Expanding on their line of panels, the LED500 Plus Series Daylight LED Light from Dracast adds a digital display for adjusting output as well as Cat5 DMX input and output for linking and comes with both Gold mount and V-mount battery plates. The light features 512 LEDs with a high CRI of >95 for excellent color accuracy. Also, this model has a daylight-balanced color temperature of 5600K for matching with natural light and other fixtures.

The lights offer a spot beam angle of 45 as well as dimming from 0-100%. Benefiting operation, it can run off of either a DC source, such as a Gold mount or V-mount battery, or a universal 100-240 VAC adapter. The light is durable as well with an aluminum chassis, frame, and mounting yoke and it only consumes 30W of power. Additionally, it is lightweight at just 4 lb and measures 12 x 6 x 2” in size.

Barndoors for LED500
These Barndoors from Dracast are made for the LED500, and slide into a slot on the front of the LED light. They are used to control the spread of the light and prevent unwanted light spill and they feature a filter holder.

Filter Frame for LED500 Light
The Dracast Filter Frame for LED500 allows the use of Dracast or other brand diffusion, CTO, CTB or effects filters with the fixture. Constructed of lightweight aluminum, the frame drops into the fixture’s accessory channel. It has a frame lock to prevent filter slippage.

Filter Set for LED500 Light (5-Piece)
The Dracast 5 Filter Set for LED500 Light contains rigid light modifiers that measure approximately 12 x 6” to match the fixture. Included in the kit are one each: 1/4, 1/2, and Full CTO filters to change the light’s daylight balance to tungsten. A Half White Diffusion and an Opal Frost Diffusion Filter are also included to soften the light’s output.

90Wh 14.8V Li-Ion V-Mount Battery
The Dracast 90Wh 14.8V Li-Ion V-Mount Battery is a memory-effect-free battery for professional camera systems. It features built-in electronics to protect the battery during charging and use, charger is not included with the battery. The 5-LED battery system provides an indicator that shows you how much capacity the battery has left before it needs to be charged. It incorporates a D-tap power outlet, so you can power accessories directly, instead of through your camera’s electronics. With an operating temperature range of -4 to 122 F, the battery will keep working even in deep cold and extreme heat.

DR-CH2V Dual V-Mount Battery Charger
The portable DR-CH2V Dual V-Mount Battery Charger from Dracast allows you to simultaneously charge two V-Mount batteries (or a single battery) from 90 to 240 VAC sources. It features a top handle for easy transport and built-in capacity management system to ensure fast charging. The charger will automatically shutdown once the batteries reach their full charge. Additionally, the charger can function as a portable AC to DC power adapter, taking the AC power input and outputting 15 VDC at 4A via a 4-pin XLR connector. The output is only active when no batteries are attached.

DLS-805 Spring-Cushioned Light Stand (6’)
The DLS-805 Spring-Cushioned Light Stand from Dracast extends from 28.5” to 72” and has a load capacity of 13 lb. It folds down to 28.5” for transport, and weighs 3.4 lb. There is a 5/8” stud on top of the stand.

The stand is composed of lightweight aluminum and is anodized to cut down on reflections. It is spring-cushioned to keep lighting fixtures damage-free when lowering. Large knobs are easy to grip and allow for quick, smooth adjustments.

Military-Standard Waterproof Case 10 (Empty)
Military-Standard Waterproof Case 10 (Empty) from SKB is constructed of ultra high-strength polypropylene copolymer resin and sealed against dust and water. The hard outer shell is impact-resistant and features a rubber cushion grip handle, built-in wheels, and a pull handle for easy transport. The case is compatible with TSA latches so you can keep your equipment secure while still conforming to airport security requirements. An automatic ambient pressure equalization valve self-adjusts based on your altitude. The case is resistant to UV, solvents, corrosion, and fungus, making it the best way to ensure maximum protection for your equipment at all times.

In the Box - Bundle Items
3 x LED500 Plus Series Daylight LED Light
-Battery Plate for LED500 and LED1000 (Gold Mount)
-Battery Plate for LED500 and LED1000 (V-Mount)
-Aluminum Yoke for LED500 Light
-AC Power Adapter for LED500 Light
-Carrying Case
-Limited 1-Year Warranty
3 x Barndoors for LED500
-Limited 1-Year Warranty
3 x Filter Frame for LED500 Light
-Limited 1-Year Warranty
3 x Filter Set for LED500 Light (5-Piece)
-Full CTO Filter
-Half CTO Filter
-Quarter CTO Filter
-Half White Diffusion Filter
-Opal Frost Diffusion Filter
3 x 90Wh 14.8V Li-Ion V-Mount Battery
-Limited 1-Year Warranty
3 x DLS-805 Spring-Cushioned Light Stand(6’)
-Soft Case
-Limited 1-Year Warranty
-Military-Standard Waterproof Case 10(Empty)
-Limited Lifetime Warranty

Technical Specifications

Light Fixture
Beam Angle: 45
Color Temperature: 5600K
Color Accuracy Standard: CRI 95
Cooling System: None
Dimming: Yes, 0 to 100%
Display: None
Housing Material: Aluminum
Number of LEDs: 512
Fixture Dimensions: 12.0 x 6.0 x 2.0" / 30.5 x 15.2 x 5.1 cm
Fixture Weight: 4 lb / 1.8 kg (Including Yoke)
Connectors
Battery Plate: 1 x Gold Mount / 1 x V-Mount
DMX Connector: RJ45 Input and Output
Mounting
Yoke Mount: TVMP/ Hex Bolt
Fixture Mount: 5/8" Receiver
Accessory Mount: None
Power
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
DC Input Power: 12 VDC
Power Source: AC Adapter, External Battery
Max Power Consumption: 30 W
Physical
IP Rating: IP20
Packaging Info
Box Dimensions (LxWxH): 17.0 x 11.0 x 8.0"

90Wh 14.8V Li-Ion V-Mount Battery
Mount / Series Type: V-Mount
Chemistry: Lithium-Ion
Capacity (Wh): 90 Wh
Output Voltage: 14.8 VDC
Accessory Port: 1 x D-Tap
Operating Temperature: -4 to 122F / -20 to 50C
Dimensions (W x H x D): 6.7 x 3.9 x 1.9" / 170.0 x 100.0 x 47.0 mm
Weight: 1.8 lb / 0.8 kg

DR-CH2V Dual V-Mount Battery Charger
Power Input: 90 to 240 VAC, 47 to 63 Hz
Power Output: 4-pin XLR, 15 VDC, 4 A
Power Consumption: 50 W
Dimensions: 4.6 x 8.9 x 5.5" (11.7 x 22.6 x 14 cm)
Weight: 2.2 lb (1 kg)

DLS-805 Spring-Cushioned Light Stand (6')
Load Capacity: 13 lb / 6 kg
Mounting Options: 5/8" Stud
Maximum Working Height: 72.0" / 182.9 cm
Minimum Working Height: 28.5" / 72.4 cm
Collapsed Height: 28.5" / 72.4 cm
Leg Shape: Circle
Air Cushioned: No
Detachable Base: No
Leveling Leg: No
Reverse Legs: No
Finish: Black
Material: Aluminum
Weight: 3.4 lb / 1.5 kg
Warranty Length: Limited 1-Year Warranty

Military-Standard Waterproof Case 10(Empty)
Carry/Transport Options: Top Handle, Side Handle, Telescoping Handle, Wheels
Closure Type: Latch
Materials: Polypropylene
Interior Contents: None
Exterior Dimensions (W x H x D): 31.5 x 20.8 x 12.5" / 80.0 x 52.8 x 31.8 cm
Interior Cubic Volume: 3.3 ft / 0.093 m
Watertight: Yes
Maximum Buoyancy: 25.0 lb / 11.3 kg
IP Rating: IP67
Storage Temperature: -40 to 160F / -40 to 71.1C
Weight: 21.6 lb / 9.7 kg
