Dracast DRDRENGKDV Pro Series Daylight 4-Light ENG Kit with V-Mount Battery Plates

Dracast DRDRENGKDV Pro Series Daylight 4-Light ENG Kit with V-Mount Battery Plates

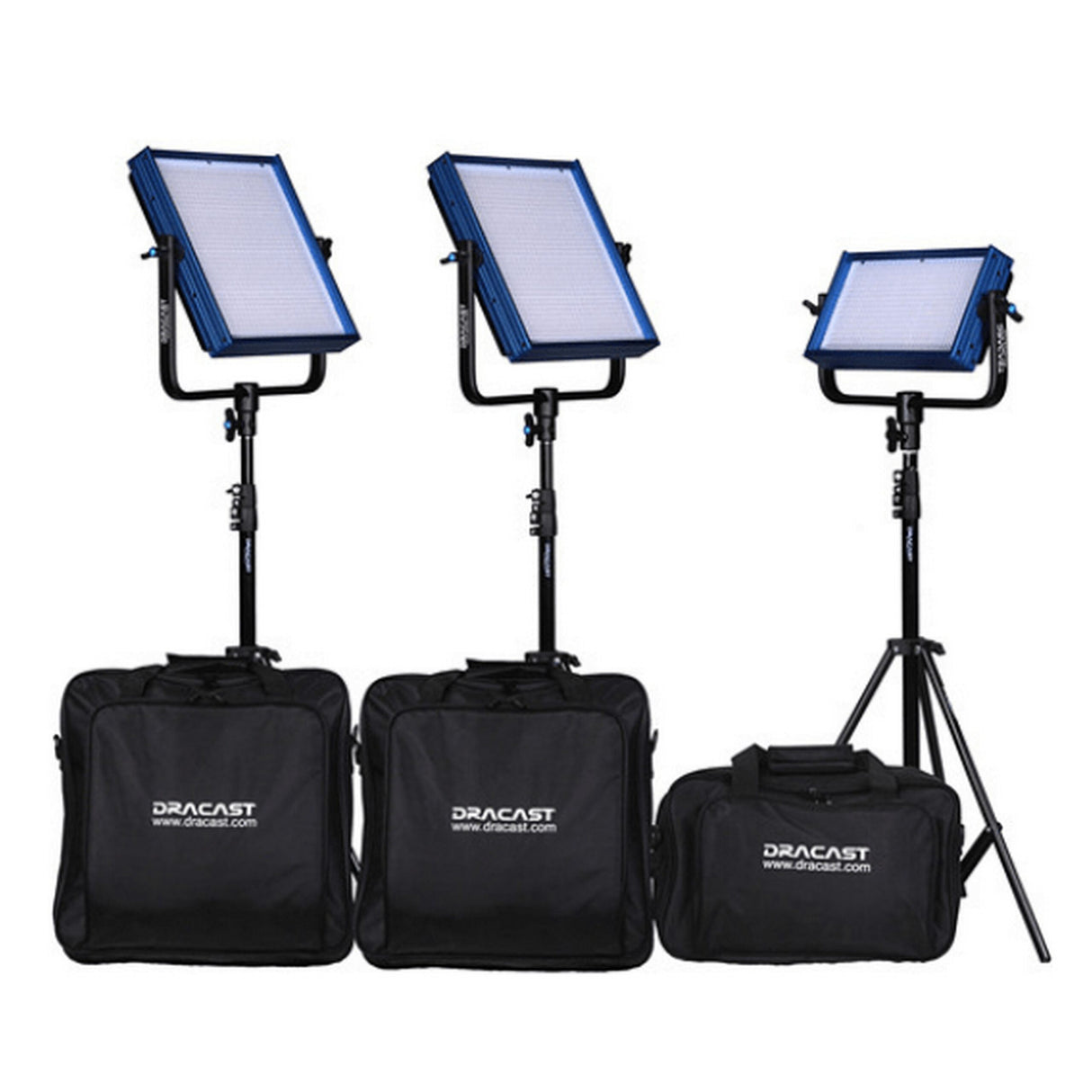

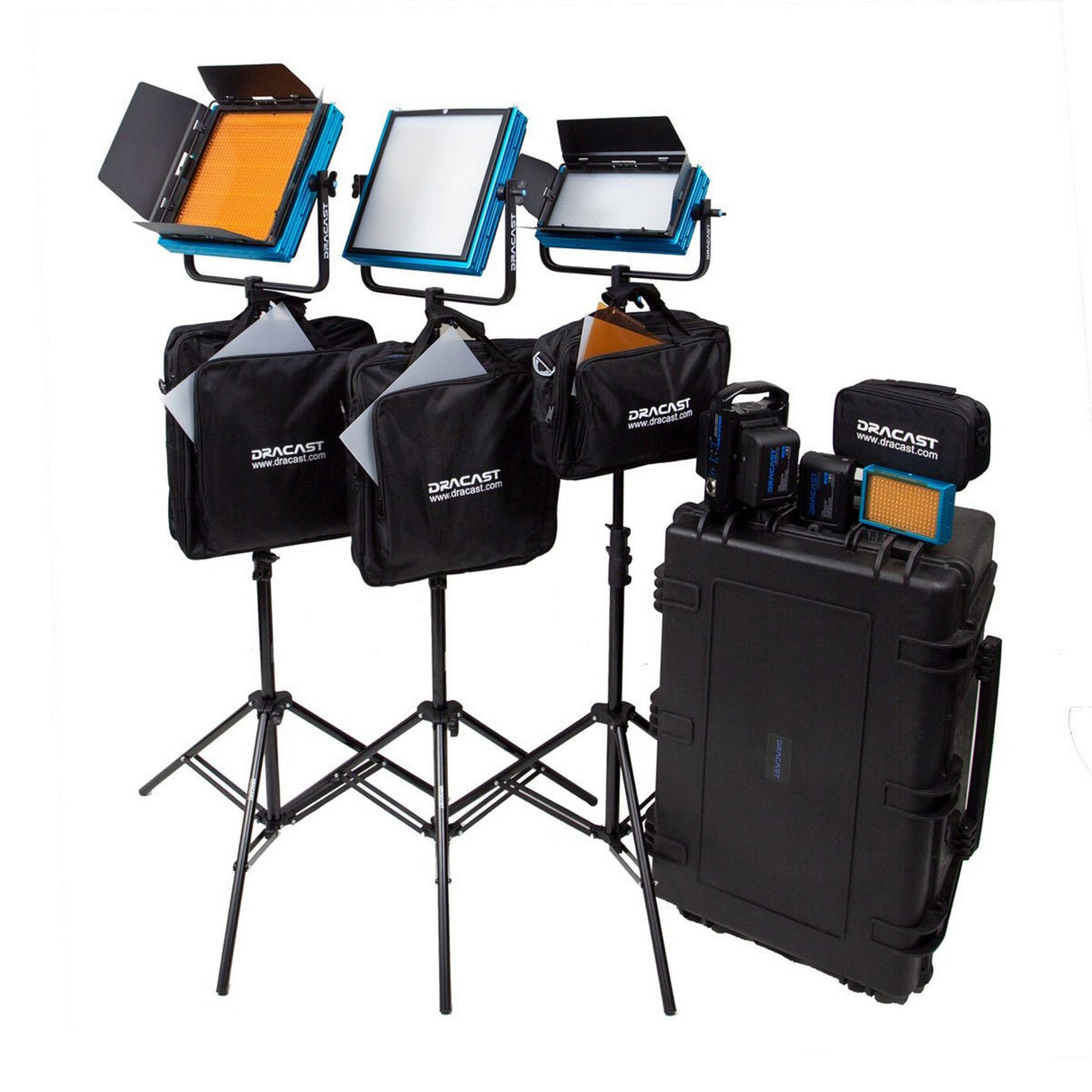

Ideal for location shooters, Dracast Pro Series Daylight 4-Light ENG Kit with V-Mount Battery Plates is comprised of 2 LED500 Pro Daylight lights, each with a multi-voltage power adapter, soft case, an 8.7’ light stand, V-mount battery plate, and battery. A dual charger is included for the batteries. An LED160A Daylight light is also included with a power supply, built-in Sony NP-F series battery plate, battery, charger, and soft case. And, this kit has two filter frames and two filter packs for use with the LED500 lights.

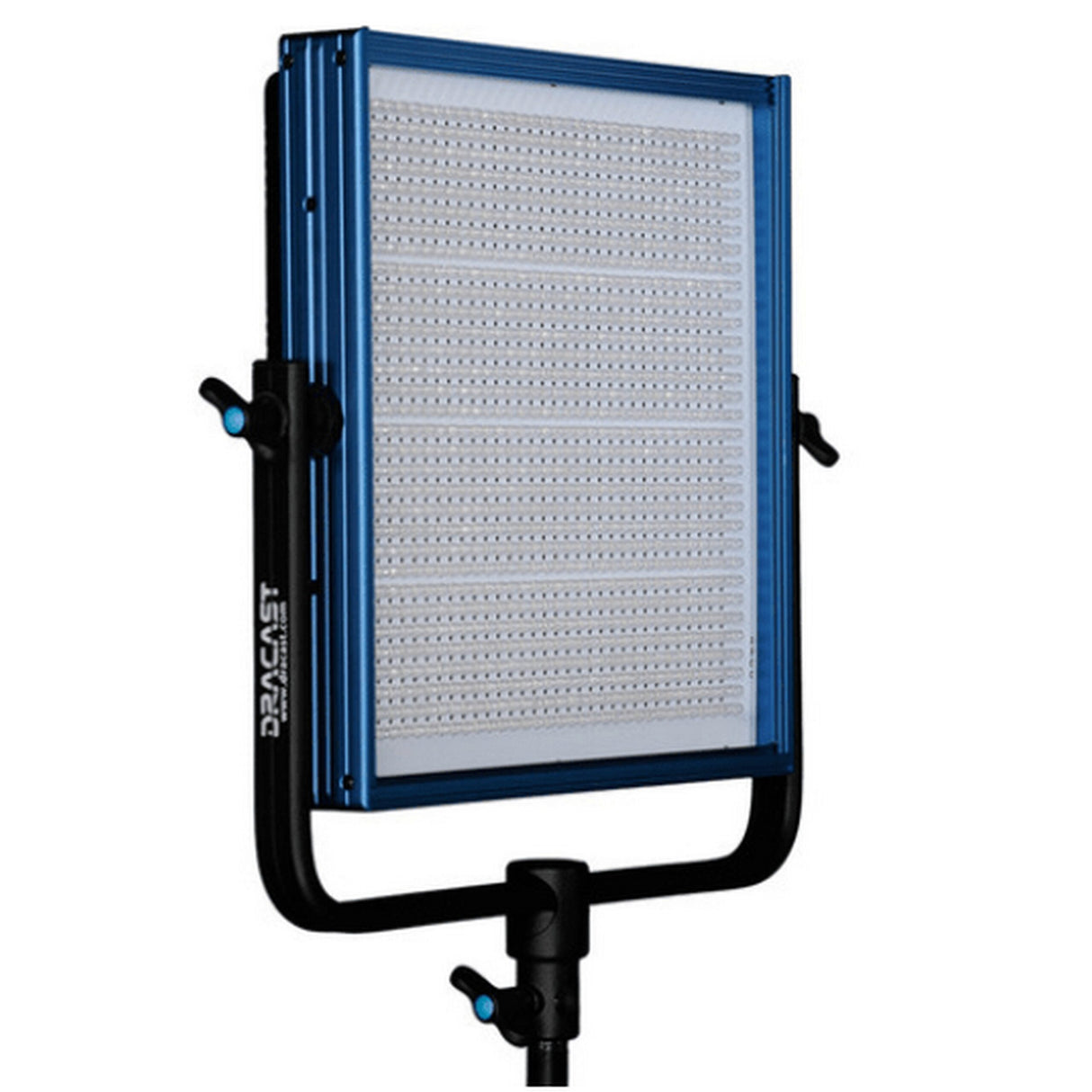

LED1000 Pro Daylight LED Light with V-Mount Battery Plate
At 5.5 lb the LED1000 Pro Daylight LED Light with V-Mount Battery Plate from Dracast is an ideal choice for the studio or location work where color accuracy, control and flicker-free output are of major importance. The LED1000’s daylight balanced output is well suited to outdoor work or for color matching HMI fixtures, while its high CRI of 95 renders colors with precision and fidelity. Dimming from 100-0% is conveniently done with a back-panel knob that adjusts the output with negligible color shift. The low electrical draw of just 60W means a timely return on your investment.

The durable anodized aluminum frame is supported by an sturdy, U-shaped yoke with locking knobs on each side and a standard 5/8” receiver. This LED1000 can be used worldwide thanks to its included 100-240 VAC power adapter. You can also use the onboard V-mount battery plate with 14.8V batteries when mains power is unavailable. Accessories include optional 4-way barndoors for contouring and control of the LED1000’s 45-degree beam angle. A carrying case is included.

LED500 Pro Daylight LED Light with V-Mount Battery Plate
At just 4.0 lb the LED500 Pro Daylight LED Light is an ideal choice for location work, interviews and small sets where color accuracy, control and flicker-free output are of major importance. A daylight-balanced color temperature of 5600K means users can quickly and easily match natural lighting as well as other lights. Dimming is equally convenient via another knob that adjusts the light intensity from 0-100% with negligible color shift. The LED500 outputs the hot light equivalent of 500W but you won’t have to be concerned about the talent’s comfort - the panel runs barely warm to the touch. And the low electrical draw of just 30W means a timely return on your investment.

The durable anodized aluminum frame is supported by an oversized, U-shaped yoke with locking knobs on each side and a standard 5/8” receiver. The LED500 can be used worldwide, powered by a 100-240 VAC adapter or by optional 12 VDC batteries.

LED160 5600K Daylight On-Camera Light (Aluminum, Blue)
This is a 5600K daylight-balanced Dracast LED160 On-Camera Light, housed in an aluminum, blue case and measures a compact 6 x 4”. It features a high, 160W equivalent light output with a 45 flood beam angle. It’ll give you approximately 20 ft effective distance.

DR-CH2V Dual V-Mount Battery Charger
The portable DR-CH2V Dual V-Mount Battery Charger from Dracast allows you to simultaneously charge two V-Mount batteries (or a single battery) from 90 to 240 VAC sources. It features a top handle for easy transport and built-in capacity management system to ensure fast charging. The charger will automatically shutdown once the batteries reach their full charge. Additionally, the charger can function as a portable AC to DC power adapter, taking the AC power input and outputting 15 VDC at 4A via a 4-pin XLR connector. The output is only active when no batteries are attached.

Barndoors for LED1000
These Barndoors from Dracast are made for the LED1000, and slide into a slot on the front of the LED light. They are used to control the spread of the light and prevent unwanted light spill and they feature a filter holder.

Barndoors for LED500
These Barndoors from Dracast are made for the LED500, and slide into a slot on the front of the LED light. They are used to control the spread of the light and prevent unwanted light spill and they feature a filter holder.

Filter Frame for LED1000 Light
The Dracast Filter Frame for LED1000 allows the use of Dracast or other brand diffusion, CTO, CTB or effects filters with the fixture. Constructed of lightweight aluminum, the frame drops into the fixture’s accessory channel. It has a frame lock to prevent filter slippage.

Filter Frame for LED500 Light
The Dracast Filter Frame for LED500 allows the use of Dracast or other brand diffusion, CTO, CTB or effects filters with the fixture. Constructed of lightweight aluminum, the frame drops into the fixture’s accessory channel. It has a frame lock to prevent filter slippage.

Filter Set for LED1000 Panel (5-Piece)
The Dracast 5 Filter Set for LED1000 Light contains rigid light modifiers that measure approximately 12 x 12” to match the fixture. Included in the kit are one each: 1/4, 1/2, and Full CTO filters to change the light’s daylight balance to tungsten. A Half White Diffusion and an Opal Frost Diffusion Filter are also included to soften the light’s output.

Filter Set for LED500 Panel (5-Piece)
The Dracast 5 Filter Set for LED500 Light contains rigid light modifiers that measure approximately 12 x 6” to match the fixture. Included in the kit are one each: 1/4, 1/2, and Full CTO filters to change the light’s daylight balance to tungsten. A Half White Diffusion and an Opal Frost Diffusion Filter are also included to soften the light’s output.

In the Box
Two LED1000 Daylight LED Lights
LED500 Daylight LED Light
LED160 Daylight LED Light
Three DR-90S Batteries
Sony L-Series Battery
Battery Chargers
Three Filter Frames and Packs
Three Barndoors
Three Light Stands

Technical Specifications

Light Fixture
Beam Angle: 45
Color Temperature: 5600K
Color Accuracy Standard: CRI 95
Cooling System: None
Dimming: Yes, 0 to 100%
Display: None
Housing Material: Aluminum
Fixture Dimensions: 12.0 x 12.0 x 2.0" / 305.0 x 305.0 x 51.0 mm
Fixture Weight: 5.5 lb / 2.5 kg
Connectors
Battery Plate: 1 x V-Mount
Mounting
Yoke Mount: TVMP/ Hex Bolt
Fixture Mount: 5/8" Receiver
Accessory Mount: None
Power
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
DC Input Power: 12 to 14.8 VDC
Power Source: AC Adapter, External Battery
Max Power Consumption: 60 W
Physical
IP Rating: IP20
