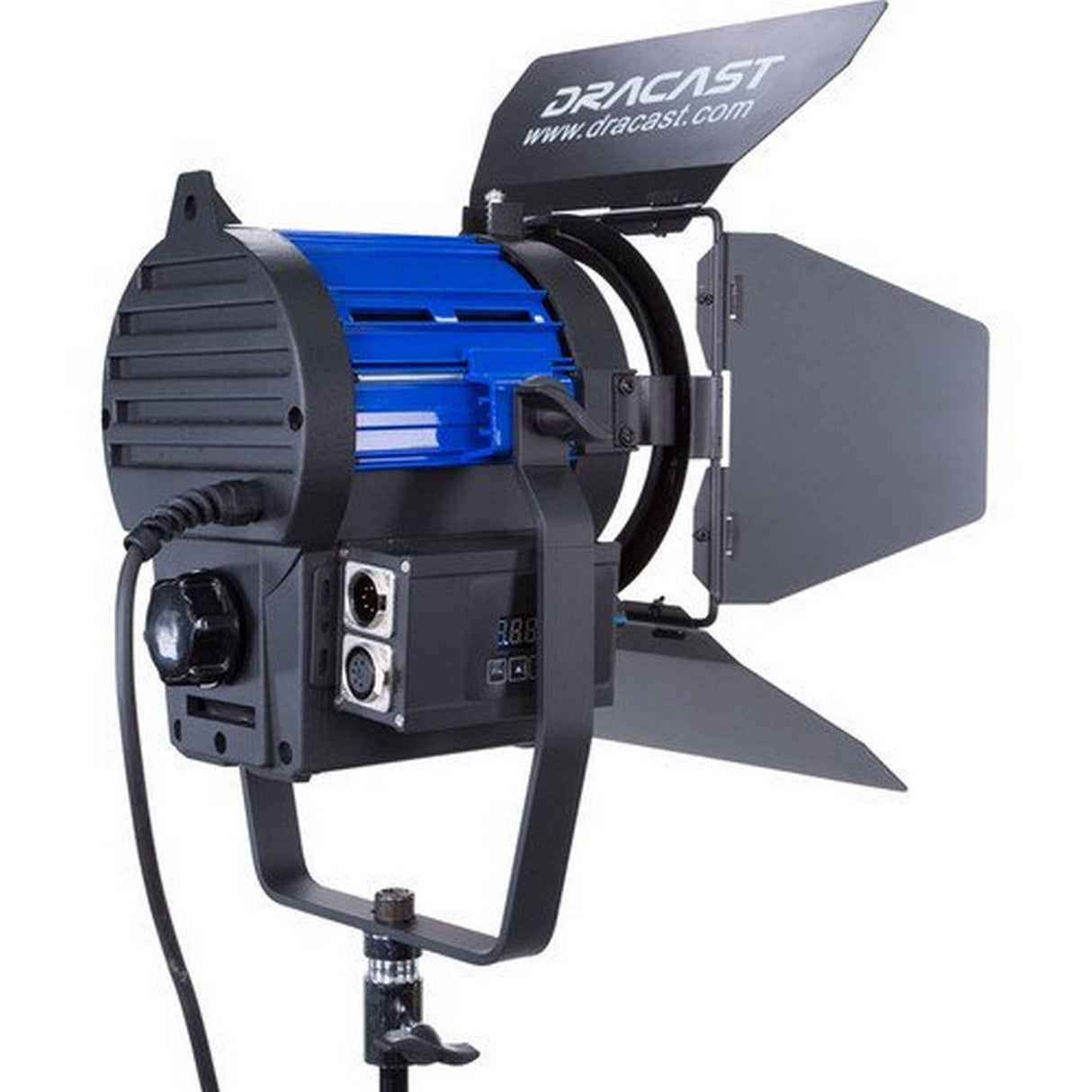

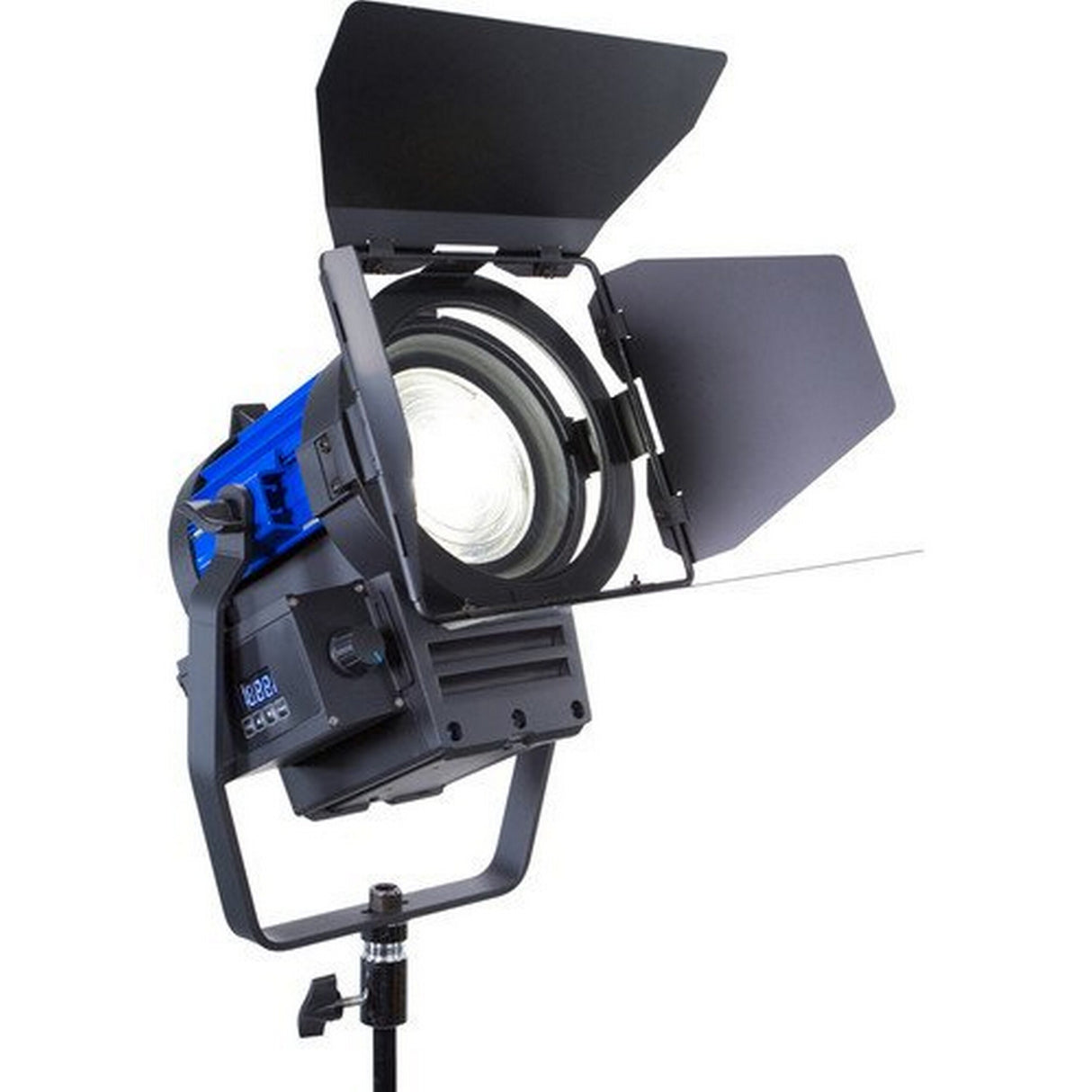

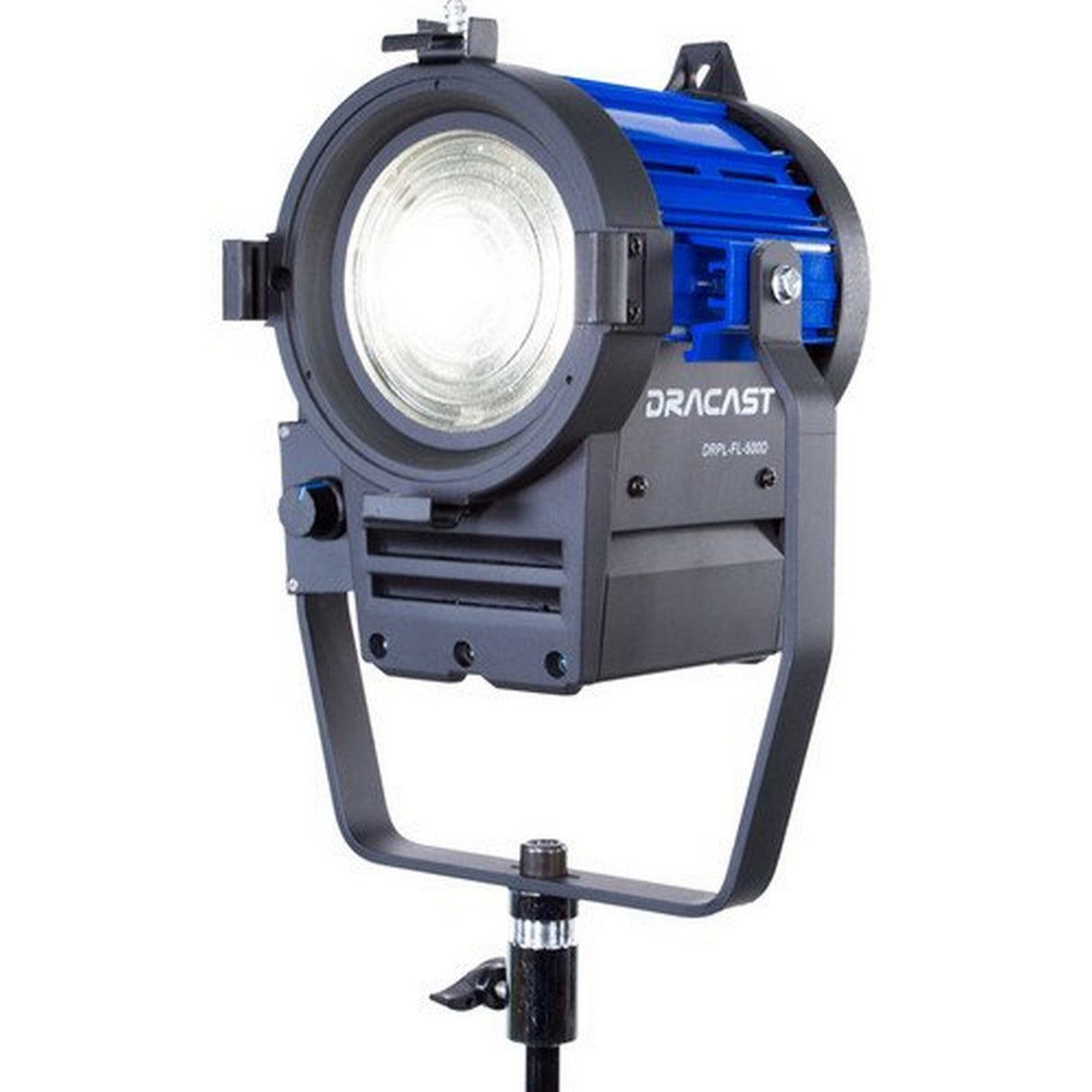

Dracast DRLF500PT Fresnel Studio Series LED500 Tungsten Light
Create a focused beam of light with the Fresnel Studio Series LED500 Tungsten Light from Dracast which is equipped with a 4” lens that can be adjusted to change the beam angle from 15-60 for both flood and spot lighting. This controls the light from the surface-mounted LEDs which sport a high CRI of 95 for accurate color reproduction. Also, this tungsten-balanced fixture offers a color temperature of 3200K and can be dimmed continuously from 0-100% using either on-board controls or through the 5-pin XLR connections.
Benefitting from the use of LEDs, the Fresnel Studio LED500 uses a silent passive heat sink cooling system and only draws 50 W of power while maintaining a high output. It will run anywhere in the world thanks to a universal 110-240 VAC power supply and 36 VDC input. The light also features a durable aluminum construction and comes with 4-way barndoors and a mounting yoke with 5/8” baby pin receiver that allows users to tilt it up to 90.
In the Box
Dracast Fresnel Studio LED500 Tungsten LED Light 4”
4-Way Barndoors
5/8” Baby Pin Mounting Yoke
AC Power Cable
Limited 1-Year Warranty
Key Features
- 15-60 Adjustable Beam Angle
- Surface-Mounted LEDs with CRI of 95
- Color Temperature: 3200K
- 0-100% Dimming; On-Board Manual Controls
- 5-Pin XLR DMX Input & Output
- Passive Heat Sink Cooling System
- Power Consumption: 50 W
- 4-Way Barndoors & 5/8” Mounting Yoke
- Aluminum Construction
- 110-240 VAC, 50-60 Hz, 36 VDC
Technical Specifications
Light Fixture
Beam Angle: 15 to 60
Color Temperature: 3200K
Color Accuracy Standard: CRI 95
Cooling System: None
Dimming: Yes, 0 to 100%
Display: None
Housing Material: Aluminum
Fixture Dimensions: 9.2 x 8.0 x 14.0" / 23.5 x 20.3 x 35.6 cm (Including Yoke)
Fixture Weight: 9.1 lb / 4.1 kg
Connectors
DMX Connector: 5-Pin XLR
Lens
Diameter: 4" / 7.6 cm
Mounting
Yoke Mount: TVMP / Hex Bolt
Fixture Mount: 5/8" Receiver
Accessory Mount: None
Power
AC Input Power: 110 to 250 VAC, 50 / 60 Hz at 2 A
DC Input Power: 36 VDC
Power Source: AC Adapter
Max Power Consumption: 50W
Physical
IP Rating: IP20
Packaging Info
Package Weight: 11.6 lb
Box Dimensions (LxWxH): 15.6 x 12.1 x 11.8"
