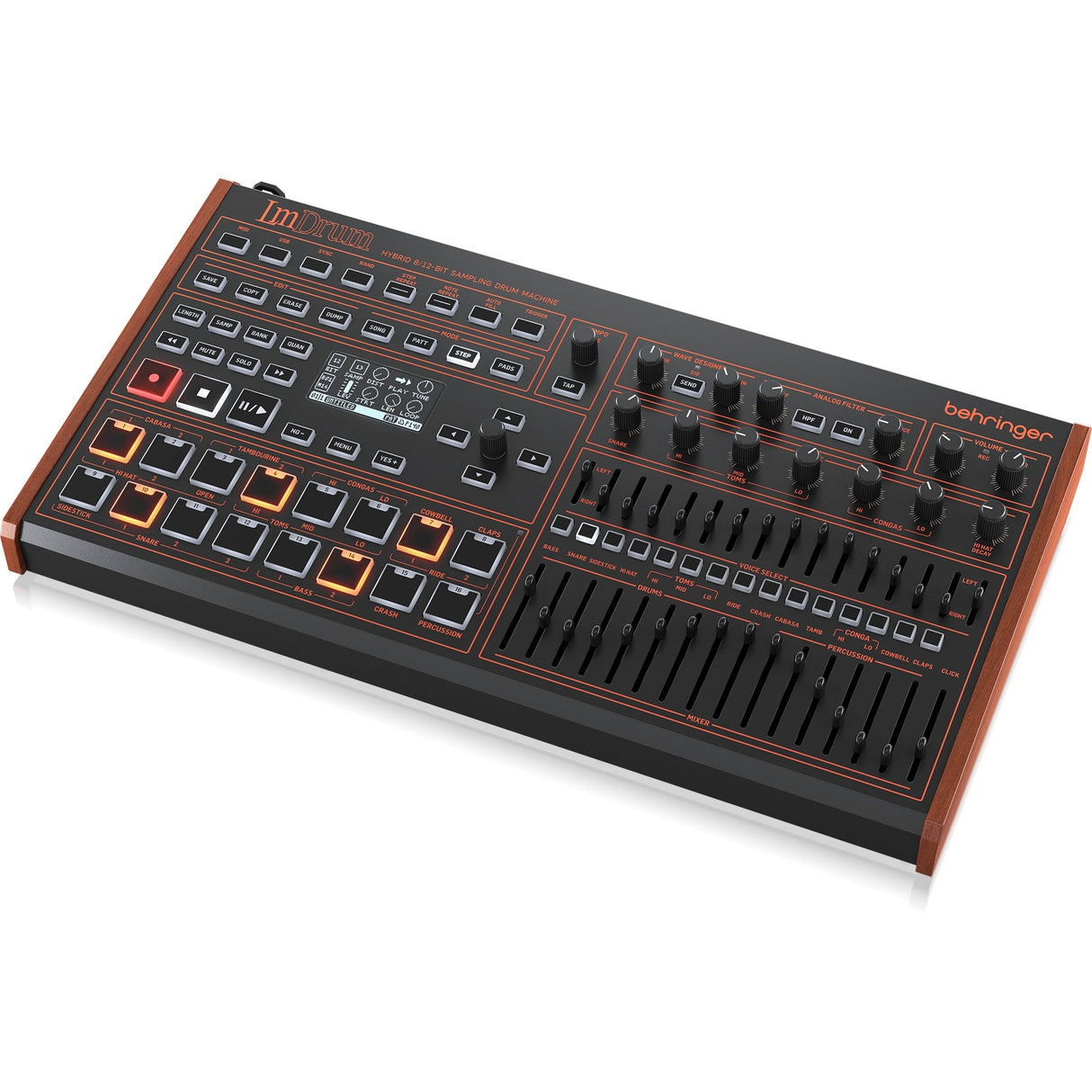

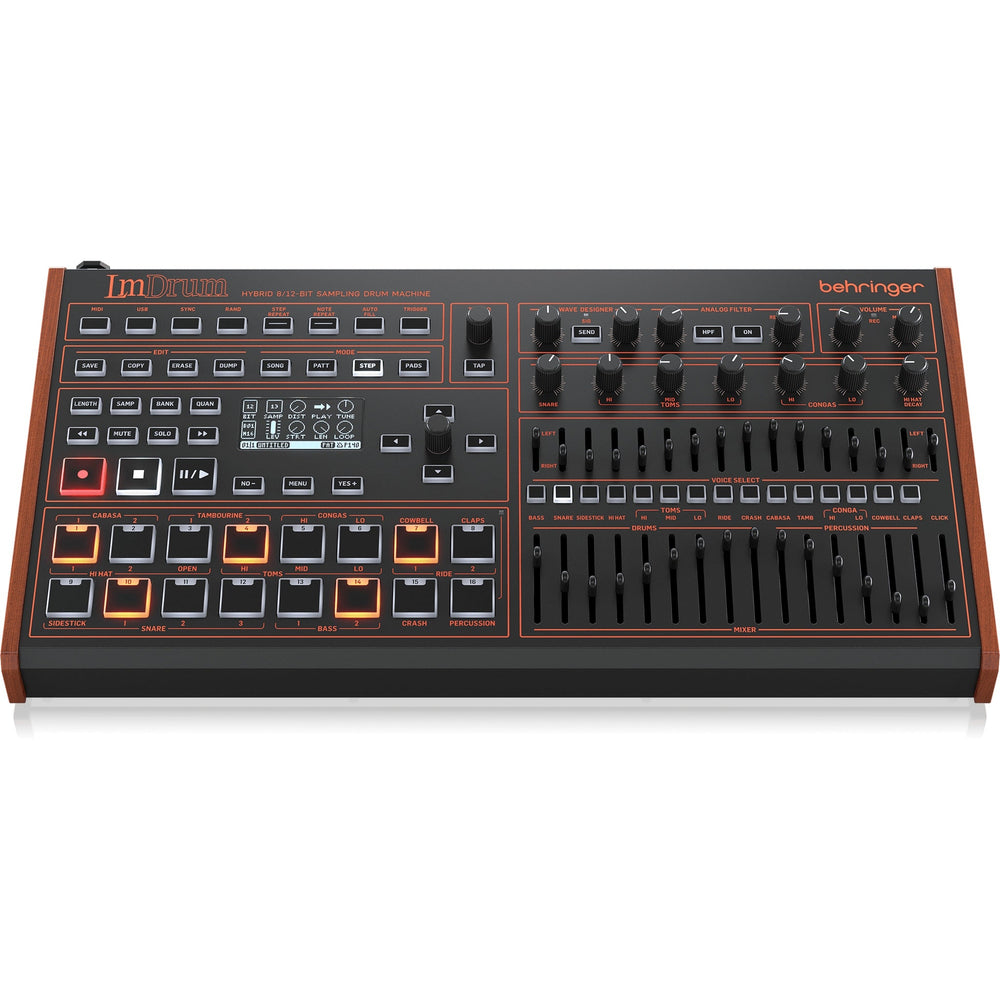

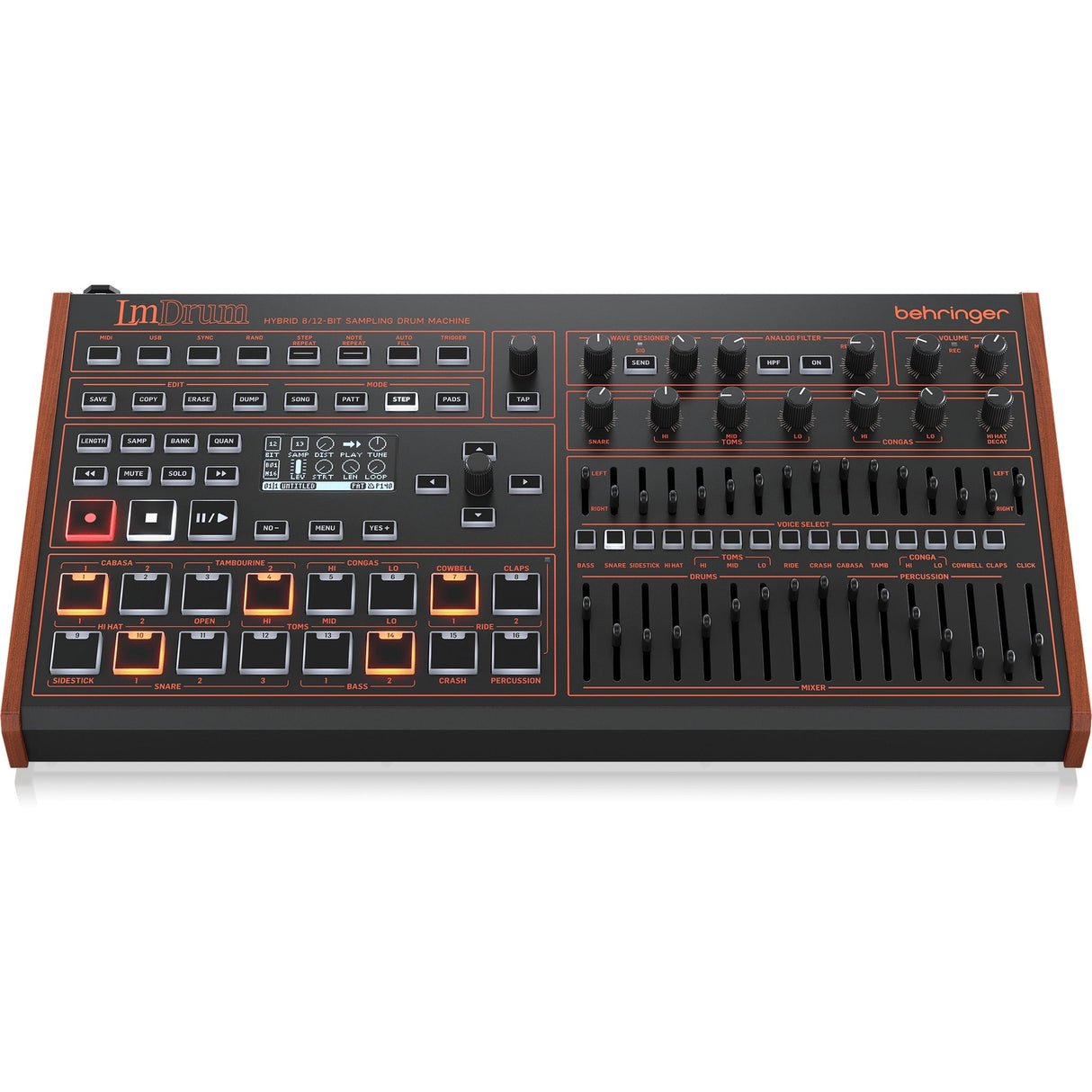

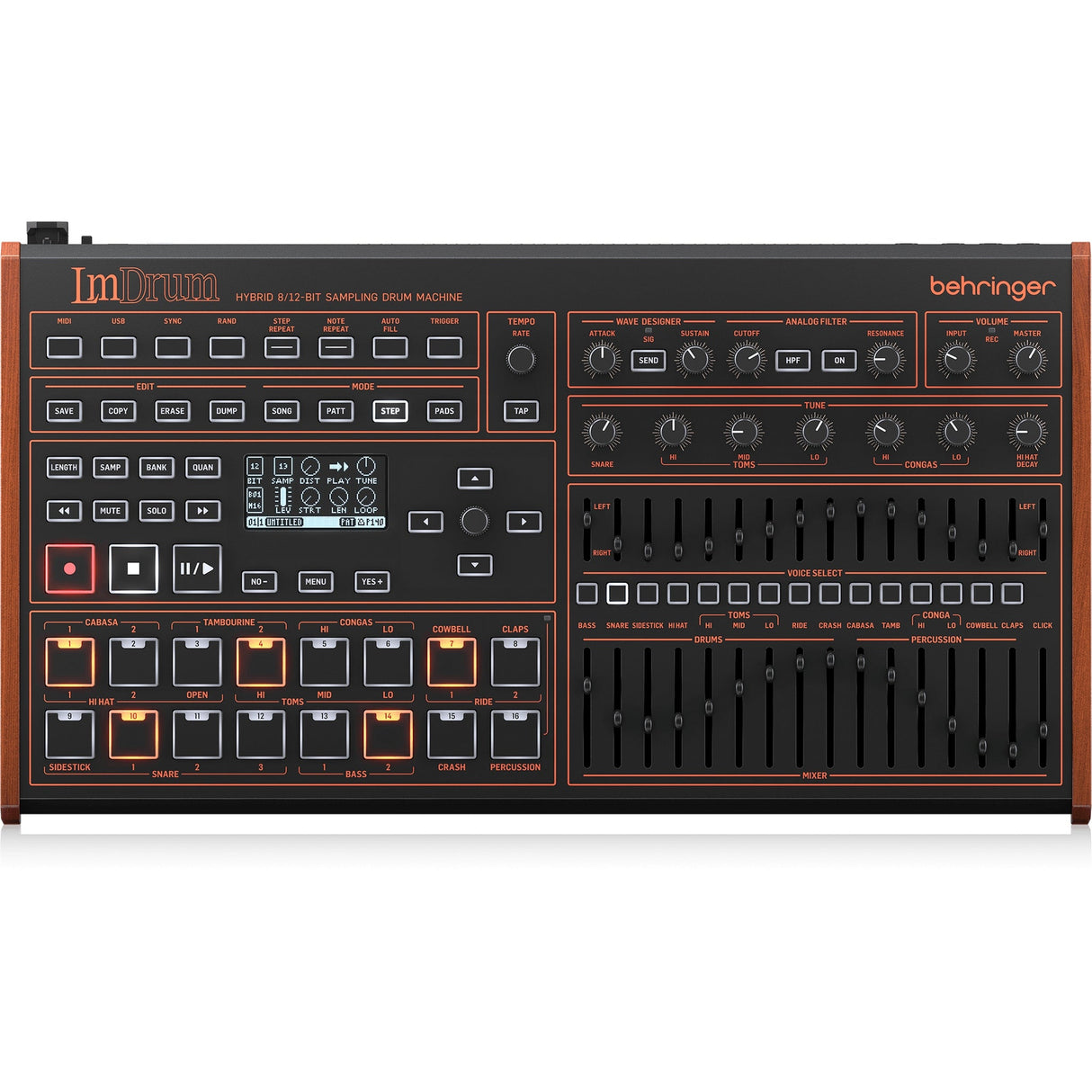

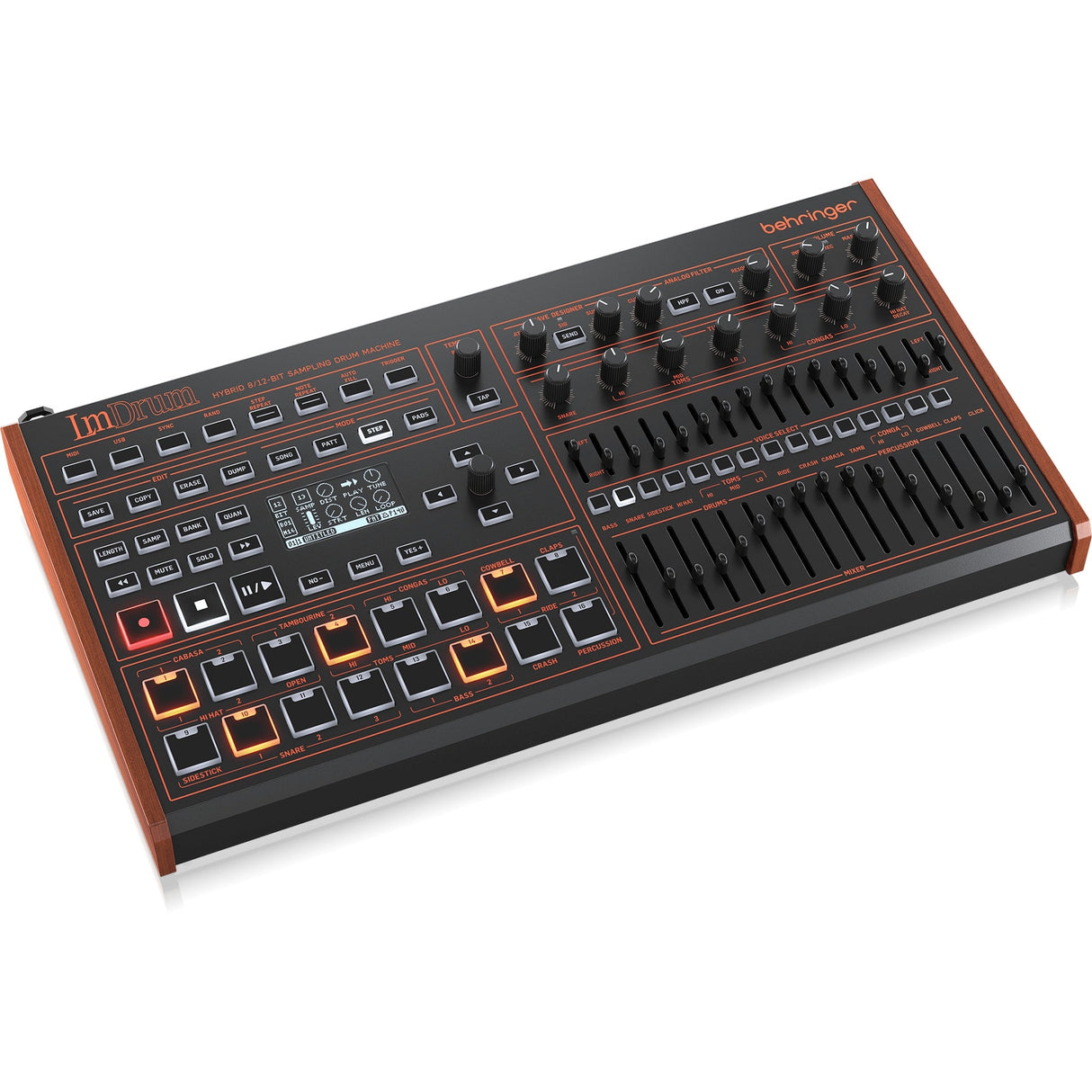

Behringer LM DRUM Hybrid Sampling Drum Machine with 64-Step Sequencer and Analog Filter

Behringer LM DRUM Hybrid Sampling Drum Machine with 64-Step Sequencer and Analog Filter

The Behringer LM DRUM is a powerful hybrid sampling drum machine designed to recreate the iconic sounds of classic 1980s drum machines while adding modern sequencing and sound design capabilities. Featuring authentic 8-bit and 12-bit sampling engines along with classic analog circuitry, the LM DRUM delivers the unmistakable punch and character of vintage drum machines with modern production flexibility.

Equipped with 109 authentic drum sounds inspired by legendary machines such as the LM1, LM2, and LM9000, the LM DRUM also allows musicians to record and store their own samples. Its advanced 64-step sequencer supports poly-meter, step-repeat, note-repeat, track mute/solo, and real-time triggering, making it ideal for studio production, live performance, and creative beat programming.

Key Features

• Hybrid Sampling Drum Engine: Authentic 8-bit and 12-bit sampling sound engine recreates classic vintage drum machine character.
• 109 Classic Drum Sounds: Includes iconic sounds inspired by LM1, LM2, LM9000 and other classic machines.
• Sample Recording: Record external audio through the line input and store your own custom samples.
• Analog Signal Path: Features original 3320 VCF filter and 2164 VCA circuitry for warm analog tone.
• 16-Voice Architecture: Independent level and pan control for each voice.
• 64-Step Sequencer: Supports polymeter, step repeat, note repeat, real-time triggering and advanced pattern control.
• Wave Designer and Analog Filter: Integrated FX bus provides additional shaping and sound design tools.
• Velocity-Sensitive Pads: 16 drum pads with aftertouch for expressive live performance.
• Multi-Output Routing: 16 independent analog outputs for external processing or multi-track recording.
• Extensive Connectivity: MIDI In/Out/Thru, USB synchronization and multiple clock sync options.
• Advanced Song and Pattern Modes: Store up to 8 songs and 128 patterns with powerful arrangement capabilities.
• High-Visibility Display: Clear LCD display for easy editing and programming.

Technical Specifications

Architecture
16 voices

Sound Engine
Hybrid sampling (8-bit / 12-bit)

Drum Sounds
109 built-in sounds including LM1, LM2 and LM9000 style kits

Sequencer
64-step drum sequencer

Pads
16 velocity-sensitive pads with aftertouch

MIDI Connectivity
MIDI In: 5-pin DIN
MIDI Out: 5-pin DIN
MIDI Thru: 5-pin DIN

USB
USB 2.0 Type-B (class compliant)

Sync
3.5 mm TS Sync In
3.5 mm TS Sync Out

Trigger Outputs
3 × 3.5 mm TS trigger outputs

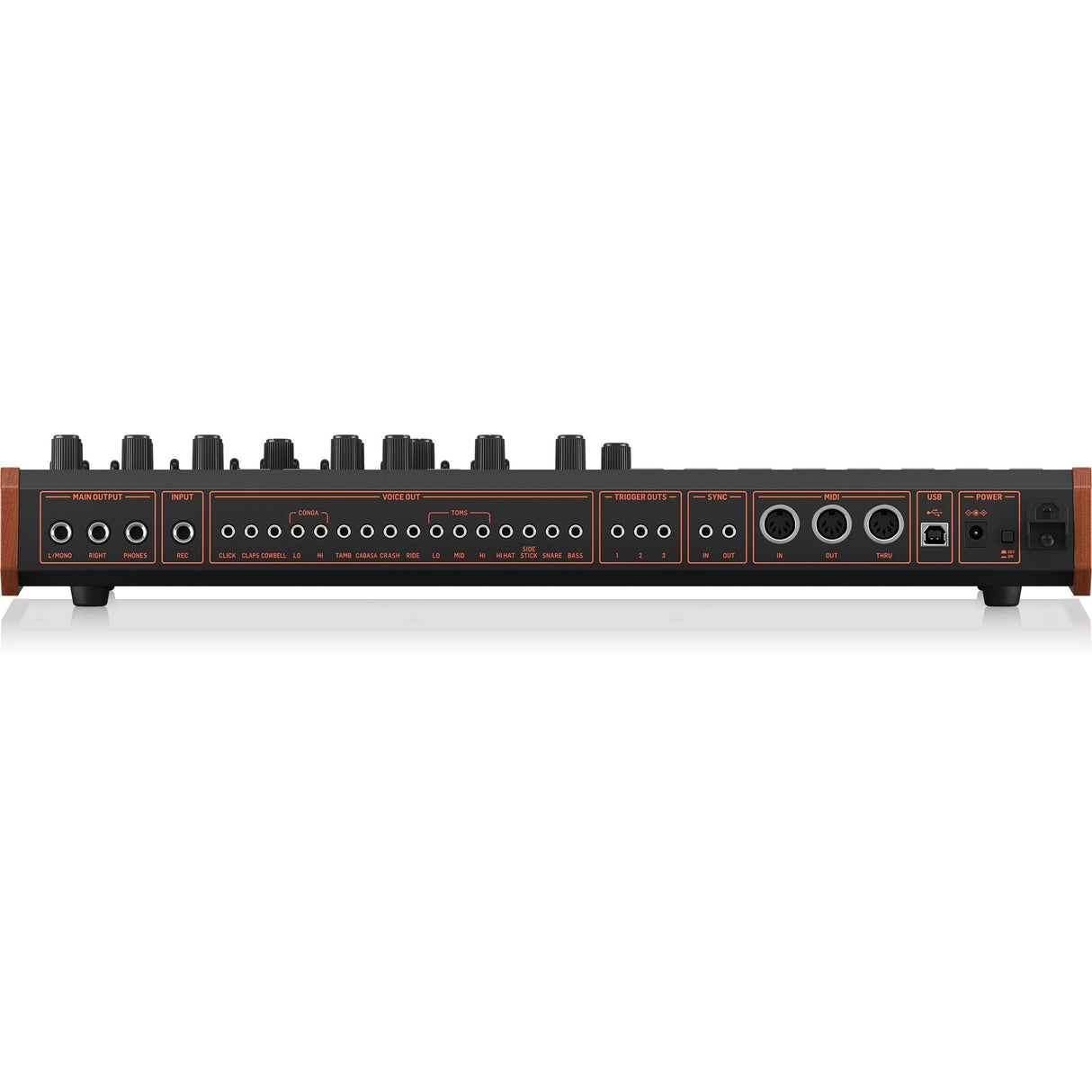

Audio Outputs
2 × 6.35 mm TS main outputs
1 × 6.35 mm TRS headphone output

Audio Input
1 × 6.35 mm TS line input

Display
LCD graphic display

Power Requirements
12 V DC

Current Consumption
2000 mA

Standard Operating Temperature
5°C - 45°C (41°F - 113°F)

Dimensions (H x W x D)
73 x 264 x 479 mm
2.9" x 10.4" x 18.9"

Weight
6.9 lbs (3.12 kg)

What’s in the Box

(1) Behringer LM DRUM Drum Machine
(1) Power adapter
User documentation
