DVDO 2-Host USB-C and USB 3.2 Gen 1 100m Extender over HDBaseT - Wall Plate Transmitter & Box Receiver
DVDO Xtend USB 3.2 Gen 1 Extenders (USB-C to USB-A/USB-B) - Ideal for Professional USB Connectivity Solutions
The DVDO Xtend USB 3.2 Gen 1 Extenders offer the perfect solution for extending high-speed USB connections across long distances. With support for USB 3.2 Gen 1, these extenders deliver transmission rates of up to 5Gbps, ensuring fast and efficient data transfer. Available in three configurationsāDVDO-Xtend-USBC-USB-WB-1, DVDO-Xtend-USBC-USB-BB-1, and DVDO-Xtend-USBC-USB-WW-1āeach model is designed to meet diverse connectivity needs in professional settings. Whether you're running a cable through a large building or simply need a robust solution for remote connections, these extenders offer versatility and reliability.
The DVDO Xtend extenders are engineered to transmit USB signals over impressive distances. These extenders can reach up to 328 feet (100 meters) using CAT6a (F/FTP) cables, ensuring stable connections even in large-scale installations. For shorter distances, the extenders are compatible with USB cables, offering transmission distances of up to 4.9 feet (1.5 meters). With these options, users are guaranteed flexibility to suit various installation environments, from home offices to enterprise-level setups.
These extenders feature robust ESD protection, complying with IEC 61000-4-2 standards for both air-gap and contact discharges. This ensures that your sensitive data and equipment remain safe from electrical surges and environmental factors. The DVDO Xtend series is built with both functionality and durability in mind, incorporating metal enclosures and plastic front panels where necessary, offering protection against wear and tear in high-traffic areas.
Key Features
- Transmission Distance: 328 feet (100 meters) via CAT6a cable, 4.9 feet (1.5 meters) via USB cable
- High-Speed Data Transfer: Supports USB 3.2 Gen 1 protocol with up to 5Gbps transmission rate
- Versatile Connectivity: Various input/output options including USB-A, USB-B, USB-C, and HDBT-USB3
- Durable Design: Metal enclosures for robust and secure installations
- ESD Protection: Complies with IEC 61000-4-2 standards for Ā±8kV air-gap and Ā±4kV contact discharge
- Easy Control: RS-232 control ports for convenient management
- Multiple Models: Available in three different models for diverse installation needs
Technical Specifications
Shared Features
USB Protocol: USB 3.2 Gen 1
Transmission Rate: Up to 5Gbps
ESD Protection: IEC 61000-4-2: Ā±8kV (Air-gap discharge), Ā±4kV (Contact discharge)
Power Supply:
Input: AC 100~240V 50/60Hz
Output: DC 24V/3.75A
Power Consumption: 62W (Max)
Operating Temperature: 32Ā°F ~ 104Ā°F
Storage Temperature: -4Ā°F ~ 140Ā°F
Operating Humidity: 20%~80% relative humidity, non-condensing
Storage Humidity: 10%~90% relative humidity, non-condensing

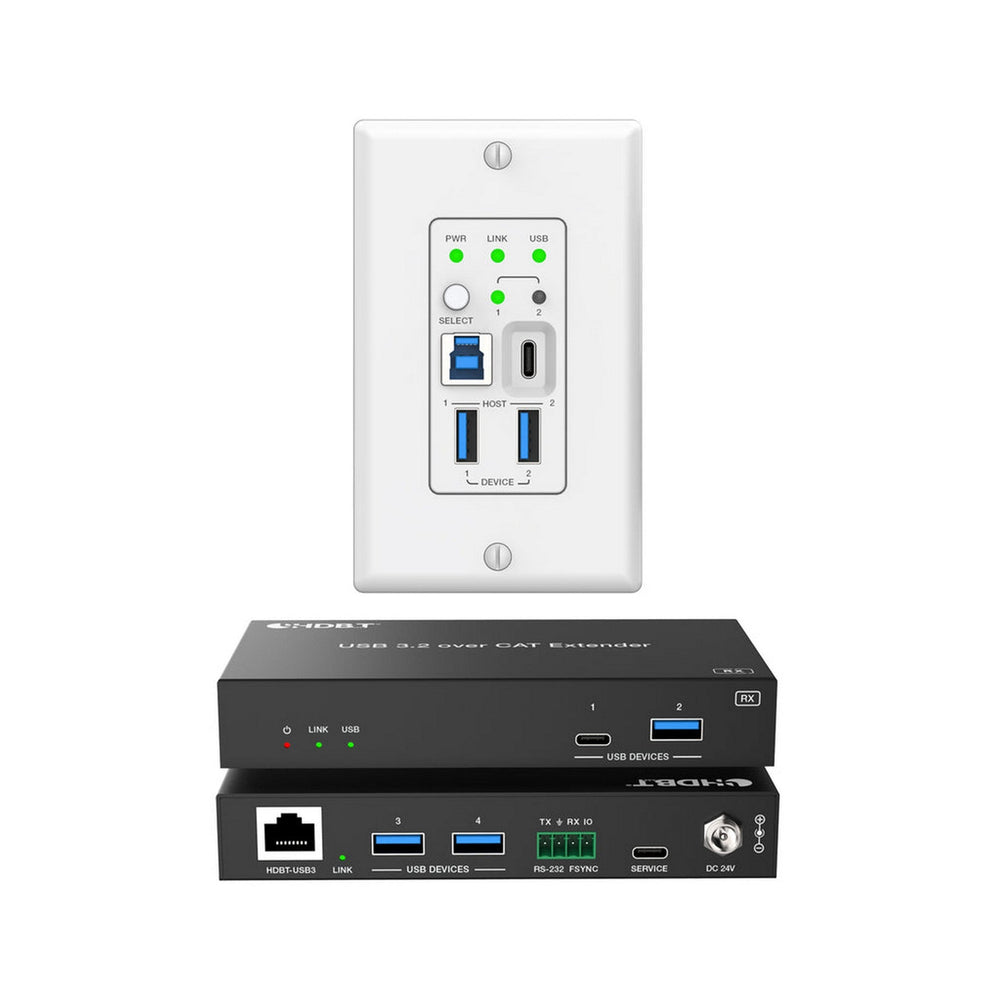

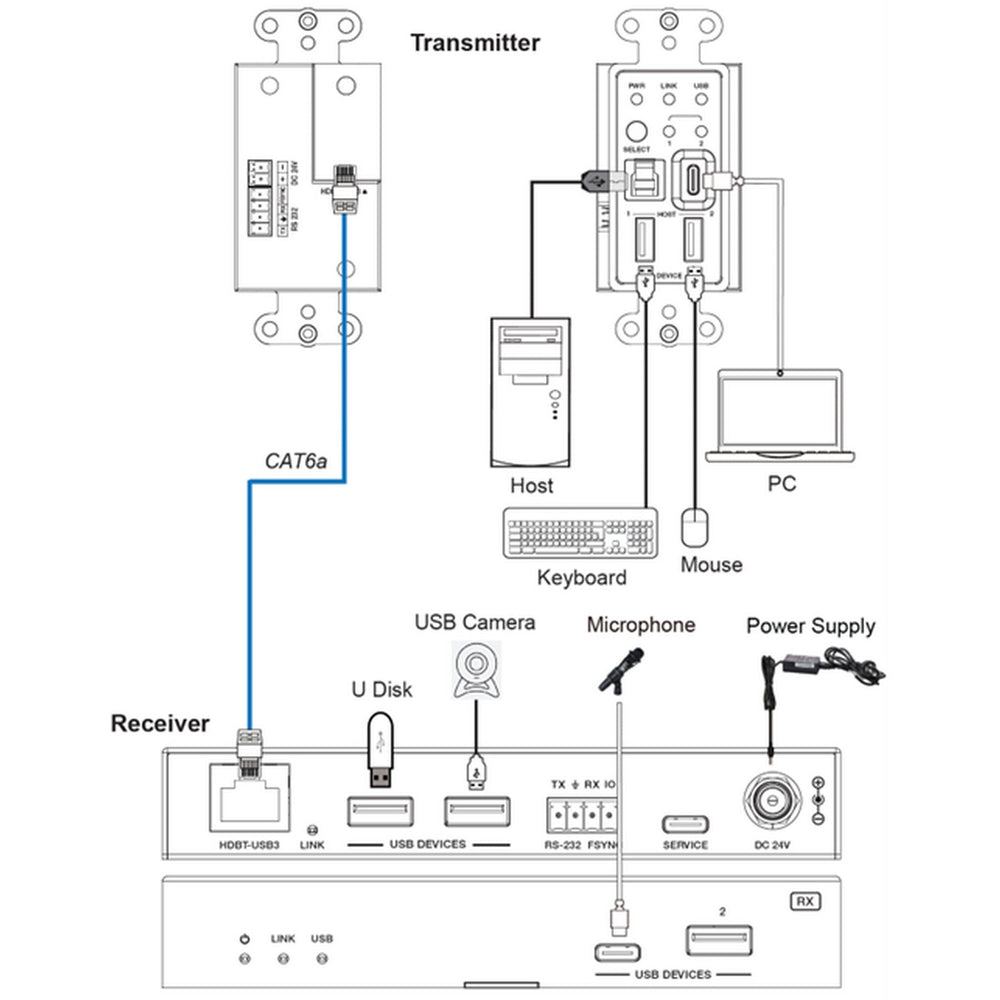

DVDO-Xtend-USBC-USB-WB-1
Transmission Distance: 328 feet (100 meters) via CAT6a cable, 4.9 feet (1.5 meters) via USB cable
Connections:
Transmitter:
1Ć HOST 1 [USB Type C, 24-pin female]
1Ć HOST 2 [USB Type B, 9-pin female]
Output: 2Ć USB-A DEVICE [USB Type A, 9-pin female]
1Ć HDBT-USB3 [RJ45 connector, 24V PoC]
Control: 1Ć RS-232 [3pin-3.5mm phoenix connector]
1Ć FSYNC [1pin-3.5mm phoenix connector]
1Ć SERVICE [USB Type C, firmware update port]
Receiver:
Input: 1Ć HDBT-USB3 [RJ45 connector, 24V PoC]
Output: 3Ć USB-A DEVICE [USB Type A, 9-pin female]
1Ć USB-C DEVICE [USB Type C, 24-pin female]
Control: 1Ć RS-232 [3pin-3.5mm phoenix connector]
1Ć FSYNC [1pin-3.5mm phoenix connector]
1Ć SERVICE [USB Type C, firmware update port]
Mechanical:
Housing: Transmitter: Plastic Front Panel + Metal Enclosure; Receiver: Metal Enclosure
Color: Transmitter: White + Black; Receiver: Black
Dimensions: Transmitter: 1.8ā W x 1.7ā D x 4.1ā H; Receiver: 5.5ā W x 2.9ā D x 0.9ā H
Weight: Transmitter: 0.3 lbs; Receiver: 0.7 lbs

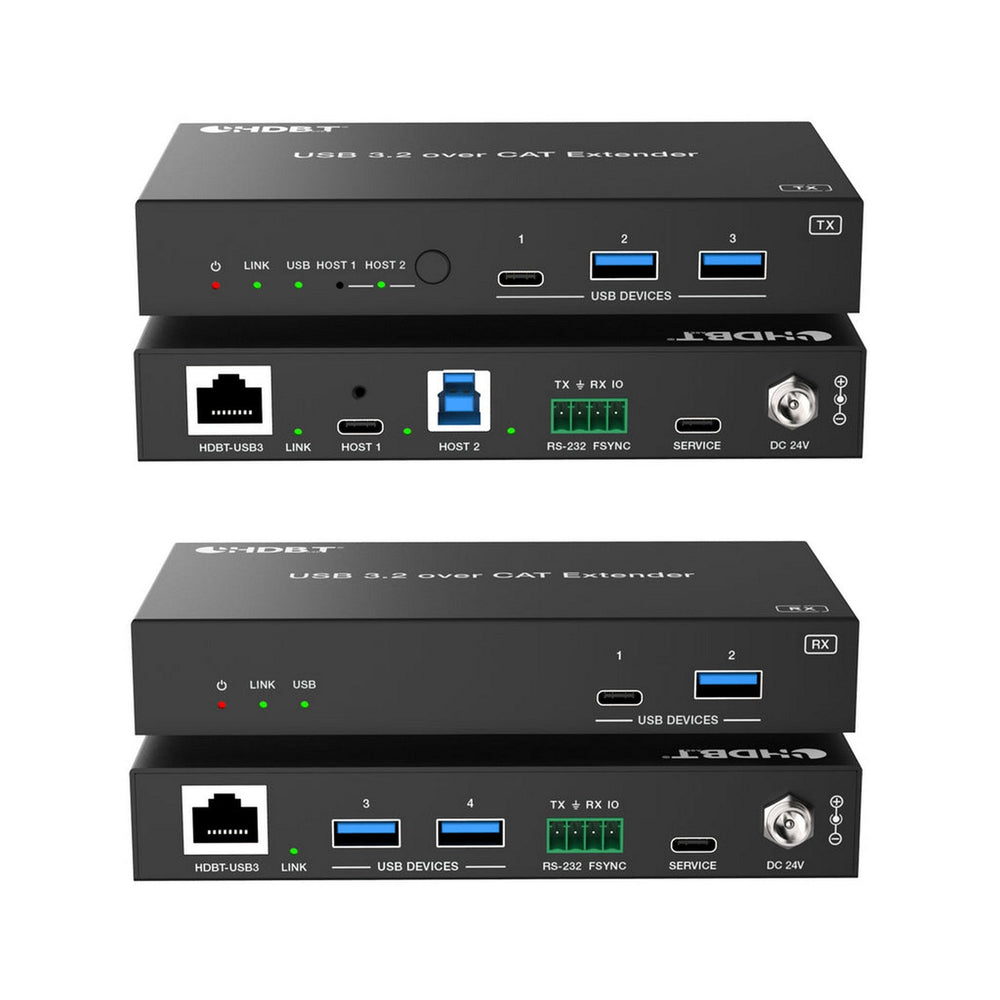

DVDO-Xtend-USBC-USB-BB-1
Transmission Distance: 328 feet (100 meters) via CAT6a cable, 4.9 feet (1.5 meters) via USB cable
Connections:
Transmitter:
1Ć HOST 1 [USB Type C, 24-pin female]
1Ć HOST 2 [USB Type B, 9-pin female]
Output: 1Ć USB-C DEVICE [USB Type C, 24-pin female]
2Ć USB-A DEVICE [USB Type A, 9-pin female]
1Ć HDBT-USB3 [RJ45 connector, 24V PoC]
Control: 1Ć RS-232 [3pin-3.5mm phoenix connector]
1Ć FSYNC [1pin-3.5mm phoenix connector]
1Ć SERVICE [USB Type C, firmware update port]
Receiver:
Input: 1Ć HDBT-USB3 [RJ45 connector, 24V PoC]
Output: 3Ć USB-A DEVICE [USB Type A, 9-pin female]
1Ć USB-C DEVICE [USB Type C, 24-pin female]
Control: 1Ć RS-232 [3pin-3.5mm phoenix connector]
1Ć FSYNC [1pin-3.5mm phoenix connector]
1Ć SERVICE [USB Type C, firmware update port]
Mechanical:
Housing: Metal Enclosure
Color: Black
Dimensions: 5.5ā W x 2.9ā D x 0.9ā H
Weight: Transmitter: 0.7 lbs; Receiver: 0.7 lbs

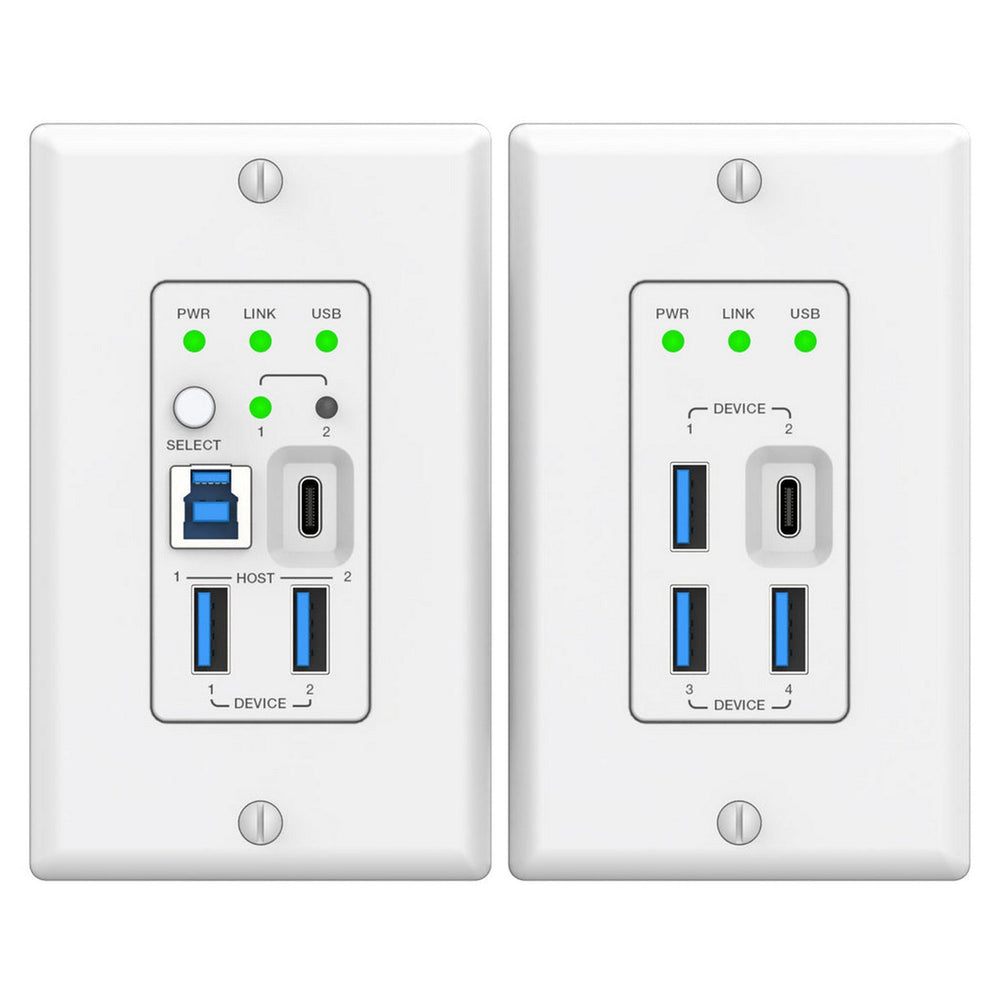

DVDO-Xtend-USBC-USB-WW-1
Transmission Distance: 328 feet (100 meters) via CAT6a cable, 4.9 feet (1.5 meters) via USB cable
Connections:
Transmitter:
1Ć HOST 1 [USB Type C, 24-pin female]
1Ć HOST 2 [USB Type B, 9-pin female]
Output: 2Ć USB-A DEVICE [USB Type A, 9-pin female]
1Ć HDBT-USB3 [RJ45 connector, 24V PoC]
Control: 1Ć RS-232 [3pin-3.5mm phoenix connector]
1Ć FSYNC [1pin-3.5mm phoenix connector]
1Ć SERVICE [USB Type C, firmware update port]
Receiver:
Input: 1Ć HDBT-USB3 [RJ45 connector, 24V PoC]
Output: 3Ć USB-A DEVICE [USB Type A, 9-pin female]
1Ć USB-C DEVICE [USB Type C, 24-pin female]
Control: 1Ć RS-232 [3pin-3.5mm phoenix connector]
1Ć FSYNC [1pin-3.5mm phoenix connector]
1Ć SERVICE [USB Type C, firmware update port]
Mechanical:
Housing: Plastic Front Panel + Metal Enclosure
Color: White + Black
Dimensions: 1.8ā W x 1.7ā D x 4.1ā H
Weight: Transmitter: 0.3 lbs; Receiver: 0.3 lbs
What's Included
DVDO-Xtend-USBC-USB-WB-1
- 1Ć USB 3.2 Gen 1 Wall-Plate Extender (Transmitter)
- 1Ć USB 3.2 Gen 1 Box Extender (Receiver)
- 1Ć 24V/3.75A Power Supply
- 1Ć 2pin-3.5mm Phoenix Connector (Male)
- 2Ć 4pin-3.5mm Phoenix Connector (Male)
- 2Ć Mounting Ear
- 4Ć Machine Screw (KM3*4)
- 2Ć Machine Screw (6#-32*3ā4)
- 1Ć Top Panel
- 1Ć User Manual
DVDO-Xtend-USBC-USB-BB-1
- 1Ć USB 3.2 Gen 1 Extender (Transmitter)
- 1Ć USB 3.2 Gen 1 Extender (Receiver)
- 1Ć 24V/3.75A Locking Power Supply
- 2Ć 4pin-3.5mm Phoenix Connector (Male)
- 4Ć Mounting Ear
- 8Ć Machine Screw (KM3*4)
- 1Ć User Manual
DVDO-Xtend-USBC-USB-WW-1
- 1Ć USB 3.2 Gen 1 Wall-Plate Extender (Transmitter)
- 1Ć USB 3.2 Gen 1 Wall-Plate Extender (Receiver)
- 1Ć 24V/3.75A Power Supply
- 1Ć 2pin-3.5mm Phoenix Connector (Male)
- 2Ć 4pin-3.5mm Phoenix Connector (Male)
- 2Ć Mounting Ear
- 4Ć Machine Screw (KM3*4)
- 2Ć Machine Screw (6#-32*3ā4)
- 1Ć Top Panel
- 1Ć User Manual
