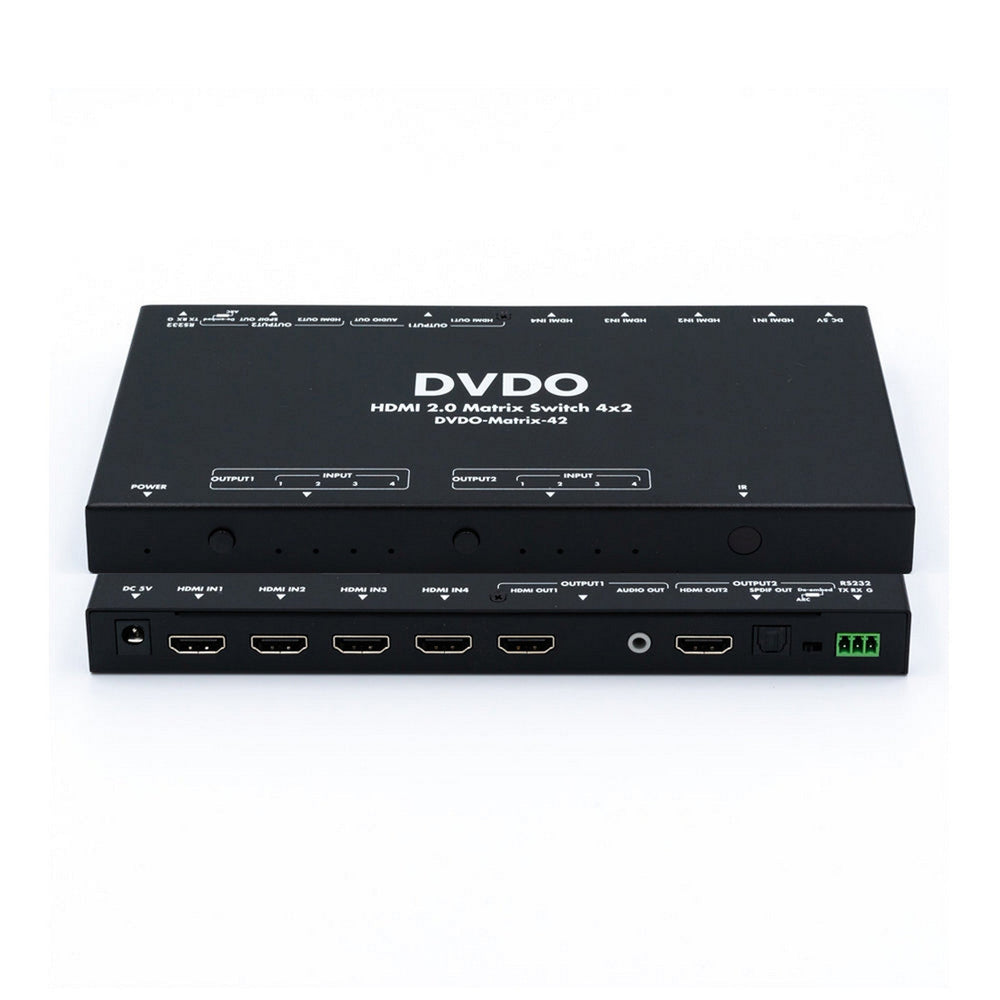

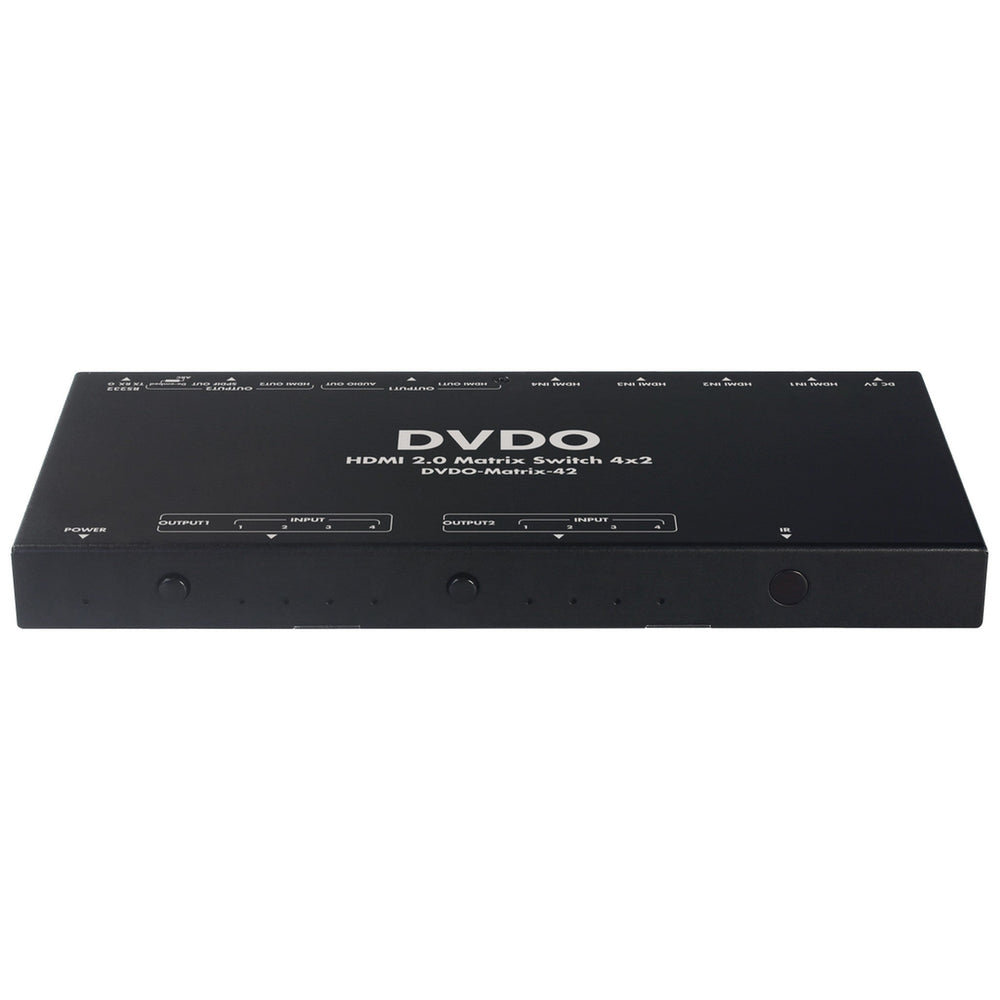

DVDO 4K 4x2 HDMI Matrix Switcher

Experience unparalleled flexibility and performance with the DVDO Matrix 42, a premium 4K HDMI matrix switcher engineered to deliver exceptional video quality and seamless operation. Ideal for home theaters, professional AV setups, and digital signage applications, the Matrix 42 offers advanced switching capabilities with support for 4K Ultra HD resolutions, ensuring that you enjoy the highest clarity and detail in your visual content.

The DVDO Matrix 42 features a sophisticated design that allows users to connect multiple HDMI sources and outputs, switching between them effortlessly. With the ability to handle up to four HDMI sources and four outputs, this switcher ensures that you can manage your multimedia setup with ease. The Matrix 42 supports high-definition video formats, including HDR10 and Dolby Vision, providing stunning visuals with vibrant colors and deep contrast.

Equipped with intuitive controls and a user-friendly interface, the Matrix 42 makes it simple to select the desired input and output configurations. The switcher also includes advanced signal processing technology to maintain the integrity of your video signal, minimizing any potential degradation. Whether you're upgrading your home entertainment system or designing a commercial AV setup, the DVDO Matrix 42 is designed to meet your needs with precision and reliability.

Key Features

• Supports 4K Ultra HD resolution with HDR10 and Dolby Vision for superior picture quality.
• Allows connection of up to 4 HDMI sources and 4 HDMI outputs for versatile configuration.
• Advanced signal processing technology ensures minimal signal degradation.
• Intuitive control interface for easy input and output management.
• Ideal for home theaters, professional AV installations, and digital signage applications.

Technical Specifications (Specs)

Dimensions
8.66" x 0.83" x 3.94"
Weight
1.06 lbs

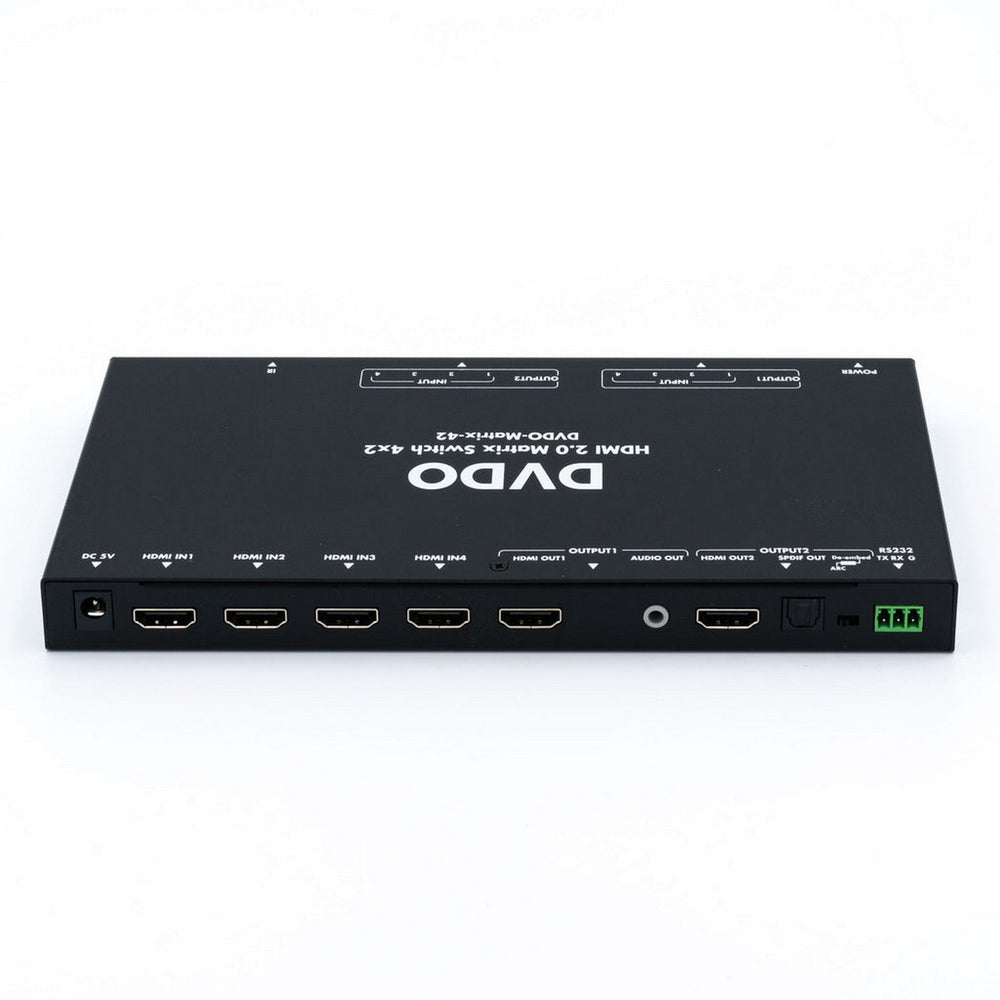

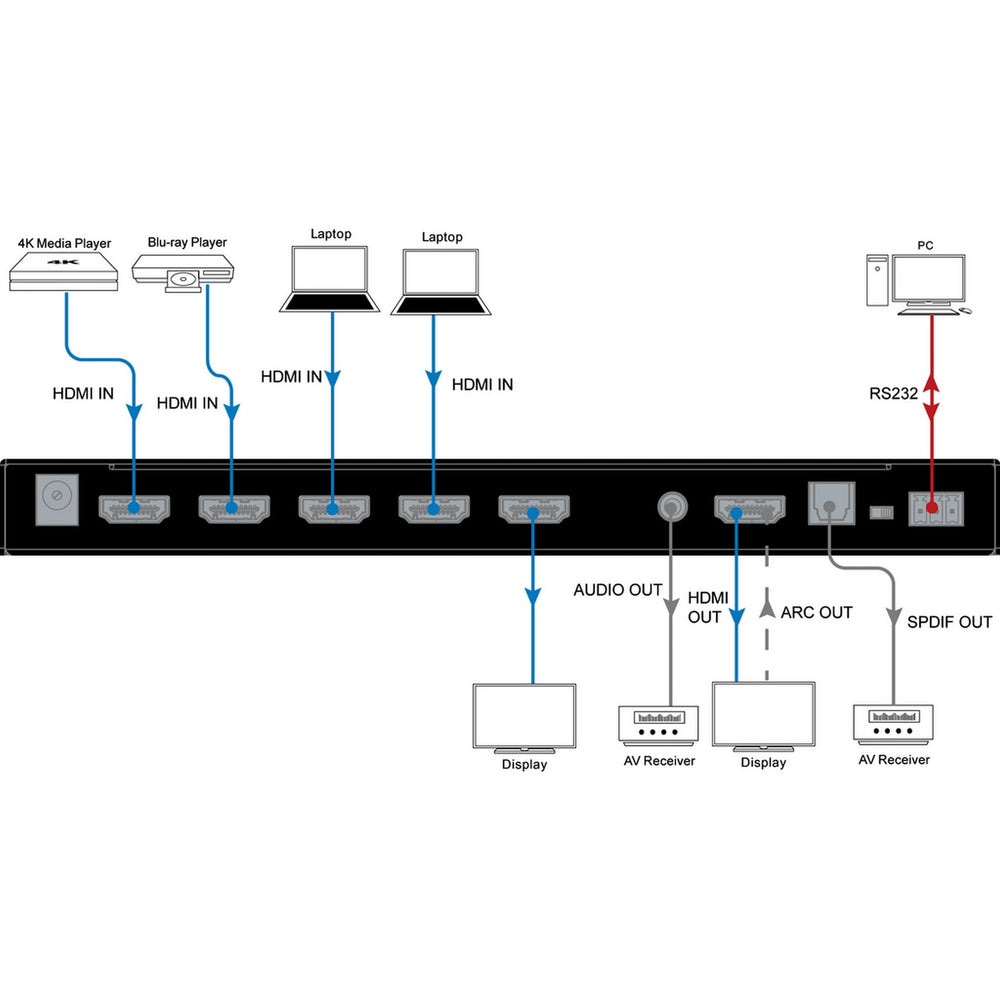

Input
4 x HDMI IN (Type-A female connector)
Output
2 x HDMI OUT (Type-A female connector)

Video Signal Type
HDMI with 4K@60 4:4:4, HDR 10, HLG & Dolby Vision, HDCP 2.2

Input/Output Resolution Supported
VESA: 800x6008, 1024x7688, 1280x7688, 1280x8008, 1280x9608, 1280x10248, 1360x7688, 1366x7688, 1440x9008, 1600x9008, 1600x12008, 1680x10508, 1920x12008
SMPTE: 720x576P6, 1280x720P6,7,8, 1920x1080P2,5,6,7,8, 3840x21602,3,5,6,8, 4096x21602,3,5,6,8
2 = at 24 Hz, 3 = at 25 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = 60 Hz

Audio Format Supported
HDMI IN/OUT: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTSHD Master Audio and DTS:X
AUDIO OUT: Only support PCM 2.0;
S/PDIF OUT: Support PCM 2.0/5.1, Dolby digital and DTS up to 5.1 Channel.

Maximum Data Rate
18 Gbps

Control Method
IR, RS232, Front Panel Button

Operating Temperature
32°F to 113°F (0°C to 45°C)
Storage Temperature
-4°F to 158°F (-20°C to 70°C)
Humidity
10% to 90%, non-condensing

ESD Protection
Human-body Model: ±8kV (Air-gap discharge) / ±4kV (Contact discharge)

Power Supply
DC 5V 1A
Power Consumption (Maximum)
3.3W

Transmission Distance
Cable Type Range Supported Video
HDMI
Input: 15m/50ft
Output: 10m/33ft
1080P@60Hz
Input/Output: 10m/33ft 4K@30Hz
Input/Output: 5m/16ft 4K@60Hz 4:4:4 8bit
