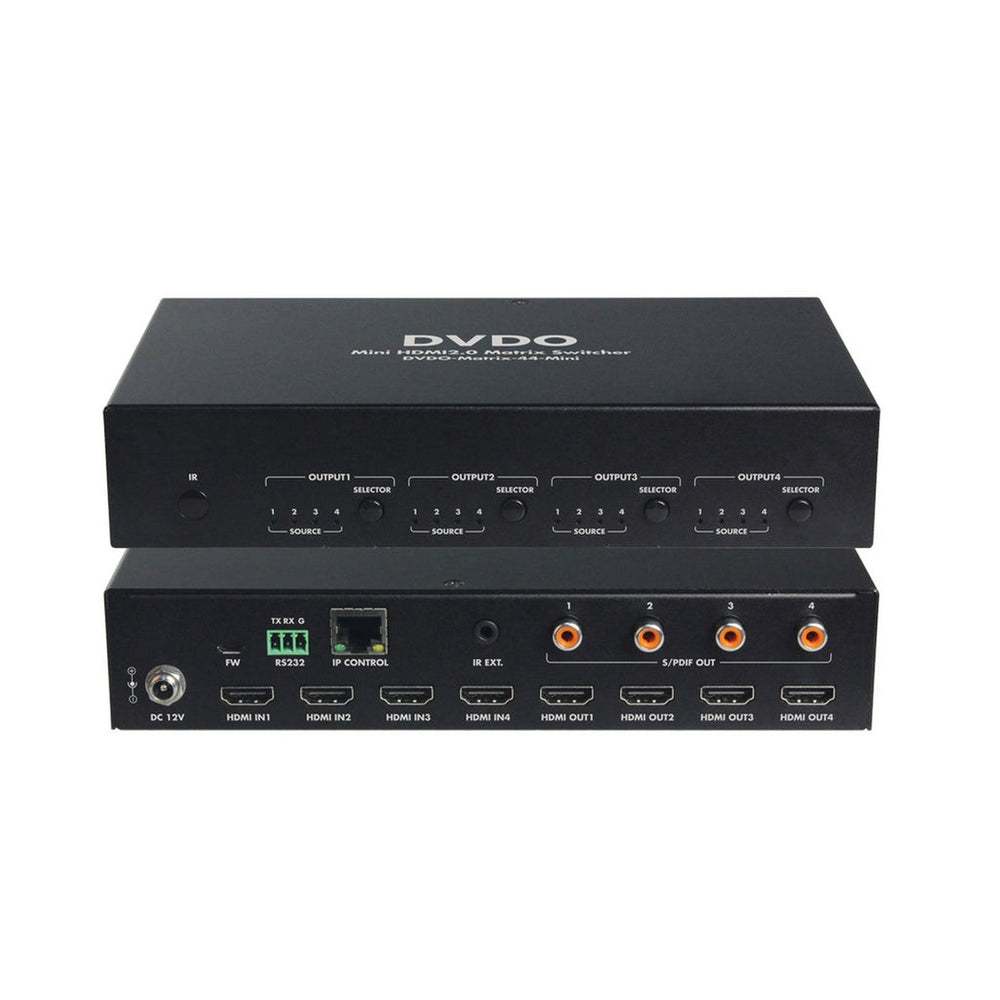

DVDO Matrix 44 Mini - 4x4 HDMI Matrix Switcher
The DVDO Matrix 44 Mini is an advanced 4x4 HDMI matrix switcher engineered to deliver exceptional performance in signal routing and distribution. Designed for professional and home entertainment setups, this compact yet powerful matrix switcher allows users to route any of four HDMI sources to any of four HDMI displays with ease. Whether for a high-end home theater system or a commercial AV installation, the Matrix 44 Mini ensures seamless switching between multiple HDMI sources, enhancing your viewing experience with its robust features and reliability.
With its intuitive interface and advanced technology, the DVDO Matrix 44 Mini supports full HD resolutions and provides high-quality video and audio performance. The device is perfect for scenarios where multiple HDMI devices need to be connected to multiple displays, allowing you to effortlessly switch between sources and displays. The Matrix 44 Mini's compact design ensures it fits seamlessly into any AV setup, making it an ideal choice for those looking to optimize their HDMI signal distribution without compromising on quality or functionality.
The DVDO Matrix 44 Mini boasts a range of features tailored to meet the demands of modern AV systems. It supports the latest HDMI standards, including 4K resolution, and ensures compatibility with a wide range of devices. Its easy-to-use control options, including front panel buttons and remote control, provide flexibility and convenience in managing your HDMI signals. With its reliable performance and user-friendly design, the Matrix 44 Mini is a versatile solution for all your HDMI switching needs.
Key Features
- 4x4 HDMI matrix switcher with support for full HD and 4K resolutions
- Seamless switching between four HDMI sources and four HDMI displays
- Compact design suitable for both home and professional AV setups

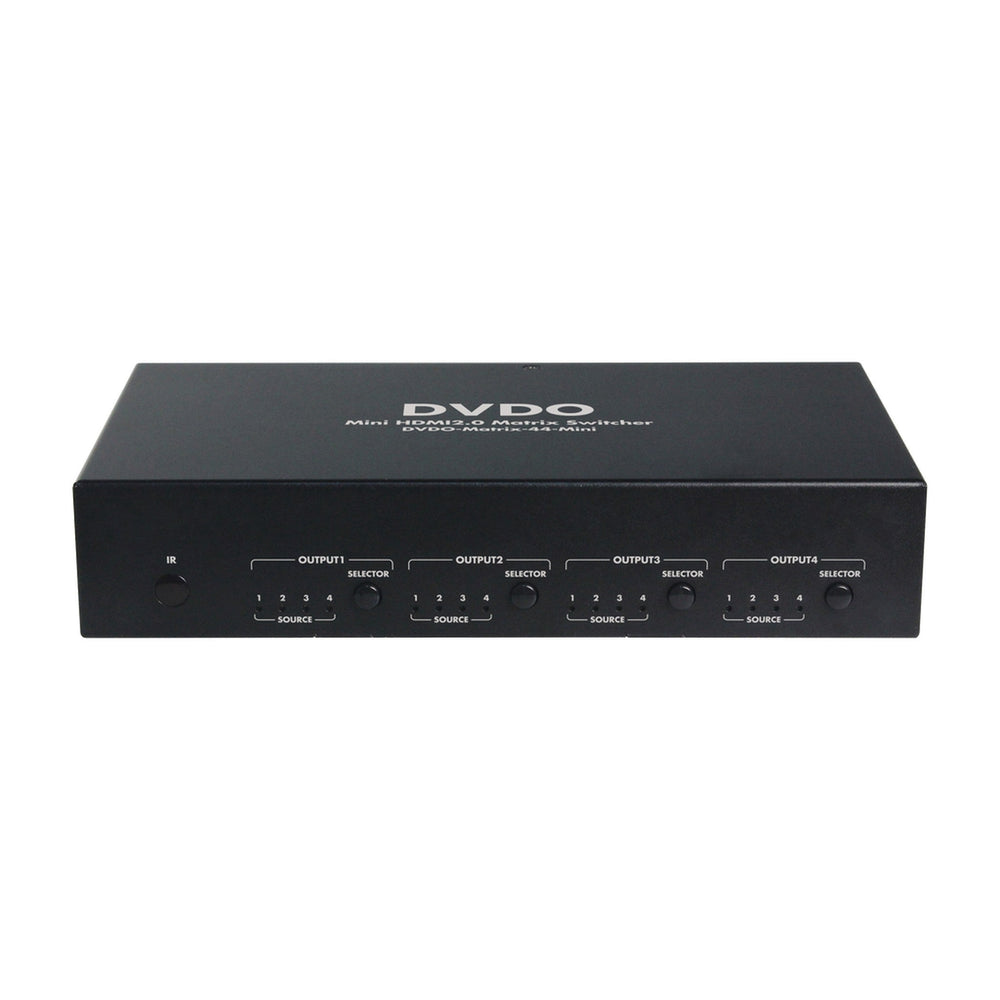

- Intuitive front panel controls and remote control for easy operation
- High-quality video and audio performance with support for the latest HDMI standards
Technical Specifications (Specs)
Dimensions
8.46" x 1.65" x 4.73" (Without mounting brackets)
Weight
1.19 lbs
Input/Output Ports

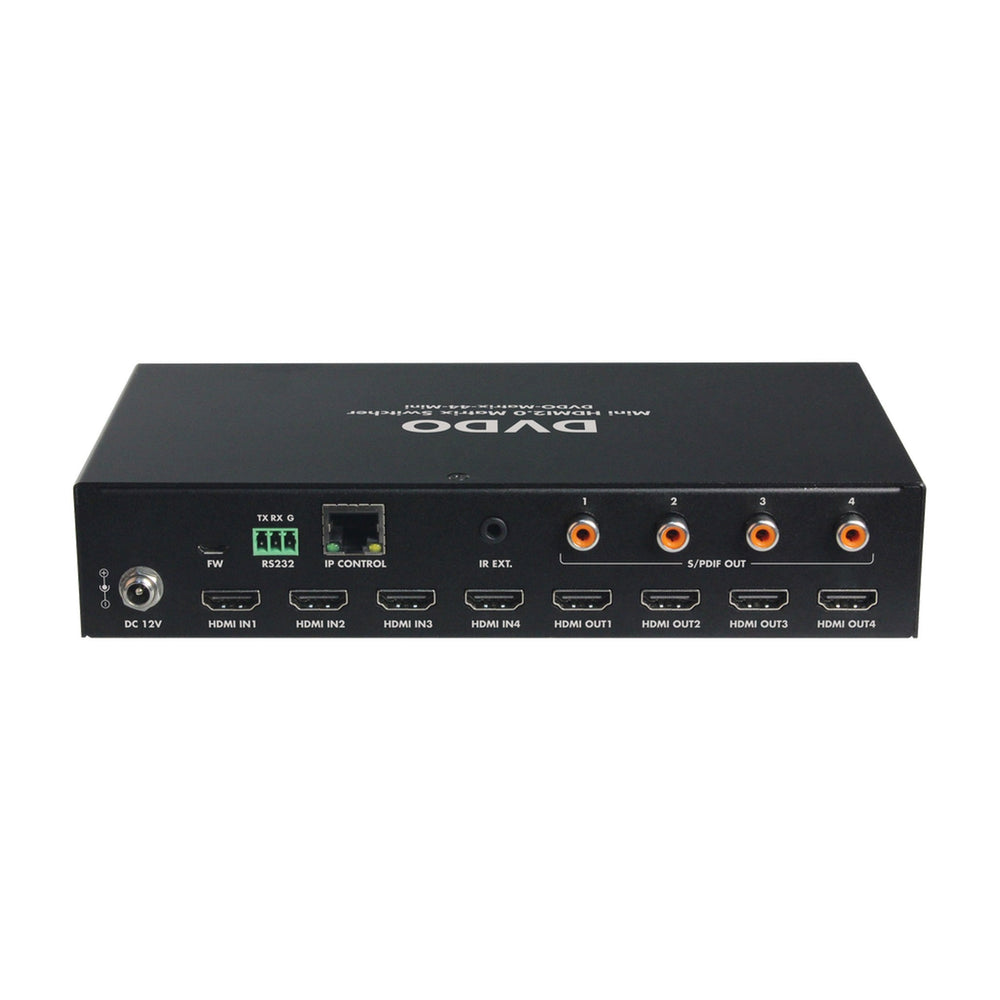

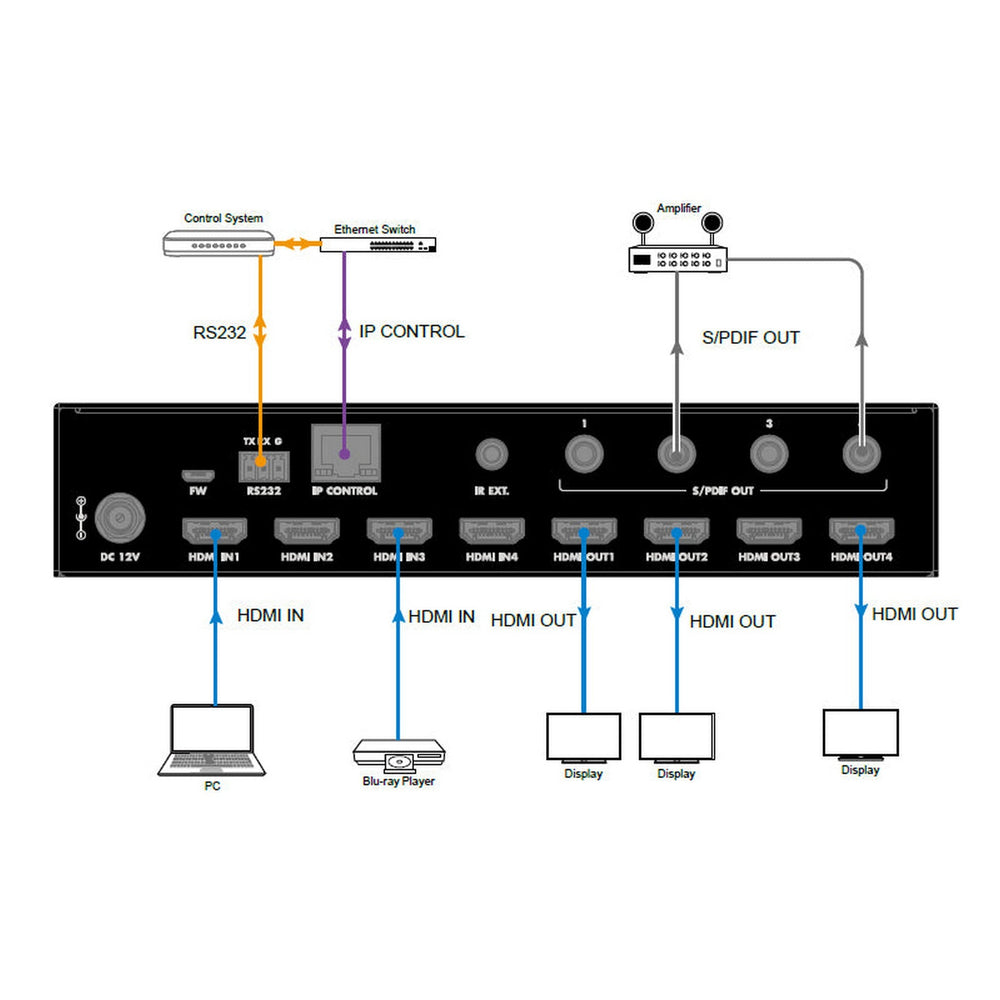

4 x HDMI IN, 4 x HDMI OUT, 1 x RS-232, 1 x IP Control (RJ45), 4 x SPDIF OUT (Digital), 1 x FW (Micro USB), 1 x DC 12V IN
Input/Output Signal Type
HDMI with 4K@60Hz 4:4:4, HDR 10, HLG & Dolby Vision, HDCP 2.2 (Note: Dolby Vision is not supported in downscaler mode)
Input/Output Resolution Supported
VESA: 800x600, 1024x768, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1366x768, 1440x900, 1600x900, 1600x1200, 1680x1050, 1920x1200
SMPTE: 720x576P, 1280x720P, 1920x1080P, 3840x2160, 4096x2160
(Note: 2 = at 24 Hz, 3 = at 25 Hz, 5 = at 30 Hz, 6 = at 50 Hz, 7 = at 59.94 Hz, 8 = at 60 Hz)
Audio Format
HDMI IN/OUT: Fully supports audio formats in HDMI 2.0 specification, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTSHD Master Audio, and DTS:X
S/PDIF OUT: Supports PCM 2.0/5.1, Dolby Digital, and DTS up to 5.1 Channel
Maximum Data Rate
18Gbps
Control Method
Front Panel Buttons, RS232, IR, LAN (Telnet & Web UI)
Operating Temperature
32Ā°F to 113Ā°F (0Ā°C to 45Ā°C)
Storage Temperature
-4Ā°F to 158Ā°F (-20Ā°C to 70Ā°C)
Humidity
10% to 90%, non-condensing
ESD Protection
Human-body Model: Ā±8kV (Air-gap discharge) / Ā±4kV (Contact discharge)
Power Supply
DC 12V
Power Consumption (Max)
10.8W
Transmission Distance
HDMI Cable Type Range Supported Video
Input: 15m/50ft
Output: 10m/33ft 1080P@60Hz 24bpp
Input/Output: 10m/33ft 4K@30Hz 4:4:4 24bpp
4K@60Hz 4:2:0 24bpp
Input/Output: 3m/10ft 4K@60Hz 4:4:4 24bpp
