DVDO 4x2 Presentation Switcher with USB-C and HDMI Inputs
DVDO 4x2 Presentation Switcher with USB-C and HDMI Inputs
Free Shipping

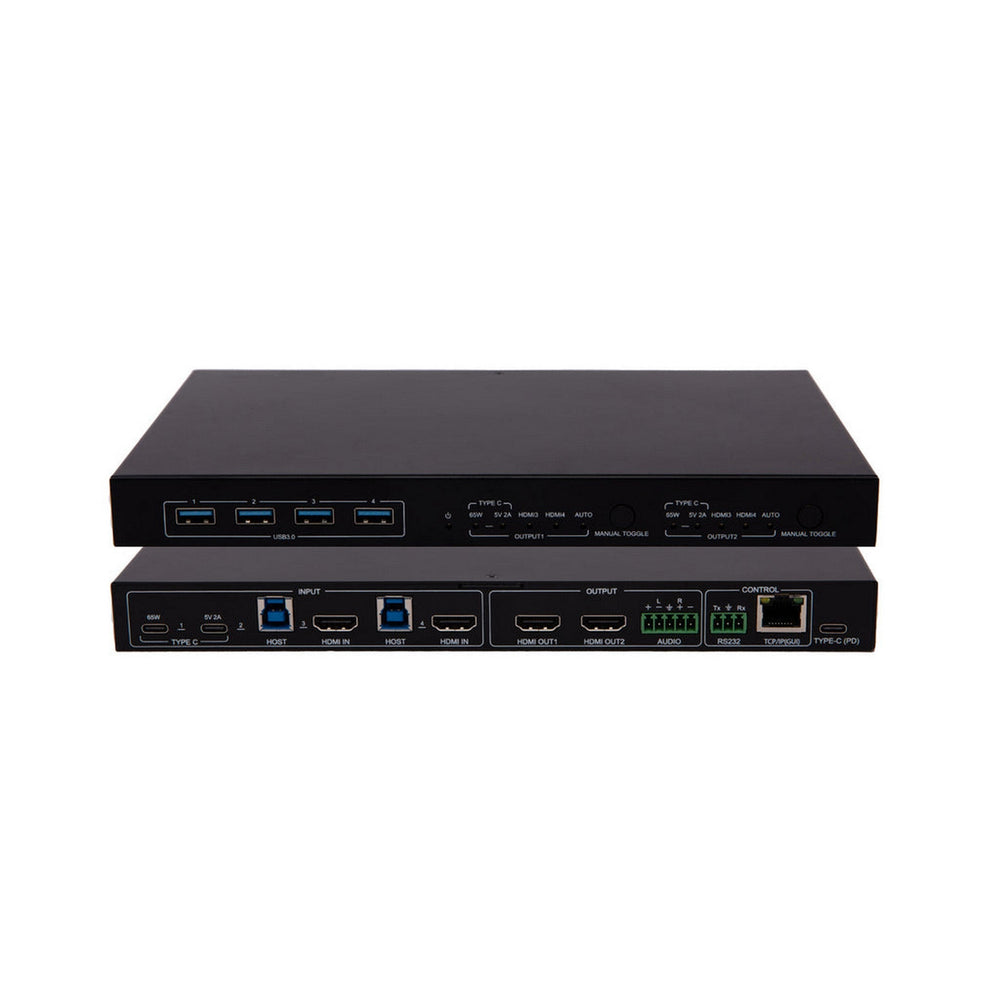

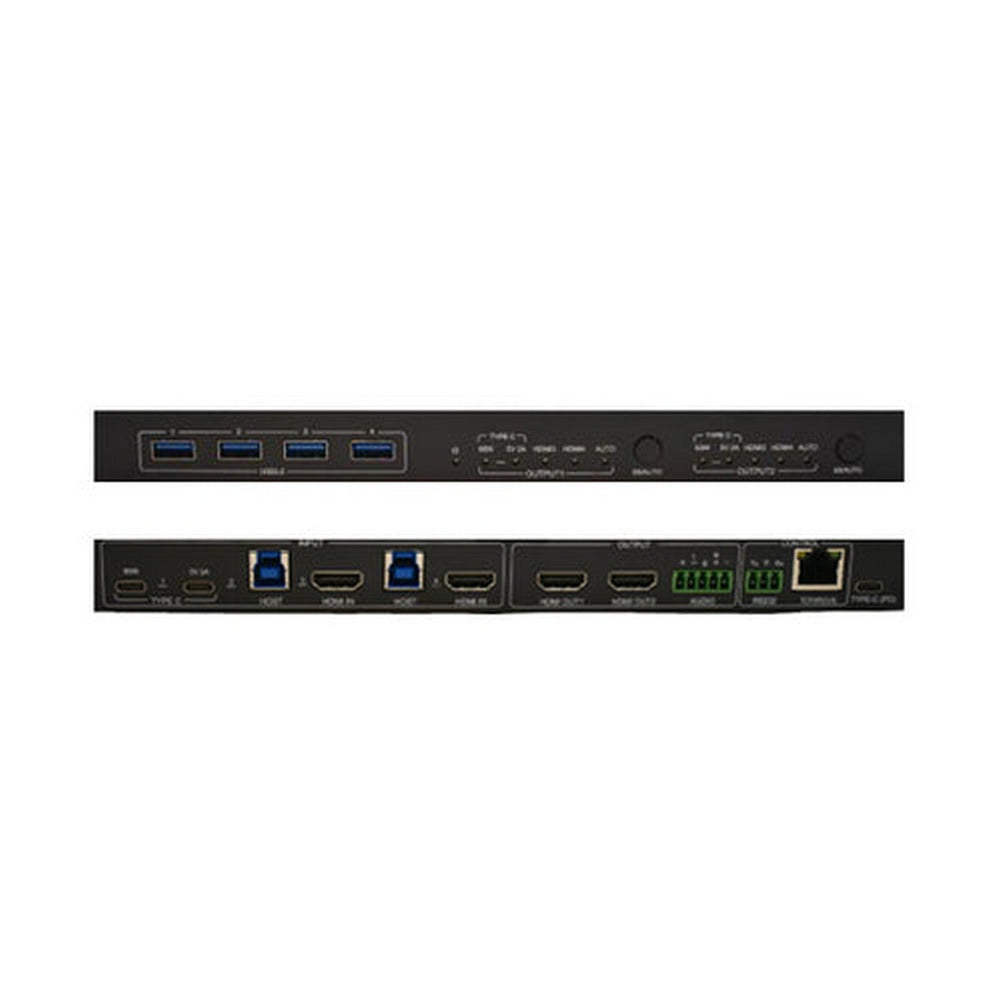

DVDO USB-C HDMI 4x2 Presentation Switcher

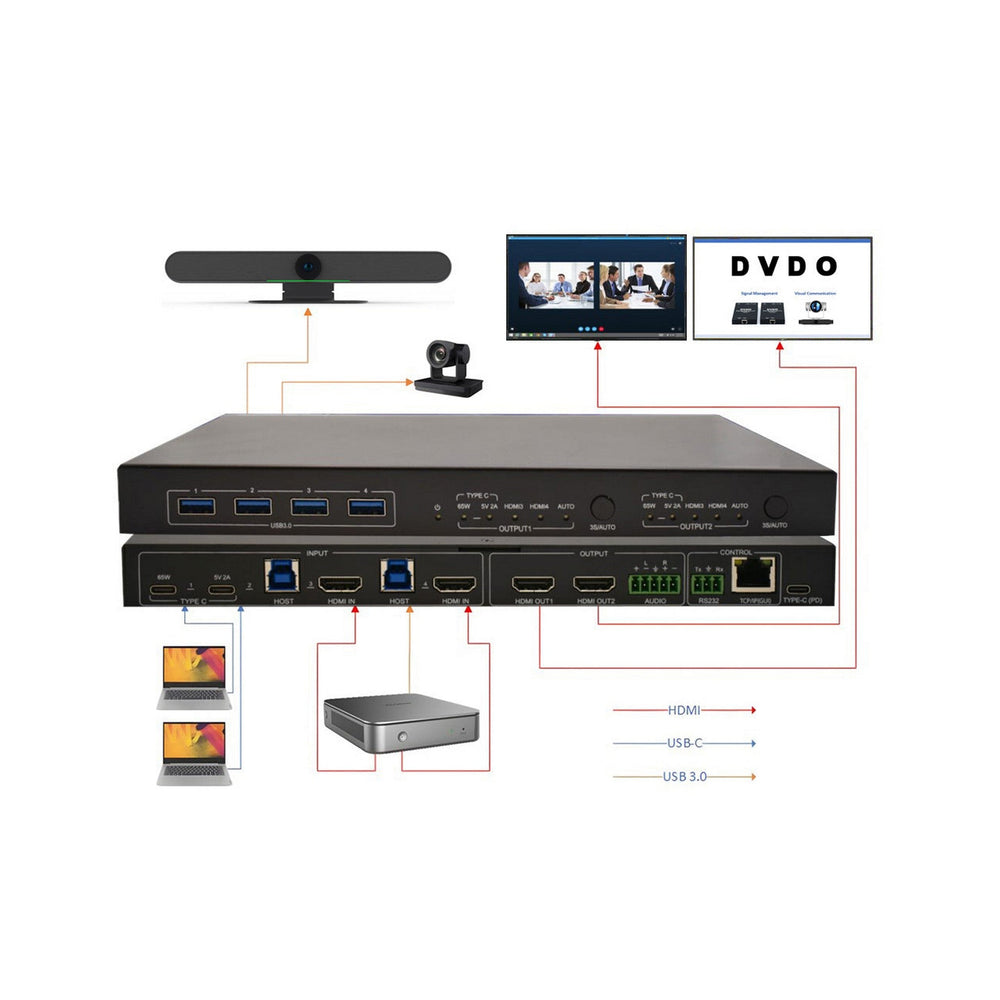

The DVDO USB-C HDMI 4x2 Presentation Switcher is the ultimate solution for high-performance video and audio management. With two HDMI inputs and two USB-C inputs, it supports seamless 4K resolution for professional-grade presentations, ensuring crystal-clear video quality. This device features a built-in Multi-Stream Transport (MST) function and a downscaling option for flexible video output, supporting a wide range of display setups. Perfect for conference rooms, classrooms, and other AV-centric environments, this switcher provides robust connectivity options and unparalleled video quality.
Beyond its impressive video capabilities, the DVDO switcher also supports advanced audio formats like LPCM 7.1 and DolbyĀ® TrueHD, ensuring your presentations sound as great as they look. With built-in USB ports, including Type-C and Type-A, for peripheral connections, this device offers a complete solution for both video and device management. The versatile control options allow for easy operation, whether through RS-232, Ethernet, or front panel controls, offering flexibility to suit various environments and needs.
Designed for a variety of settings, from small businesses to large-scale presentations, the DVDO USB-C HDMI 4x2 Presentation Switcher guarantees reliability and high-quality performance. Its powerful audio capabilities and easy-to-use design make it the go-to choice for anyone looking to streamline their AV setup while maintaining top-notch visual and audio fidelity.
Key Features:
- Two HDMI inputs and two USB-C inputs supporting up to 4K resolution
- DP 1.2 Multi-Stream Transport (MST) function for smooth video switching
- Dual HDMI output supporting 4K downscaling to 1080p
- Pass-through support for LPCM 7.1, DolbyĀ® TrueHD, Dolby DigitalĀ® Plus, and DTS-HDĀ® Master Audioā¢
- Supports various control methods: IP, RS-232, and front panel controls
- Four USB 3.2 Type-A ports for peripherals and two USB Type-B ports for host devices
- Supports firmware upgrades via TCP/IP (GUI)
Technical Specifications:
Video Input:
Input 1: HDMI, Type-A female connector
Input 2: USB-C, Type-C USB 3.2
Resolution (HDMI): Up to 4K@60Hz 4:4:4 8-bit
Resolution (USB-C): Up to 4K@30Hz, DP1.2 MST function
Video Output:
Output 1 & 2: HDMI, Type-A female connector
Resolution (HDMI): Up to 4K@60Hz 4:4:4, supports 4K to 1080p down-scaling
Audio:
Pass-through formats: LPCM 7.1, DolbyĀ® TrueHD, Dolby DigitalĀ® Plus, DTS-HDĀ® Master Audioā¢
De-embedding: PCM 2.0 on 5-pin terminal block
Control:
USB: 2x USB Type-C (65W, 10W), 4x USB Type-A (5Gbps), 2x USB Type-B for host switching
RS-232: 1 x 3-pin terminal block
Ethernet: 1x 100Base-T on RJ45 port
General:
Operating Temperature: -5Ā°C ~ +55Ā°C
Storage Temperature: -25Ā°C ~ +70Ā°C
Relative Humidity: 10%-90%
External Power Supply: Input: AC 100~240V, 50/60Hz; Output: 20V DC 5.0A, 100W
Power Consumption: 85W (Max)
Dimensions: 10.24" x 0.98" x 6.10"
Net Weight: 2.09 lbs
Gross Weight: 3.86 lbs
What's Included:
- 1 x DVDO-USBC-HDMI-PS-42 Presentation Switcher
- 2 x Mounting Ears with 4 Screws
- 4 x Rubber Feet
- 1 x RS232 Cable (3-pin to DB9)
- 1 x 5-pin Phoenix Connector
- 1 x 100W USB-C Power Supply (20V 5A)
- 1 x User Manual
