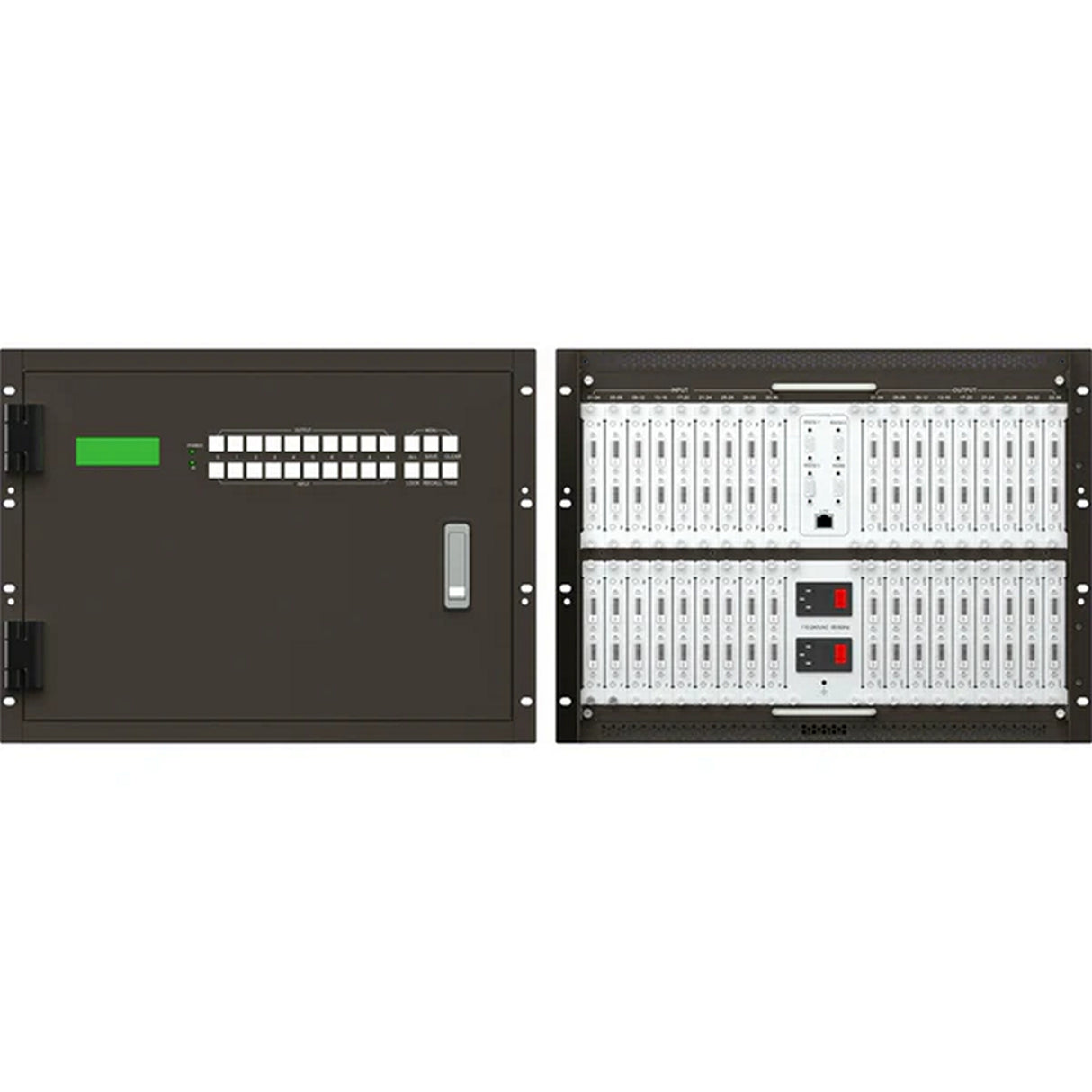

DVDO DVDO-Matrix-3636-C 36 x 36 Modular Matrix Switcher
DVDO | SKU: DVDO-DVDOMATRIX3636C
DVDO DVDO-Matrix-3636-C 36 x 36 Modular Matrix Switcher
$12,49900
Unit price
/
Unavailable
DVDO DVDO-Matrix-3636-C 36 x 36 Modular Matrix Switcher
Our Modular Matrix is a high-performance video signal switcher and supports mixed multi-format seamless switching. It'supports up to 36 inputs, 36 outputs with multiple types of daughter cards including Fiber, HDBaseT, SDI, HDMI, VGA, DVI-U.
Communication control is available through Ethernet/LAN and RS232 and downloadable PC software to control matrix signal switching, monitoring and signal resolutions.
Key Features
- Redundant power supply
- Support Seamless switching
- Support up to 36 inputs and 36 outputs
- Input/Output port: Fiber, HDBaseT, 3G-SDI, HDMI, DVI-U(HDMI/DVI/VGA/YPbPr/CVBS)
- Maximum resolution of 1920 x 1080@60Hz (2K cards); 3840x2160@60Hz (4K cards)
- Control interface: RS232, Web-based Ethernet/LAN
- PC software to facilitate remote control, real-time display the input and output status
- Scalar inside, output resolution control available
- Video wall function
- Character overlay function: Font / color / size control available
