DVDO DVDO-Xtend-Pair3.0E HDMI at 4K60 Over Ethernet with HDBaseT 3.0

DVDO DVDO-Xtend-Pair3.0E HDMI at 4K60 Over Ethernet with HDBaseT 3.0

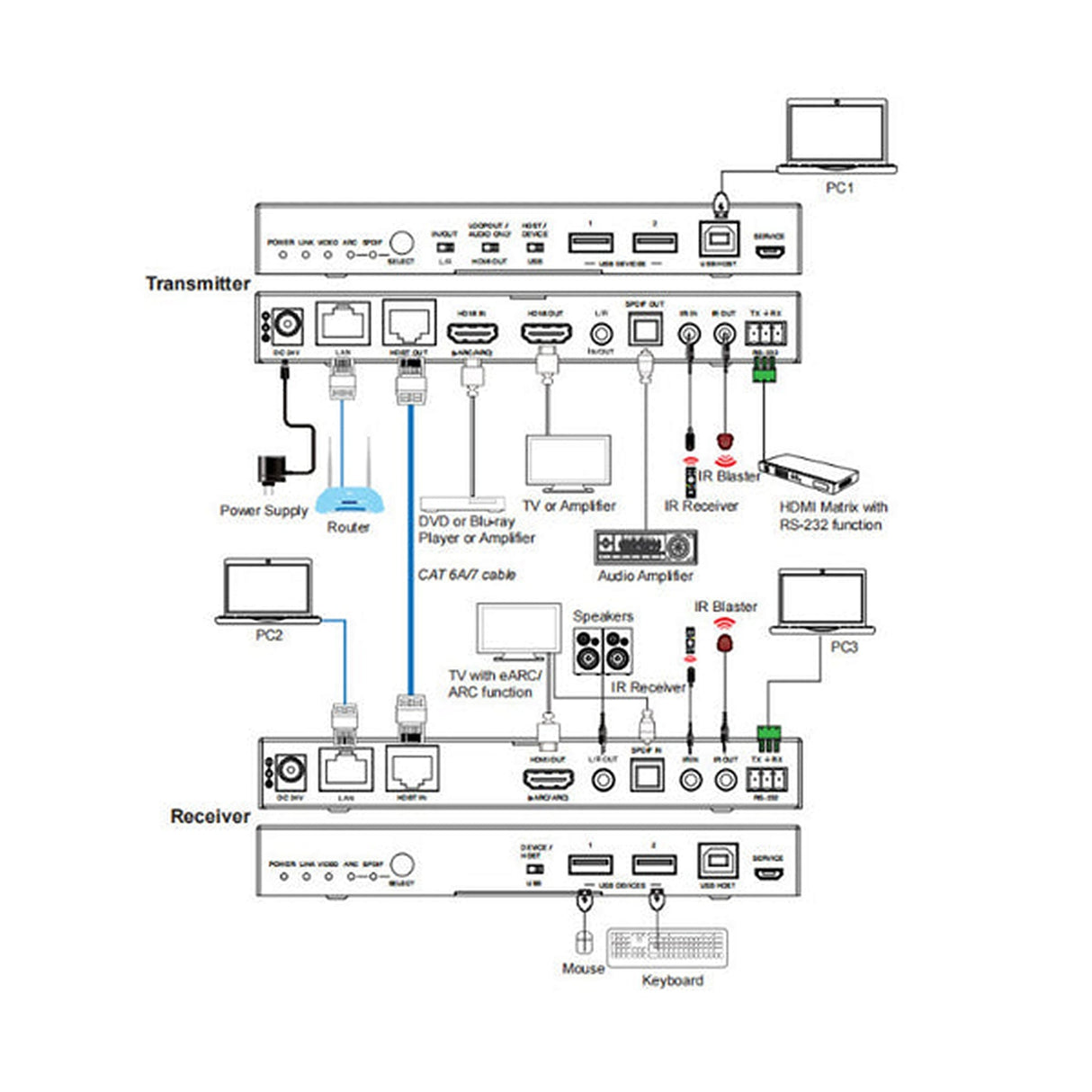

This HDBaseT 3.0 Extender can extend uncompressed HD/UHD video and audio signals, eARC/ARC, RS-232, bi-directional IR, 1GbE Ethernet and USB2.0 signals up to 100m/328ft via a single CAT6A/7 cable. The Transmitter supports audio embedding or de-embedding. The Receiver supports audio de-embedding. It also supports eARC/ARC from RX's HDMI output pass through to TX's HDMI input or de-embedding to TX's HDMI audio only and SPDIF output ports, USB 2.0 (Host/Device is configurable) and bi-directional POC.

The Extender offers the most convenient solution for HDMI extension via a single CAT cable with long distance capability, and is the perfect solution for home/commercial application.

Key Features

• HDMI 2.0b, HDCP 2.2 and HDBaseT 3.0 compliant
• Uncompressed 4K@60Hz 4:4:4 up to 18Gbps video bandwidth
• HDR, HDR10, HDR10+, Dolby Vision and HLG pass through
• LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24,
• DTS High Res, DTS-HD Master Audio, DSD pass through
• Transmission distance up to 328 ft / 100 meters via a single CAT 6A/7 cable
• Supports eARC/ARC function (the audio is returned to the HDMI IN port,
• HDMI OUT (AUDIO ONLY) port and SPDIF OUT port of the transmitter.)
• Supports SPDIF audio reverse transmission
• Bi-directional IR, RS-232 and 1G Ethernet signal pass through
• Supports USB2.0 transmission, Host/Device is configurable
• Bi-directional 24V POC function
