Dynacord V600:4 600W Multichannel Power Amplifier

Dynacord V600:4 600W Multichannel Power Amplifier

The Dynacord V600:4 is a versatile, lightweight four-channel power amplifier designed for small to mid-sized commercial installations such as educational facilities, hospitality venues, retail spaces, and houses of worship. Delivering a total power output of 600 watts, this amplifier is engineered for consultants, installers, and specifiers seeking a robust and adaptable solution that ensures quick installation and reliable performance, even under demanding power conditions.

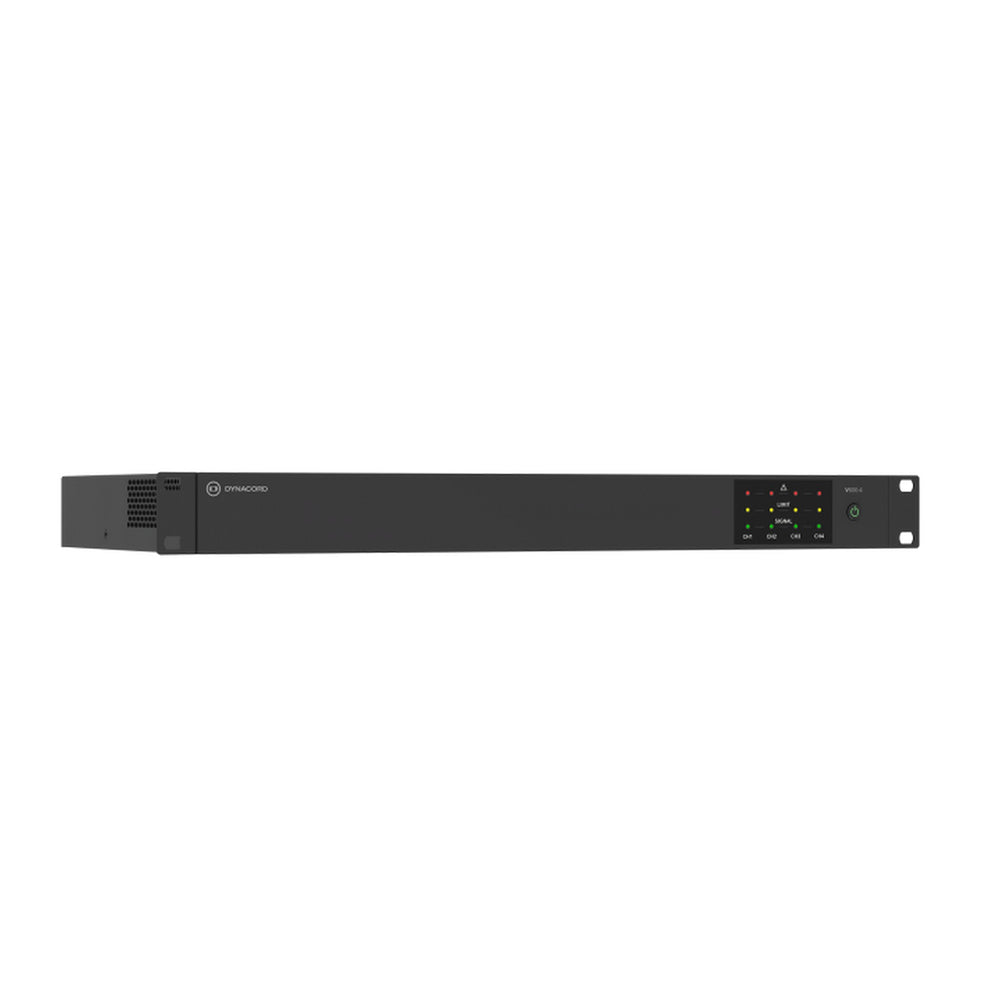

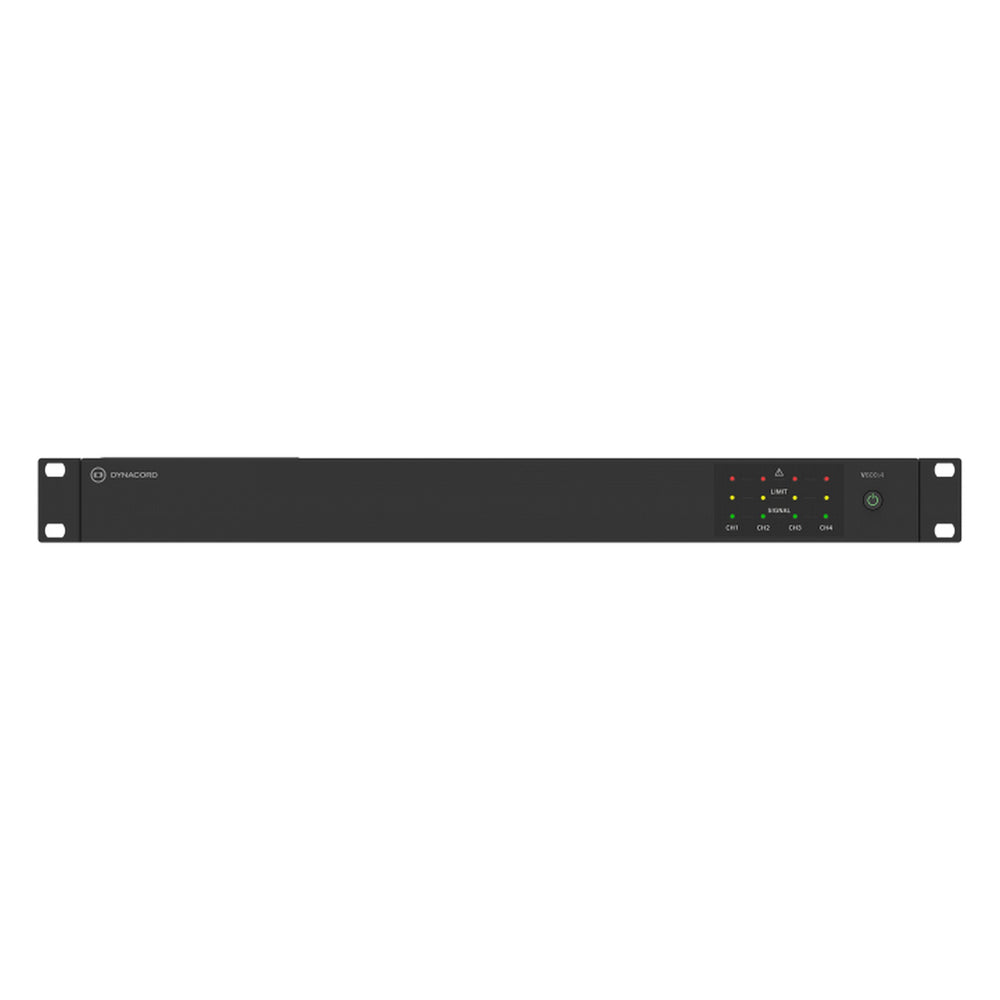

Featuring a compact 1RU form factor, the V600:4 integrates innovative Dynacord technologies to provide professional-grade performance with efficient power consumption. The proprietary powerTANK technology functions as a dynamic power reservoir, allowing the amplifier to flexibly allocate its total 600-watt capacity across all four channels as needed. This eliminates energy waste and offers exceptional flexibility, particularly when driving multiple audio zones with varying load requirements. For instance, the V600:4 can simultaneously power compact loudspeakers in a small area, such as a kitchen, while also driving larger speakers in an auditorium. This adaptive feature engages automatically, simplifying installation without requiring specialized configuration.

The V600:4 also incorporates Variable Load Drive (VLD), ensuring consistent power delivery to any channel regardless of impedance, thereby maximizing the efficiency of the powerTANK capacity. Its dualCOOL thermal design primarily utilizes convection cooling but includes an intelligent multi-speed fan that activates under extreme thermal conditions to maintain optimal performance and reliability. Additionally, ecoRAIL technology reduces power consumption to levels comparable to standard standby modes while still providing audio output suitable for background music. For further energy savings, the Auto Power Down (APD) mode decreases power consumption to less than a watt during extended periods of inactivity.

Key Features

• powerTANK Technology: Dynamic power allocation across all channels, providing up to 600 W total output without manual configuration.
• Variable Load Drive (VLD): Delivers consistent power to any channel with any impedance, enhancing flexibility and efficiency.

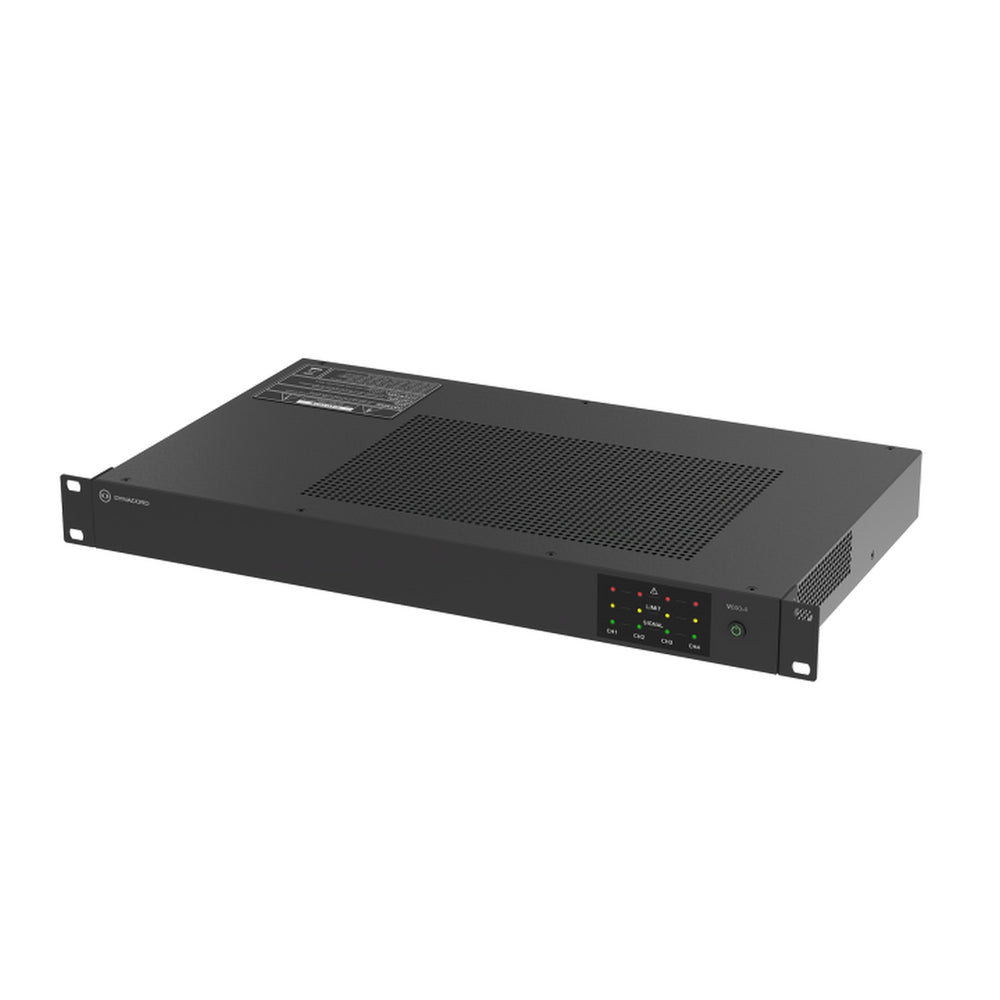

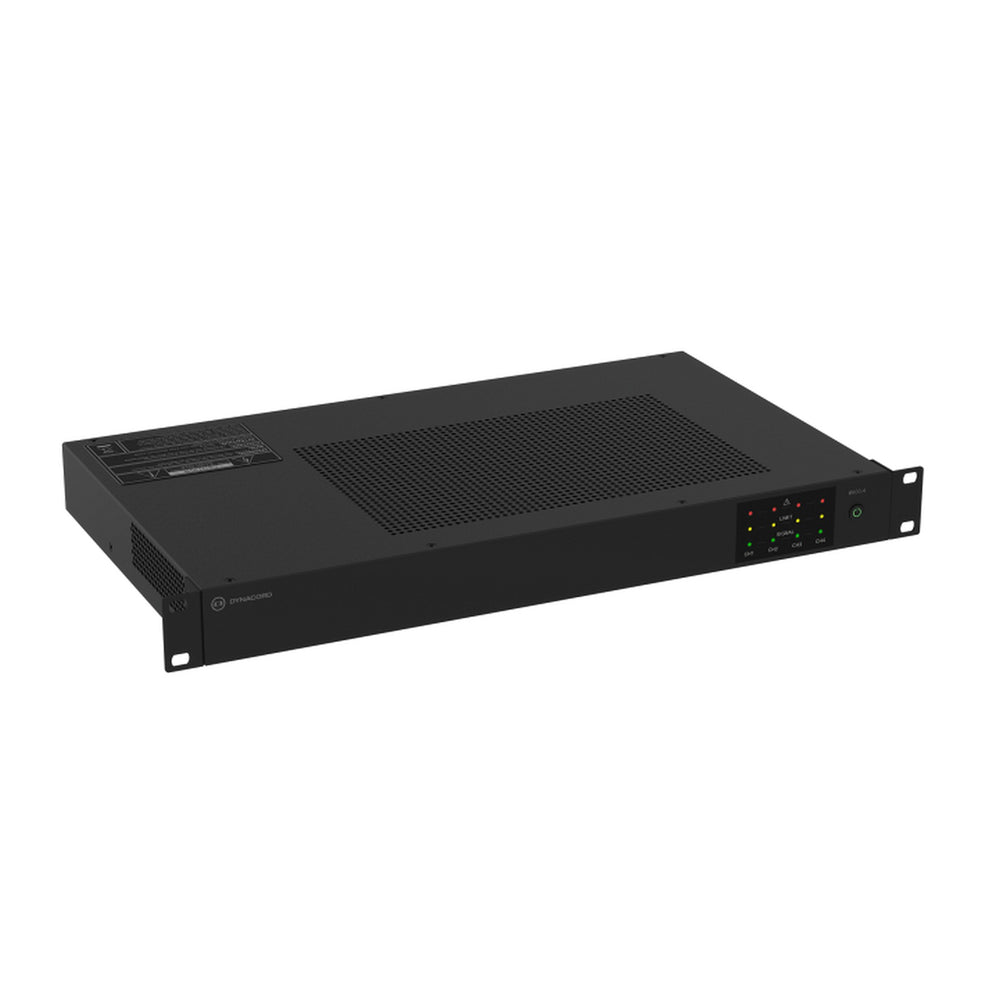

• dualCOOL Thermal Design: Combines convection cooling with an intelligent multi-speed fan for reliable operation under varying thermal conditions.
• ecoRAIL and Auto Power Down (APD): Significantly reduce power consumption during low-demand periods, promoting energy efficiency.
• Compact 1RU Form Factor: Space-saving design ideal for installations with limited rack space.
• Comprehensive Protection Package: Includes audio limiters, high temperature, DC, HF, short circuit, back-EMF, peak current limiters, inrush current limiters, and mains over/under voltage protection for dependable performance.

Technical Specifications

Total Rated Output Power: 600 W
Number of Channels: 4
Rated Output Power per Channel: 4 x 150 W
Output Power per Channel: 4 Ω / 8 Ω / 70 V / 100 V
Maximum Output Power per Channel (Power Sharing): 500 W / 600 W / 500 W / 600 W

Nominal Gain (+6 dBu Input Sensitivity, LEVEL 0 dB): 24.0 dB / 27.0 dB / 33.2 dB / 36.2 dB
Signal to Noise Ratio (A‑weighted, ref. to Rated Output Power, LEVEL 0 dB): > -98 dB / > 100 dB / > 101 dB / > 103 dB
THD+N (1/8 Rated Output Power, 1 kHz): < 0.1%

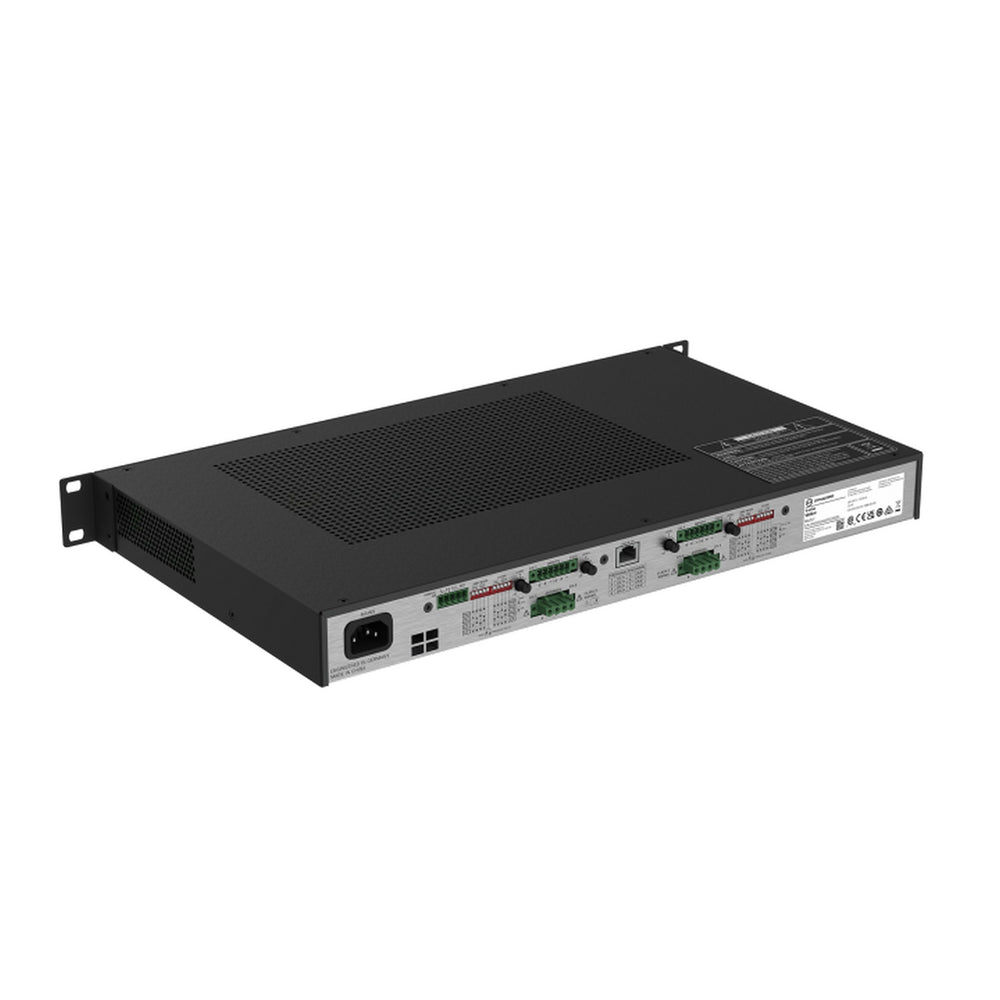

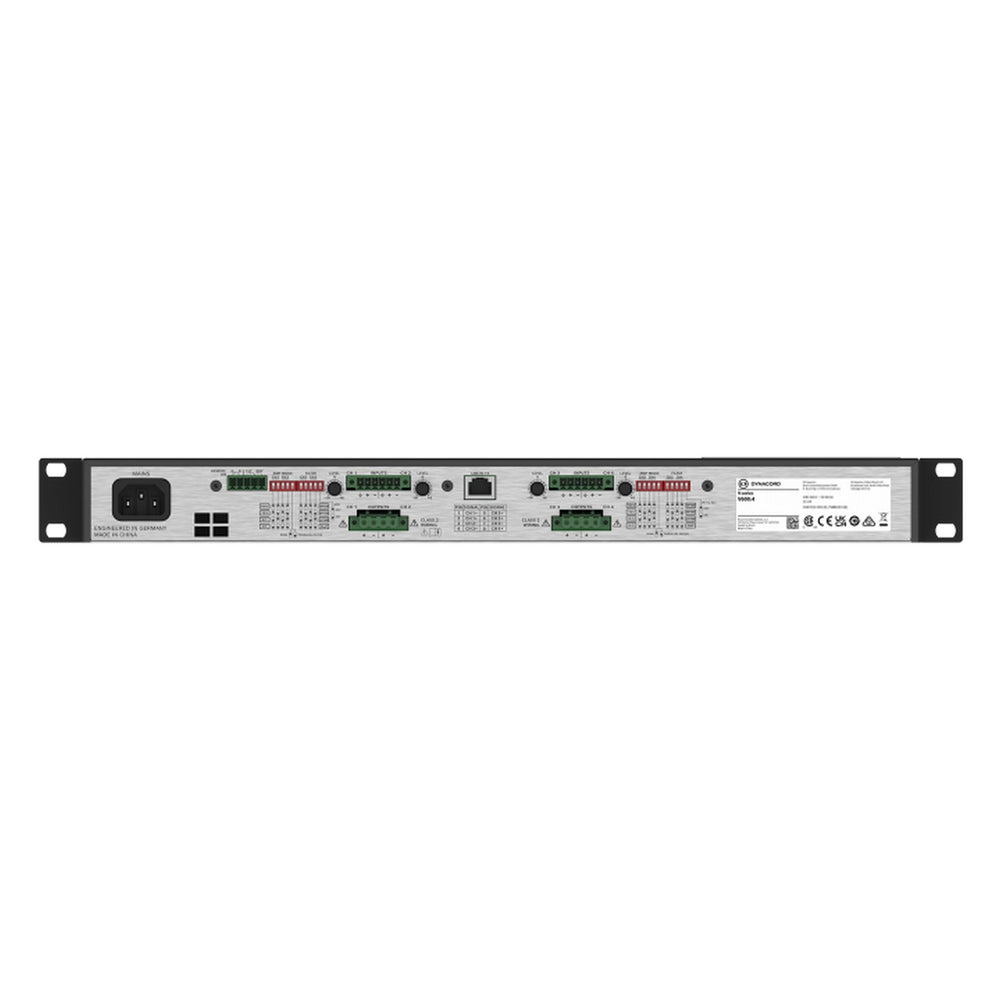

Input Type: 2 x 6-pin Euroblock, 0.15" (3.81 mm) pitch, male, parallel 1x RJ45 (AES72-1E)
Loudspeaker Output: 2 x 4-pin Euroblock, 0.2" (5.08 mm) pitch, female
Control Port Type: 1 x 5-pin Euroblock, 0.15" (3.81 mm) pitch, male

Signal Processing: Input Routing, Filter (24 dB/Oct.), Hi-pass 30/50/100/150 Hz, Lo-pass 150 Hz, Peak Limiter
Power Requirements: 100 V to 240 V, 50 Hz to 60 Hz AC
Power Consumption:
    Idle Mode (ecoRAIL with No Input Signal): < 20 W
    Consumption at 1/8 Rated Output Power: 115 W
    Standby Mode (APD Active): < 1 W
Protections: Audio limiters, high temperature, DC, HF, short circuit, back-EMF, peak current limiters, inrush current limiters, mains over/under voltage protection

What's Included

• Dynacord V600:4 Power Amplifier
• Mains Cord
• Euroblock Remote Connector, 5‑pole
• 2 Euroblock Input Connectors, 6‑pole
• 2 Euroblock Output Connectors, 4‑pole
• 4 Rubber Feet
• 2 19"‑Rack Mounting Brackets (pre‑mounted)
• Quick Installation Guide
