E-Image EG04AS Lightweight Tripod Kit with Ball/Flat GH04 Head
E-Image EG04AS Lightweight Tripod Kit with Ball/Flat GH04 Head
Free Shipping

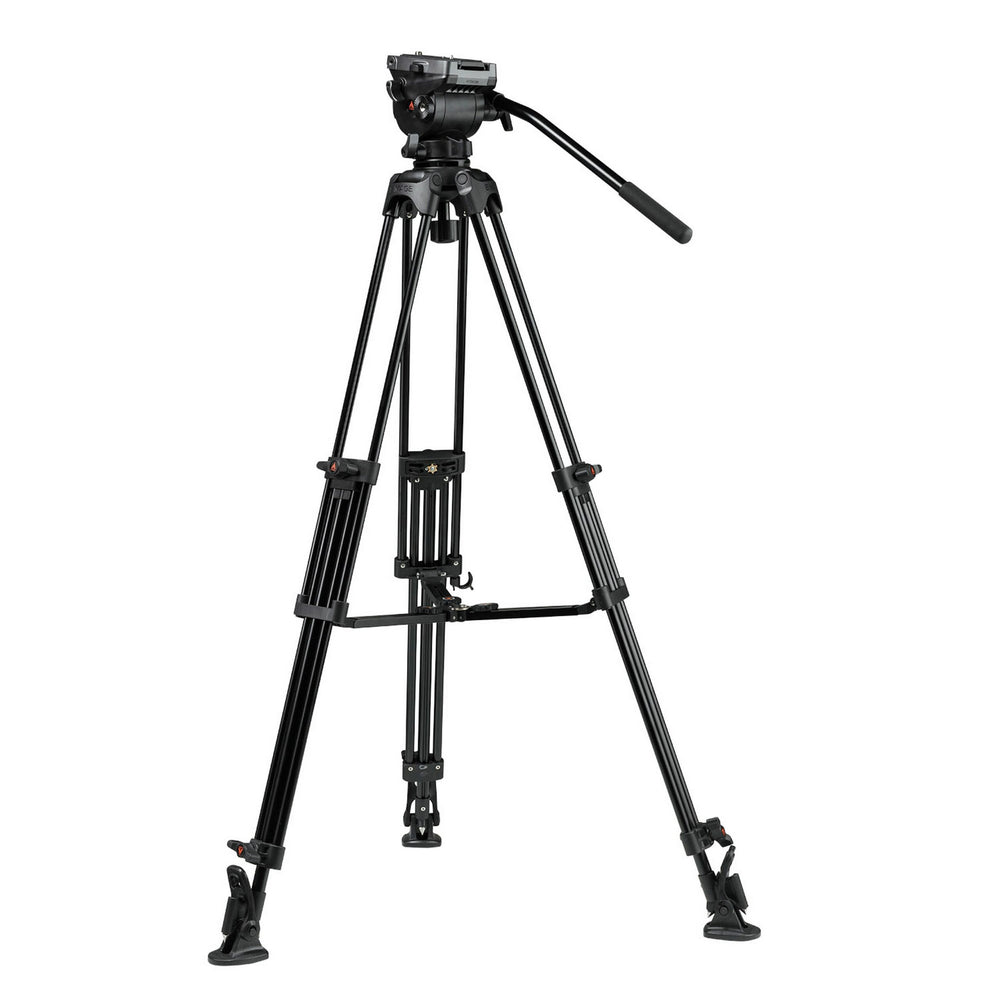

E-Image EG04AS Lightweight Tripod Kit with Ball/Flat GH04 Head
The EG04AS is the lightest and most versatile tripod kit in the E-Image lineup. With a net weight of 9 lbs. and a height range of 65.25-30.75”, there isn’t anywhere you can’t shoot with this kit. After the tripod shots are done, you can remove the GH04 head from the GA752S legs and separate the 75mm ball to reveal a flat base to mount the head on a slider or jib. The GH04 has a recommended payload of 13.2 lbs. and can switch from having a 75mm ball for tripod mounting to having a flat base with a 3/8-16 mounting point. To transition from ball to flat, simply use the included 3mm Allen wrench to loosen the three locking bolts on the underside of the 75mm ball mount and twist the ball mount counter-clockwise. Pan and tilt drag are installed and set at a fixed amount for light cameras. The same is true of the installed counterbalance.
Key Features
- Incredibly Lightweight Tripod Kit (9 lb.)
- GH04 Head Converts from 75mm Ball to Flat Head with Included 3mm Allen Wrench
- GA752S Aluminum Tripod Legs Weigh Less Than Traditional E-Image Legs
- Max Height of 65.14”, Minimum Height of 30.75”, Collapsed Length of 34.25”
- Recommended Maximum Payload of 13.2 lb.
- Includes GB1 Pan Handle, GP1 Quick Release Plate, F3 Rubber Foot Covers, and GS01 Mid-Level Spreader
- Comes in SC-1 Padded Shoulder Bag
- Installed, Fixed Pan and Tilt Drag
- Installed, Fixed Counterbalance
- 2x Rosettes for Pan Handle Mounting, Plus One 1/4-20 and One 3/8-16 Mounting Point on GH04 Head
Technical Specifications
Bowl Size
75mm
Brand
E-Image
Bubble Level
Installed on GH04 Head
Build Material
GH04 Head: Plastic/Aluminum
Legs
Aluminum
Collapsed Length
34.5 in.
Counterbalance System
Installed, Fixed
Head Payload Capacity
13.2 lb. Recommended
Leg Payload Capacity
33.1 lb.
Max. Height
65.25 in.
Pan Drag Settings
Installed, Fixed
Pan Handle Style
GB1
Tilt Drag Settings
Installed, Fixed
UPC Code
847983025022
What's Included
1x GA752S Tripod Legs
1x GH04 Fluid Head
1x GP1 Quick Release Plate
1x GB1 Pan Handle
1x GS01 Removeable Mid-Level Spreader
1x Set of F3 Rubber Feet
1x SC-1 Carrying Bag
1x 3mm Allen Wrench
