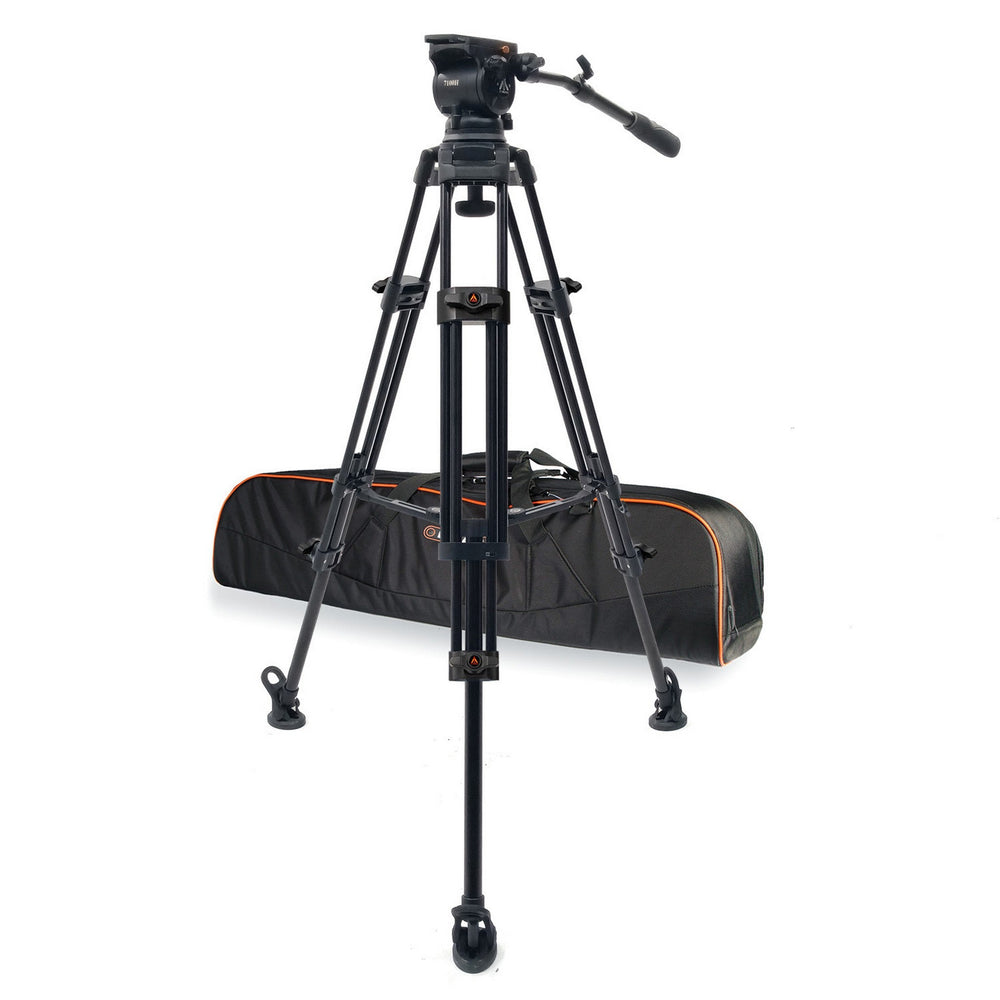

E-Image EI-7100-AA 2-Stage Aluminum 100mm Fluid Head Tripod Kit

The EI-71000-AA is an aluminum tripod kit with a 100mm 2-stage bowl that can support payloads up to 33 lbs. This field version of the tripod kit includes a fluid head, one panhandle, tripod legs, mid-level spreader, and carrying bag.

FLUID HEAD
The fluid head, designed with a 100mm bowl size, is adept at supporting equipment with a maximum payload of 33 lbs (15kg). It features a slide range of 100mm, allowing for precise positioning and balance adjustments. The counterbalance can be finely tuned within a range of 0-5, ensuring stability and smooth movement during operations. Additionally, the fluid head comes with an extendable panhandle that can be adjusted from 15.9 inches to 23.8 inches, offering users flexibility and enhanced control during filming.

HEAVY-DUTY TRIPOD
These tripod legs, constructed from durable aluminum, ensure strength while remaining lightweight with a net weight of 10.1 lbs (4.6kg). Designed with a 100mm bowl size, the tripod can comfortably support equipment with a substantial payload of up to 132.3 lbs (60kg). The legs are versatile in terms of height adjustments, ranging from 16.9 inches (43cm) to 60.8” (154.5cm). When it’s time to pack up and move, the tripod legs can be collapsed to a compact transport length of 28.1” (71.5cm). With three sections, they offer flexibility and stability, making them suitable for a variety of shooting environments.

ON-LOCATION SHOOTING
This field version of the tripod kit is equipped with three removable rubber feet, each measuring 2.4” in width and 3.1” in length. When these rubber feet are removed, they reveal spiked feet underneath, ideal for anchoring the tripod on soft ground. Additionally, it features an adjustable mid-level spreader with a leg range of 7.2” to 12”, providing enhanced stability and adaptability during setups.

Key Features

• Max Payload: 33 lbs / 15kg
• Bowl Size: 100mm
• Height Range: 30.7-65.4” / 78-166cm
• Counterbalance: 0-5
• Pan Drag: Fixed
• Tilt Drag: Fixed
• Field Kit Includes Mid-Level Spreader, Rubber Feet, & Carrying Bag

Technical Specifications

Shipping Weight (lbs)
18
Shipping Dimensions (in)
41 x 9 x 9
What's Included
1 x EI-7100H Fluid Head
1 x GP2 Tripod Plate
1 x GB3 Pan Handle
1 x AT7602A Tripod Legs
1 x GS01 Mid-Level Spreader
3 x F3 Rubber Feet
1 x T10 Carrying Bag
Max Payload
33 lbs
Min Height
30.7” / 78cm
Max Height
65.4” / 166cm
Fluid Head
Max Payload
33 lbs / 15kg
Net Weight
7.7 lbs /3.5 kg
Counterbalance
0-5
Grades of Pan Drag
Fixed
Grades of Tilt Drag
Fixed
Tilt Range
-60° / +90°
Camera Plate
Sliding Plate
Slide Length
100mm
Bowl Size
10mm
Temperature Range
-22 Degrees F / +150 Degrees F |-30 Degrees C / +65 Degrees C
Bubble Level
Yes
Tripod Legs
Payload Range
132.3 lbs / 60kg
Material
Aluminum
Net Weight
10.1 lbs / 4.6kg
Bowl Size
100mm
Height Range
16.9” - 60.8 / 43-154.5cm”
Transport Length
28.1” / 71.5cm
Sections
3
