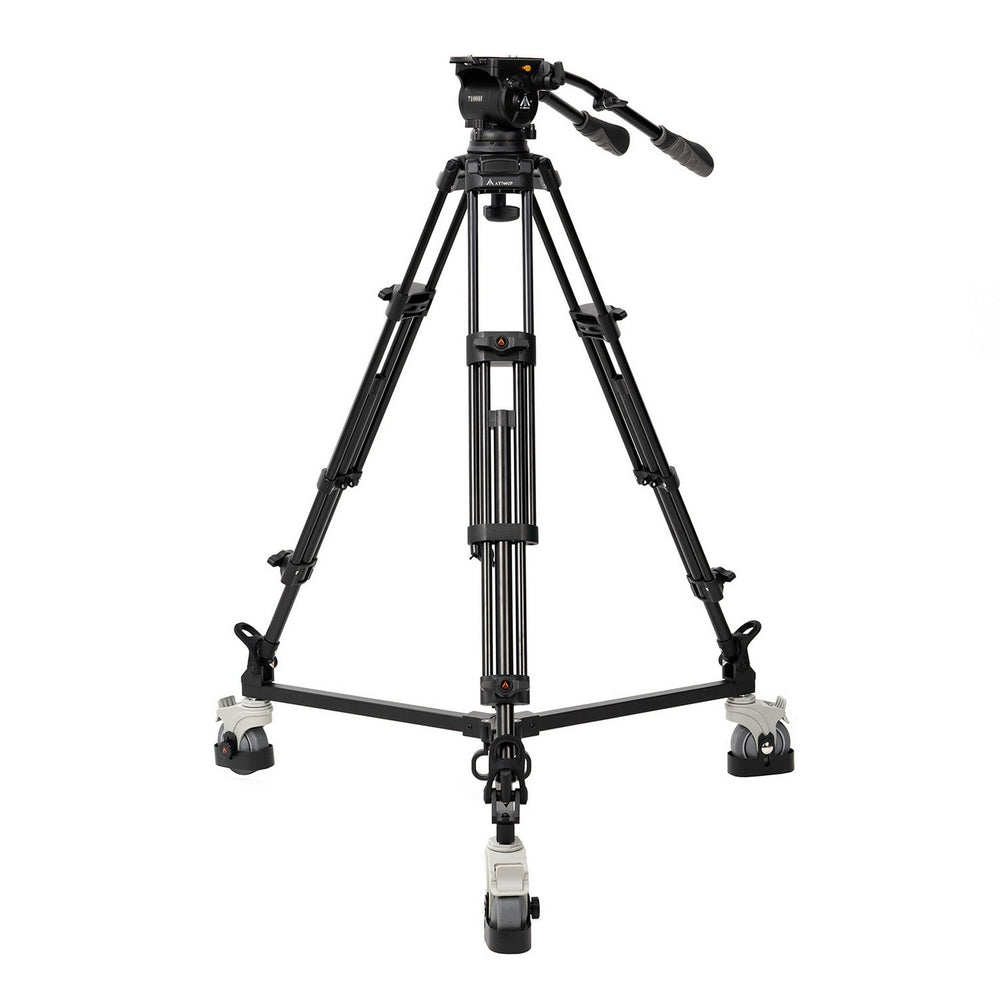

E-Image EI-7100-AAD 2-Stage Aluminum 100mm Fluid Head Tripod Kit with Dolly

FLUID HEAD
The fluid head, designed with a 100mm bowl size, is adept at supporting equipment with a maximum payload of 33 lbs (15kg). It features a slide range of 100mm, allowing for precise positioning and balance adjustments. The counterbalance can be finely tuned within a range of 0-5, ensuring stability and smooth movement during operations. Additionally, the fluid head comes with two extendable panhandles that can be adjusted from 15.9” to 23.8”, offering users flexibility and enhanced control during filming.

HEAVY-DUTY TRIPOD
These tripod legs, constructed from durable aluminum, ensure strength while remaining lightweight with a net weight of 10.1 lbs (4.6kg). Designed with a 100mm bowl size, they can comfortably support equipment with a substantial payload of up to 132.3 lbs (60kg). The legs are versatile in terms of height adjustments, ranging from 16.9” (43cm) to an impressive 60.8” (154.5cm). When it’s time to pack up and move, the tripod legs can be collapsed to a compact transport length of 28.1” (71.5cm). With three sections, they offer flexibility and stability, making them suitable for a variety of shooting environments.

STUDIO SHOOTING
This studio version of this tripod includes a dolly equipped with cable guards, ensuring any cables will be swiftly pushed aside when moving the dolly during studio shoots. This kit also includes an additional pan handle which not only offers users enhanced control and flexibility during their shoots but are also designed to accommodate the mounting of servo controls. This feature allows for precise camera movements and adjustments, making it an invaluable tool for professionals in studio settings.

DOLLY
The EI-7004B dolly features 4” locking rubber wheels with a capacity of 132.3 pounds. This system has a working footprint of 39.4 inches and has height-adjustable cable guards. Each dolly system is easy to fold with its handle and single wingnut for transport in the DB-01 carrying bag (included).

Key Features

• Max Payload: 33 lbs. / 15kg
• Bowl Size: 100mm
• Height Range: 35.2-72.4” / 89.5-184cm
• Counterbalance: 0-5
• Pan Drag: Fixed
• Tilt Drag: Fixed
• Studio Kit Includes Additional Panhandles & Dolly w/ Cable Guards

Technical Specifications

Shipping Weight (lbs)
33
Shipping Dimensions (in)
38 x 18 x 10
What's Included
1 x EI-7100H Fluid Head
1 x GP2 Tripod Plate
2 x GB3 Pan Handle
1 x AT7602A Tripod Legs
1 x EI-7004B Dolly
Max Payload
33 lbs
Min Height
34.2” / 89.5cm
Max Height
72.4” / 184cm
Fluid Head
Max Payload
33 lbs / 15kg
Net Weight
7.7 lbs /3.5 kg
Counterbalance
0-5
Grades of Pan Drag
Fixed
Grades of Tilt Drag
Fixed
Tilt Range
-60° / +90°
Camera Plate
Sliding Plate
Slide Length
100mm
Bowl Size
10mm
Temperature Range
-22 Degrees F / +150 Degrees F |-30 Degrees C / +65 Degrees C
Bubble Level
Yes
Tripod Legs
Payload Range
132.3 lbs / 60kg
Material
Aluminum
Net Weight
10.1 lbs / 4.6kg
Bowl Size
100mm
Height Range
16.9” - 60.8 / 43-154.5cm”
Transport Length
28.1” / 71.5cm
Sections
3
Dolly
Net Weight
15 lbs./6.8 kg
Footprint Diameter
39.4 in./100 cm
Cable Guard Diameter
4.92 in./12 cm
Height
6.7 in./17 cm
Radius
19.7 in./50 cm
Wheel Width
3.9 in./100 mm
Lockable Wheels
Yes
Build Material
Legs: Aluminum | Wheels: Rubber | Screws: Steel
Payload
132.3 lbs./60 kg.
