E-Image EK60AAM Fluid Drag Video Head and Tripod
E-Image EK60AAM Fluid Drag Video Head and Tripod
Free Shipping
E-Image EK60AAM Fluid Drag Video Head and Tripod

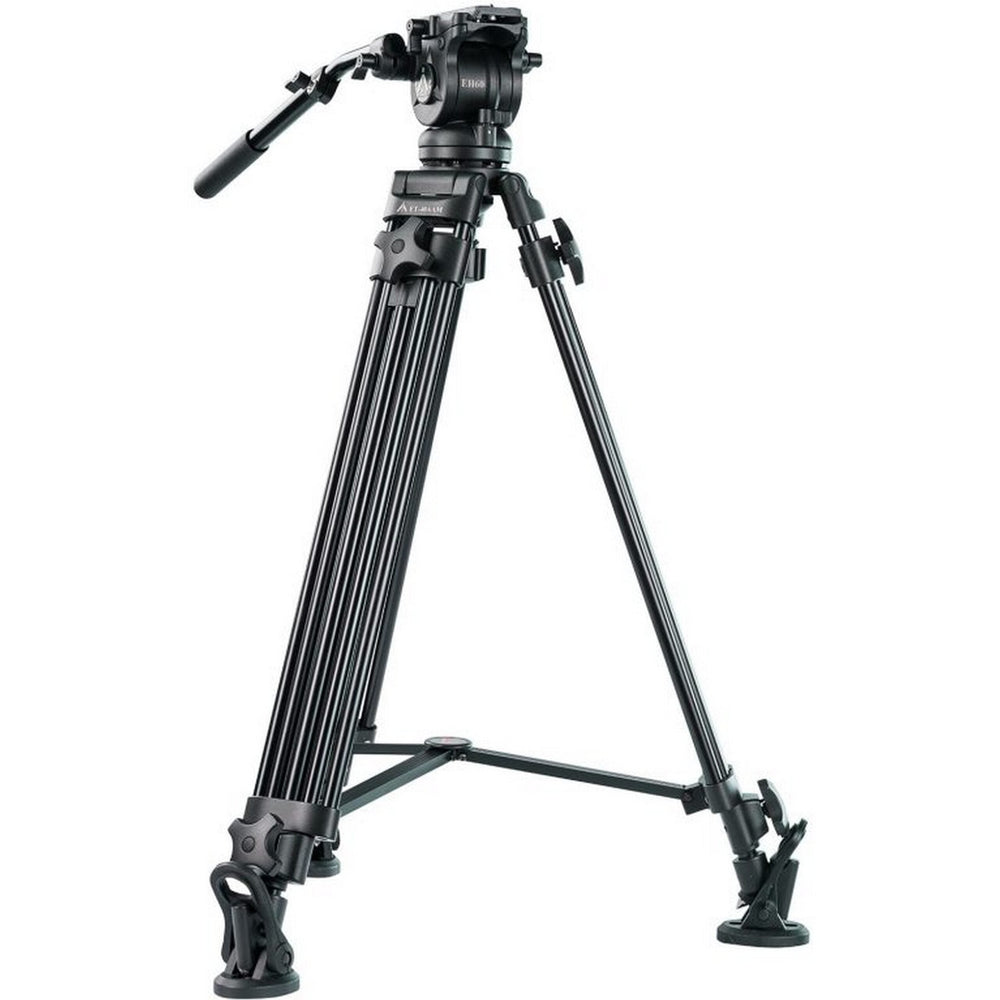

The E-Image EK60AAM Fluid Drag Video Head and Tripod is a video head and dual-stage tripod leg system designed for video cameras and rigs weighing up to 17.6 pounds. The system consists of the EH60 fluid drag head, the AT7402A aluminum tripod legs with fixed mid-level spreader, one HD7060 adjustable panhandle, and a soft bag for carrying the system. The head has fixed pan and tilt fluid drag for smooth camera moves, and a spring-loaded counterbalance system adjustable in three steps
The included sliding balance plate attaches to your camera with either of the included 1/4ā-20 or 3/8ā-16 camera tie-down screws. It then slides into the headās top plate, quickly and securely attaching your camera to the tripod. You can adjust the balance of the camera on the tripod head by sliding the baseplate forward or backward. The sliding balance plate system features a safety release to help prevent the sliding baseplate from accidentally sliding out of the tripod head.
Fluid Head
Fluid Drag
Tilt
Fixed
Pan
Fixed
Spring-Loaded/Three-Stepped Counterbalance
0
0 lb / 0kg
1
6.6 lb / 3kg
2
13.2 lb / 6kg
75mm Claw ball for fast leveling
Bubble level
90 Tilt down-the camera can point straight down
45 Tilt up
360 Panning
Mounting rosettes on the left and right sides
Legs
Built-in fixed spreader
Working height range of 31 to 63ā
Rotary clamp leg locks
Foot spikes
Removable anti-slip pads/foot spike protectors
Integrated leg wrap bungee and clip
Key Features
- 17.6 lb Capacity Fluid Drag Tripod Head
- Sliding Balance Plate with Safety Lock
- Spring-Loaded Counterbalance System
- Fixed Tilt and Pan Drag
Technical Specifications
What's Included
1x E-Image EK60AAM Fluid Drag Video Head and Tripod
1x Quick Release Plate
1x 1/4"-20 Camera Screw
1x 3/8"-16 Camera Screw
1x Pan Handle
1x Travel Soft Case
Bowl Size
75 mm Ball base
Bubble Level
Yes, non-illuminated
Build Material
Anodized aluminum alloy
Collapsed Length
Including Head 32.5" / 82.6 cm
Counterbalance System
Spring-loaded
Fixture Weight
11 lb / 4.9 kg
Height Range
Maximum 63" / 160 cm Minimum 31" / 79 cmIncluding Head 32.5" / 82.6 cm
Leg Lock Type
Rotary clamp
Leg Stages Sections
Two-stage
Mounting Plate
Sliding type 4.7 x 1.9 x 0.4" / 120 x 49 x 10.5 mm
Mounting Points
Camera mounting screw 1/4"-20 3/8"-16
Pan Drag Settings
Fixed fluid
Payload
Overall 17.6 lb / 8 kg
Range
Counterbalance Range
Range
6.6 - 17.6 lb / 3 - 8 kg Three steps (0, 1, 2) | Pan Range 360
Rosette
Pan Handle Rosettes 2 x Rosettes (one each L/R)
Spikedretractable Feet
Non-retractable spikes with removable spike protectors/anti-slip pads
Spreader Type
Mid-Level (non-removable / non-adjustable)
Tilt Drag
Fixed fluid
Tilt Lock
Yes
Tilt Range
+90 to -45
