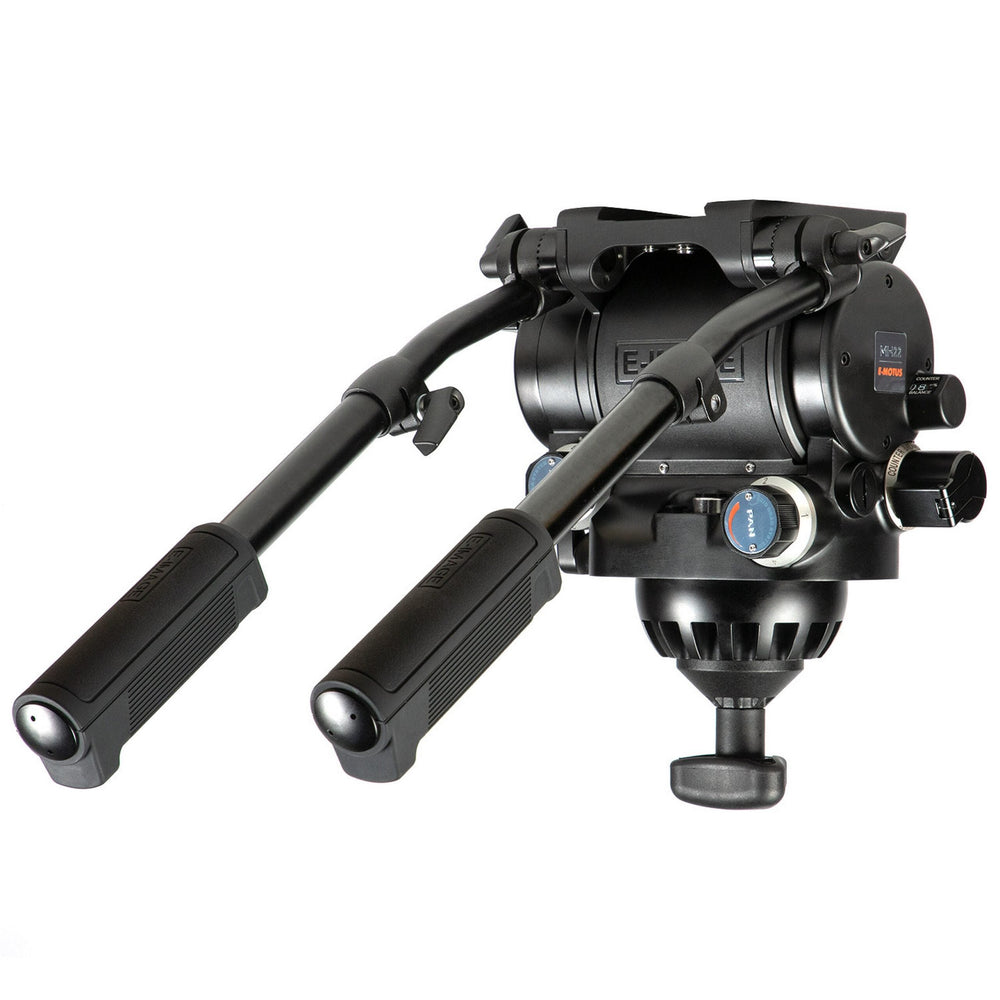

E-Image MH22 100mm Pro Fluid Head with Variable Counter Balance
Introducing the E-Motus line from E-Image. Designed with both broadcast professionals and filmmakers in mind, the MH22 fluid head features a continuous variable counterbalance - giving operators unparalleled adjustment capabilities on the fly for payloads up to an impressive 48.5lbs. Longer and wider than its competitors, the MH22’s double-locking plate ensures that the camera is securely mounted to the sticks quickly and efficiently, snapping into place from the top of the head. This quick release system is a fantastic perk for larger rigs that struggle to move into place with a rear slider.
Key Features
- Payload Range: 48.5lbs / 22Kg
- 1-4 Grades of Drag for Tilt and Pan
- Counterbalance Adjustment: 0-48.5lbs (0-22kg)
- Top Loading Plate
- Dual Locking Quick Release System
- Bowl Size: 100mm Ball
- Sliding Range: 4.7in/ 120mm
- Illuminated Bubble Level
- Ships in Custom Hard Case
- Dual-sided Pan/Tilt Arm Rosette Mounts (Two Arms Included)
- Pan Handle: GB4 Telescopic 16.7-27in (425-610mm)
Technical Specifications
Bowl Size
100mm
Counterbalance System
Variable 0-100%
Fixture Weight
13.9
Head Payload Capacity
48.5 lbs.
Head Type
Fluid
Measurement Range
Sliding Range: 4.7 in.
Mounting Plate
Manfrotto 501
Mounting System
Quick Release
Operating Temperature
-40F ~ +176F
Pan Drag Settings
1-4
Pan Handle Style
GB4 Telescopic 16.7 - 24 in.
Tilt Drag Settings
1-4
Tilt Range
-67 ~ +90
Shipping Weight (lbs)
23
Shipping Dimensions (in)
20 x 18 x 10
What's Included
1x MH22 Fluid Head
1x GP4 Quick Release Plate
1x Bowl Locking Knob
2x GB4 Pan Handle
1x Hard Case
1x User Manual
