E-Image PM-510 Super-Cardioid Directional Professional Shotgun Microphone
E-Image PM-510 Super-Cardioid Directional Professional Shotgun Micr...
Free Shipping

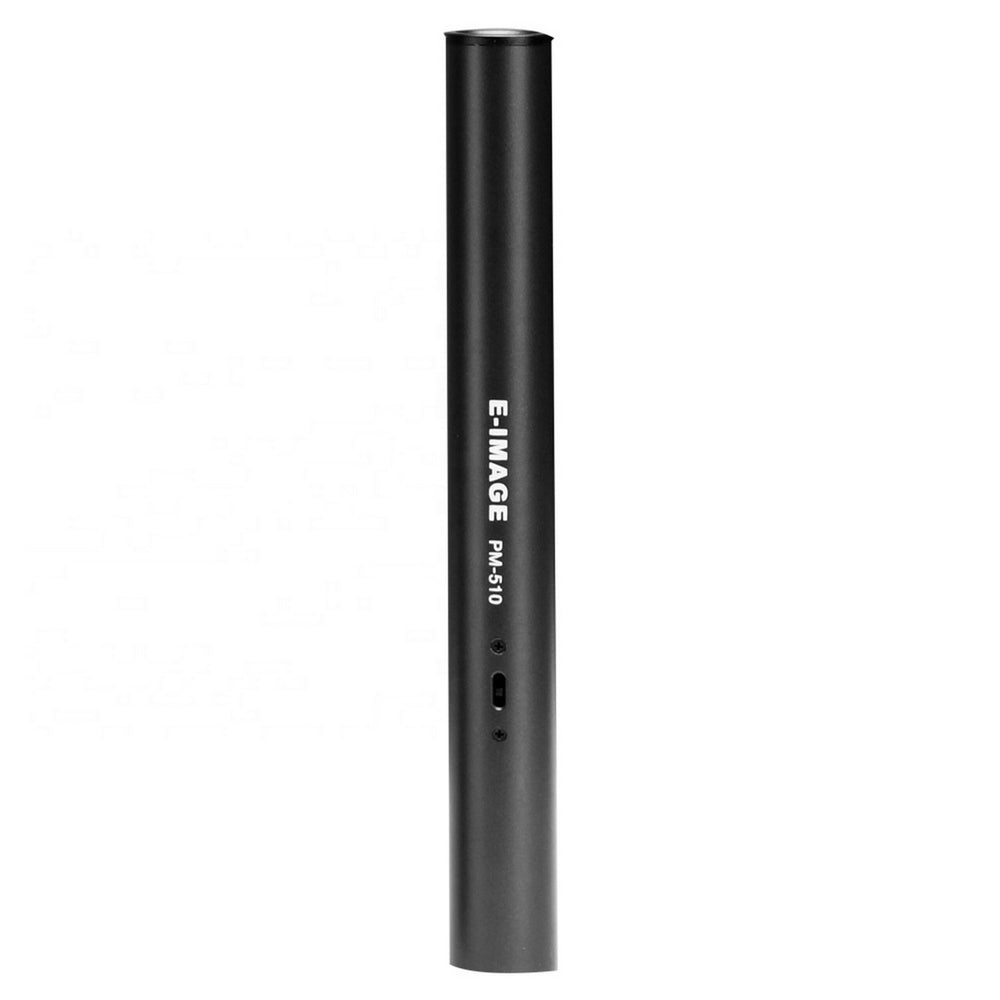

E-Image PM-510 Super-Cardioid Directional Professional Shotgun Microphone
Designed for film, radio, and television, the PM-510 Super-Cardioid Shotgun Microphone from E-image is a short shotgun interference microphone optimized for outdoor recording. It offers excellent directional control in a compact design with a balanced range of frequency response. The PM-510 Super-Cardioid Shotgun Microphone features a super-cardioid polar pattern, a low-noise floor, and an all-metal body.
Key Features
- For Film, Radio, Television
- Super-Cardioid Pattern
- All-Metal Body, Black Finish
- 40Hz-16kHz Frequency Response
- Includes Foam Windscreen
- Built-in low-frequency cutoff switch
Technical Specifications
Audio Output
XLRM XLR Plug
Bass
180Hz 12dB
Dimensions
21-182mm
Element
Back Electret Condenser
Fixture Weight
105g
Frequency Response
40Hz-16kHz
Impedance: Output
500ohms-20% (at 1kHz)
Max Range
Max Input SPL: 130dB (T.H.D?1% at 1kHz)
Open Circuit Sensitivity
-35dB-3dB (1dB=1V/Pa at 1kHz)
Phantom Power Requirements
Phantom: 48V DC, 2mA
Polar Pattern
Super-cardioid
Signal-To-Noise-Ratio
70dB (1KHz at 1Pa)
Switch
Smooth High-Pass Filtering
UPC Code
847983029365
What's Included
1x PM-510 Shotgun microphone
1x 5/8ā-3/8ā base connector
1x Windshield cover
1x Safety box
Shipping Weight (lbs)
2.5
Shipping Dimensions (in)
14 x 6 x 4
