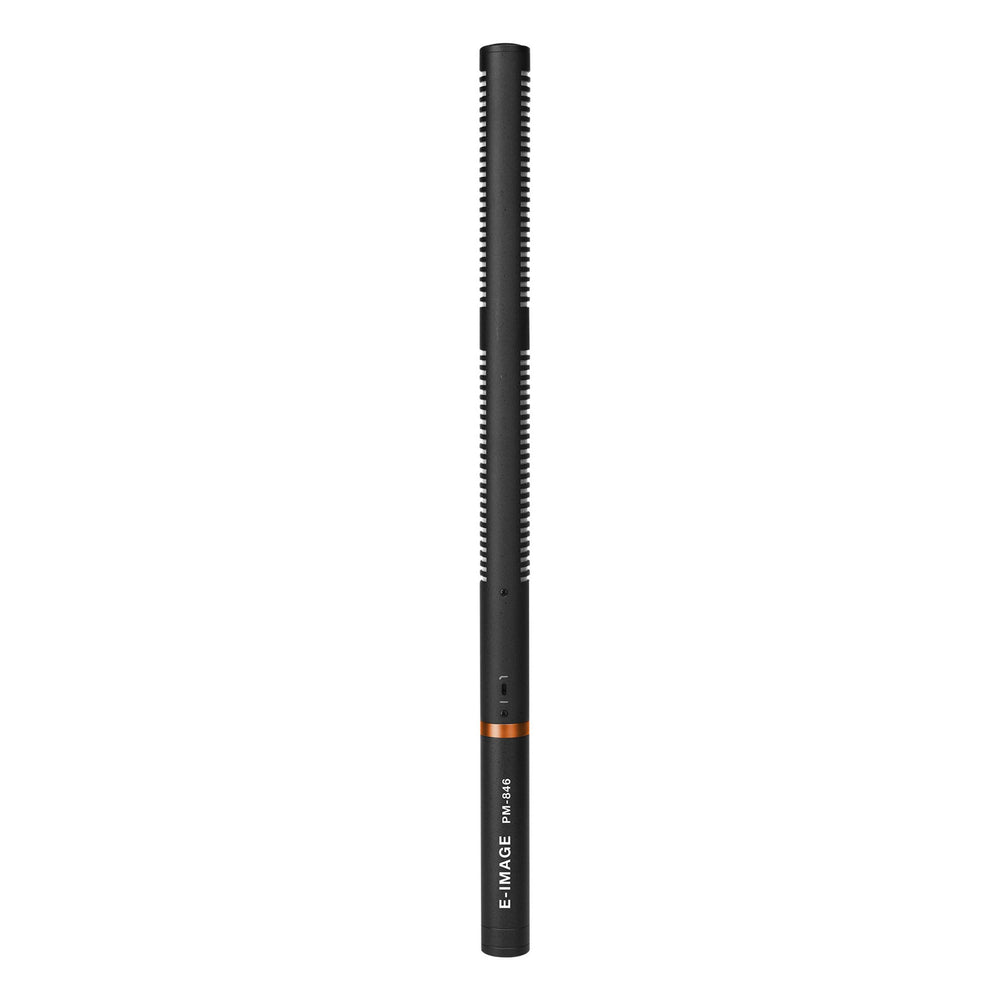

E-Image PM-846 Hyper-Cardioid Shotgun Microphone
E-Image PM-846 Hyper-Cardioid Shotgun Microphone
Free Shipping
E-Image PM-846 Hyper-Cardioid Shotgun Microphone
Designed for film, radio, and television, the PM-846 Hyper-Cardioid Shotgun Microphone from E-image is a short shotgun interference microphone optimized for outdoor recording. It offers excellent directional control in a compact design with a balanced range of frequency response. The PM-846 Hyper-Cardioid Shotgun Microphone features a hyper-cardioid polar pattern, a low-noise floor, and an all-brass body. The PM-846 Hyper-Cardioid Shotgun Microphone from E-image is a lightweight directional shotgun microphone. It can be used to capture audio in various environments for speech and audio applications such as feature film, broadcast TV, or sound for video productions.
Key Features
- For Film, Radio, Television
- Hyper-Cardioid Pattern
- All-Metal Body, Black Finish
- 40Hz-16kHz Frequency Response
- Includes Foam Windscreen
- Built-in low-frequency cutoff switch
Technical Specifications
Audio Output
XLRM
Bass
180Hz 12dB
Dimensions
21-369mm
Element
Back Electret Condenser
Fixture Weight
165g
Frequency Response
40Hz-16kHz
Impedance
Output: 500 OHMS -20% (at 1kHz)
Max. Range
Max Input SPL: 130dB (T.H.D?1% at 1kHz)
Open Circuit Sensitivity
-38dB-3dB (1dB=1V/Pa at 1kHz)
Phantom Power Requirements
Phantom: 48V DC, 2mA | AA/UM3, 2mA
Polar Pattern
Hyper-cardioid
Signal-To-Noise-Ratio
70dB (1KHz at 1Pa)
Switch
Smooth High-Pass Filtering
UPC Code
847983029099
Shipping Weight (lbs)
2
Shipping Dimensions (in)
14 x 8 x 4
What's Included
1x E-Image PM-846 Shotgun Microphone
1x Foam Windscreen
1x Mic Stand Clip with Threaded 3/8” Female Mount
