Eartec EVADE EVXT7 Xtreme Full Duplex Wireless Intercom System with 7 Dual Speaker Headsets

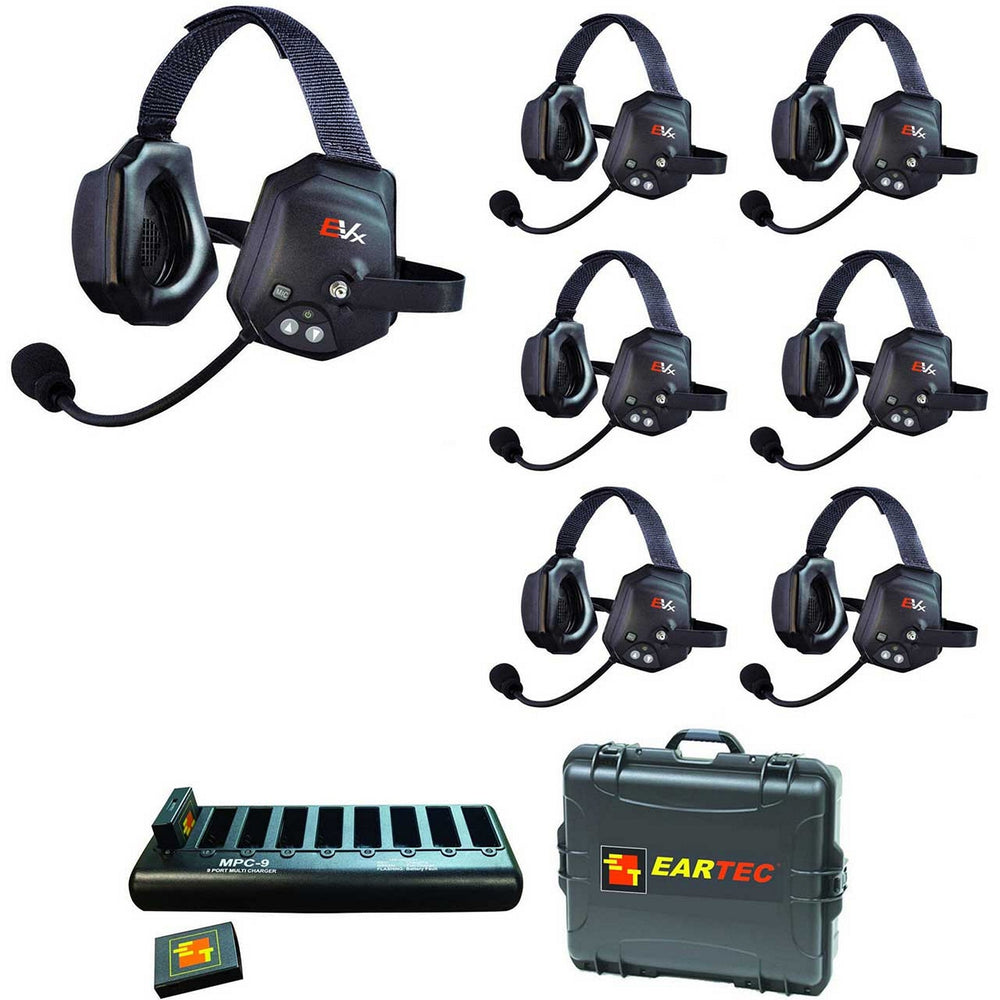

Includes 1- EVADE Xtreme Double-Ear Main Headset 7- EVADE Xtreme Double-Ear Remote Headset 1- 9-Port Charger w/ Adapter 1- Large Hard Case 7 X Lithium-Polymer Batteries

EVADE XTreme are self-contained full-duplex wireless headsets used across a multitude of industrial applications where protective hardhat or bump caps are required. To operate the XTreme simply adjust for the correct amount of holding tension and your safety hat will fit right over as normal. Then simply install the battery turn the headset “ON” and you are ready to communicate with the rest of your crew, simultaneously and hands free within a 1/4 mile range!

As with the Evade Single and Double series, the XTreme feature a miniaturized full duplex radio built inside the earcups eliminating belt packs. The XTreme also include a heptagonal (six-point) earcup that is so unique it has received formal patent protection by the US trademark office. In addition, XTreme ear pads are ergonomically shaped, that means wider and slightly thicker in the lower rear providing the most comfortable fit of any headset on the market.

Evade Xtreme team communication wireless systems are popular communication tools for crane & utility crews as well as avionics and defense contractors that need hands free communication. Wherever workers are required to wear safety equipment Evade Xtreme will come through, “loud and clear”.

Key Features

Excellent performance - Range up to 1/4 mile

Radio installed inside earcup, no wires or beltpacks

Li-Poly Batteries - Provide continuous 8 hr operation and are field replaceable

Auto Mute Boom - Mute when in UP position

Volume Control - Simple up / down push button adjustment

Sealed for use outdoors in inclement conditions

Light Industrial Design - Wear comfortably for an 8 hour work shift

Field Programmable - Start small and add to your system as needed

Technical Specifications

Frequency Range
2407MHz-2475MHz
Data Rate
1MBPS
Bandwidth
150KHz
Channel Spacing
1MHz
Modulation Type
GFSK
Gain of Antenna
0db
Duplexing
Time Division Duplex (TDD)
Speech Encoding
ADPCM/16kbIt's
RF Accessing
Time Division Multiple Access (TDMA)
Power Supply
Rechargeable Li-polymer Battery @ 3.7v/1000mAH
RF Output Power
80mw
Operating Temperature
0 - +50º C
Operating Relative Humidity Range
30% - 90%
Operation Current
110mA
Operation Time
8h
Range
350m (open field)
